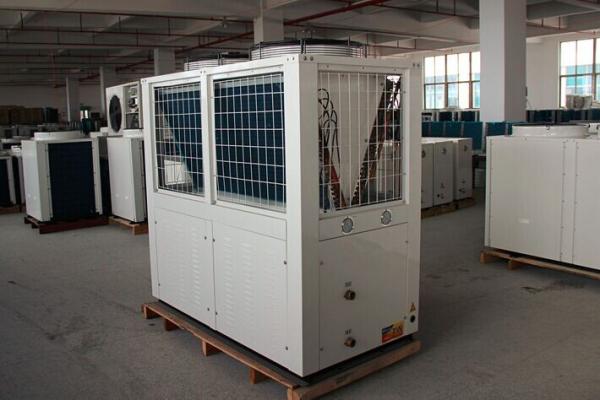

70KW High temperature air source heat pump with 95℃ hot water
70KW High temperature air source heat pump with 95℃ hot water
70KW High temperature air source heat pump with 95℃ hot water
70KW High temperature air source heat pump with 95℃ hot water
Specifications
Place of Origin :
China
Brand Name :
TRT or OEM
Certification :
CE,CB
Model Number :
TRTN100HTASHP
MOQ :
1
Price :
Negotiable
Packaging Details :
plywood
Delivery Time :
15-20 days
Payment Terms :
TT
Supply Ability :
1000 PCS a month
Description

With 95 oC outlet water, TRT High Temperature Water Heaters which adopt EVI compressor are the best choice for your special requirements. These units are energy efficient and environmentally friendly. They are the ideal substitutes for the traditional boilers.

Model NO. TRT-220H-ASHP TRT-360H-ASHP TRT-440H-ASHP
configuration Metal plate Galvanized steel/Spray/Gray or White
Unit Siz (W*D*H) MM 1500*800*1560 1850*1000*1950 2000*1100*2080
Compressor 1 Copeland ZW125KA*1 Copeland ZW72KA*2 Copeland ZW125KA*2
Compressor 2 Copeland VR144KS*1 Copeland VR144KS*2 Copeland VR144KS*2
Refrigerent Special Mixed Gas
Power Supply 380V/50Hz/3Phase 380V/50Hz/3Phase 380V/50Hz/3Phase
Condenser Shell and Tube Shell and Tube Shell and Tube
155HD-090*2 155HD-090*4 155HD-090*4
Liquid Storage Tank together with shell and tube heat exchanger
Gas-liquid separator KFR120WLG-A*1 KFR120WLG-A*1 KFR120WLG-A*2
Four-way Valve SHF-35A-79*1 SHF-35A-79*2 SHF-35A-79*2
Thermostatic expansion valve Danfoss 11 RT Danfoss 6RT *2 Danfoss 11 RT*2
AC contactor 32A*2 25A*2+32A*2 32A*4
Controller Dual system Four system Four system
Low Pressure Switch 0.05/0.15MPa 0.05/0.15MPa 0.05/0.15MPa
High Pressure Switch 2.4/3.0MPa 2.4/3.0MPa 2.4/3.0MPa
Power Line 4*16mm2 4*25mm2 4*35mm2
packing 　
parameter Heating capacity (kW) 35 57 70
Input power(kW) 16.5 27 33
rated current (A) 36 60 72
COP 2.12 2.11 2.12
Rated outlet water Temp(℃) 90 90 90
Max outlet water Temp(℃) 95 95 95
Protection grade IPX4 IPX4 IPX4
Anti-electric shock Rate I I I
Noise(dB(A)) ≤58 ≤58 ≤66
N.W /G.W(kg) 405/415 615/645 710/745
water pipe size (mm) DN32 DN50 DN63
Testing conditon: Dry bulb/ Wet bulb :20℃/ 15 ℃；initial inlet water Temp of 15℃,final outlet water Temp of 90℃
Remarks: The final outlet temperature can be over 90℃ on condition of ambient temperature of above 5℃;The final outlet temperature can be over 95℃ on condition of ambient temperature of above 10℃.

70KW High temperature air source heat pump with 95℃ hot water

70KW High temperature air source heat pump with 95℃ hot water

Description

  1. Environmental friendly and safe

Electric parts and water system is completely cut off, ensuring security water use, no pollution to the atmosphere

and free of greenhouse effect and it is the safest water heater

  1. Wide climatic zone adaptability

Our heat pumps with special designing possess better climatic adaptability, can work from -25℃ to 43℃.

  1. Energy-saving

Heat pump water heater is a high efficient transferring heating equipment which is driven by electricity.

The operating cost is only 1/4 of electric water heater, 1/3 of gas water heater.

  1. Automatic intelligent control system

Adopting intelligent computerized automatic control system, no manual cost, easy to operate, convenient, make

heat pump work safely and reliably.Control panel with modularized unit design can control more flexible heat pumps

packs, with user-friendly operating system interface, easy to operate..

  1. Advanced testing methods

Adopting world-class Enthalpy potential laboratory to test heat pumps, except basic testing items, we also test heat pump

in the ambient of temperature of -30℃ to test our heat pump performance.

  1. Widely used

Heat pump is applied to hot water for household and commercial use like families, schools, hospitals, shower center,

swimming pools, etc. and industrial use like electroplating, drying, etc.

Competitive Advantage:

  1. The application of enhanced vapor injection in high temperature hot water heat pump.
  2. Using larger condenser, double efficiency of condensing, higher heating capacity.
  3. Water temperature keeps at 80℃ constantly when the ambient temperature is 5℃.
  4. Stable inside pressure, the set inside pressure keeps at 2.5mpa when hot water is 75℃,
  5. and the pressure keeps at 2.8mpa when hot water is 80℃.

70KW High temperature air source heat pump with 95℃ hot water

70KW High temperature air source heat pump with 95℃ hot water70KW High temperature air source heat pump with 95℃ hot water

Welcome to visit to our website, if you are interested in our heat pumps, please send us inquiry, we will reply you ASAP.
