OV528 TTL Camera Module CE OV7725 Camera Module For Environmental Monitoring
OV528 TTL Camera Module CE OV7725 Camera Module For Environmental Monitoring
OV528 TTL Camera Module CE OV7725 Camera Module For Environmental Monitoring
OV528 TTL Camera Module CE OV7725 Camera Module For Environmental Monitoring
OV528 TTL Camera Module CE OV7725 Camera Module For Environmental Monitoring
OV528 TTL Camera Module CE OV7725 Camera Module For Environmental Monitoring
Specifications
Brand Name :
Neutral / Customization
Model Number :
CA025M-TTL-3.3V
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen , China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
60000pcs/month
Delivery Time :
6~36 working days
Packaging Details :
Neutral / Customization Giftbox / 16pcs per carton
Model Name :
CA025M-TTL-3.3V
Interface :
TTL
Communication protocol :
OV528
Lens :
F:2.8mm\IR:850nm\FOV:100°
Image sensor :
OV7725 1/4" CMOS Image Sensor
Baud Rate :
9600 to 115200bps
Description

TTL Serial Camera Module OV528 Communication Protocol For Environmental Monitoring Smart Home, Alarm Monitoring

1: TTL OV7725 serial interface Support OV528 Communication Protocol.

2: Limited One-Year Warranty and Lifetime Product Support .

Product Specification:

Model Model Name CA025M-TTL-3.3V
Features Interface TTL
Working Power DC 3.3V
Working Current About 70mA (Standby: 50mA)
Image sensor OV7725 1/4" CMOS Image Sensor
Pixels 0.3 Megapixel
Image Compression JPEG
Baud Rate 9600 to 115200bps
Lens F:2.8mmIR:850nmFOV:100°
Image Resolution VGA(640*480) / QVGA(320*240) / QQVGA(160*120)
Advantage White Balance Automatic
Exposure Automatic
Auto Gain Control Automatic
Working Temperature -10 to 70 degree Celsius
Warranty Limited One-Year Warranty and Lifetime Product Support
Software JPEG Serial Port Camera Test Software Yes
User Manual OV528 Protocol Yes
Communication protocol OV528
Package details Size 38mm*38mm / 32mm*32mm
Gross Weight 0.01KG
Package Included 1 x TTL JPEG Camera Module

Product Advantages:

1: Robot Vision,object detection and recognition.

2: Industial Control System , Automotive System , Medical System etc.

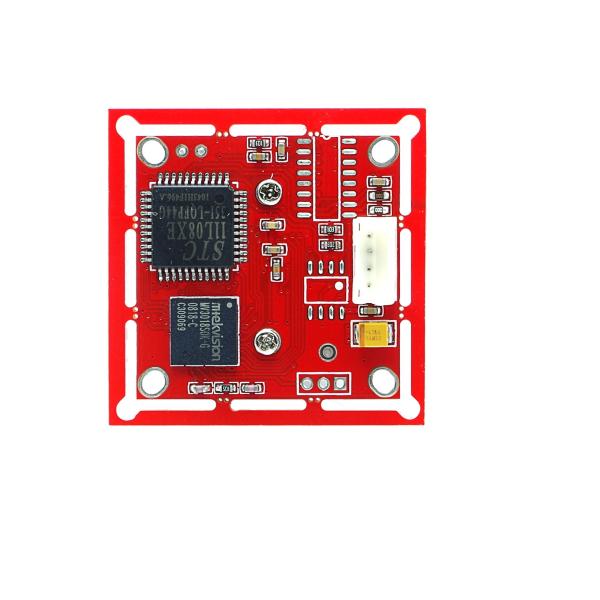

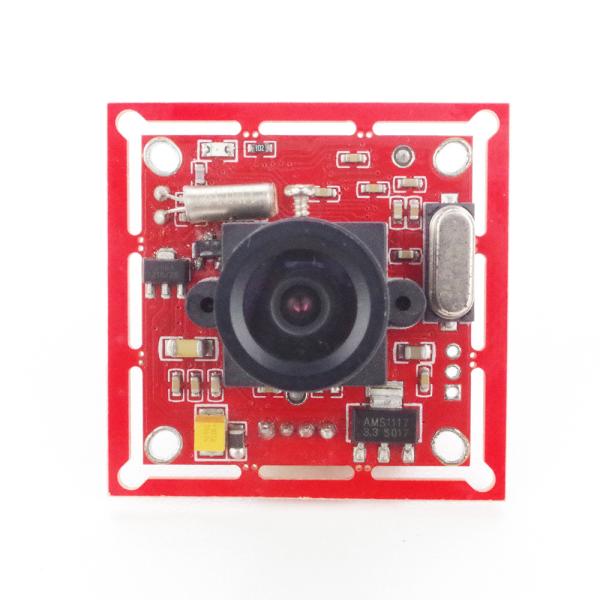

Product picture:

OV528 TTL Camera Module CE OV7725 Camera Module For Environmental Monitoring

FAQ:

OV528 TTL Camera Module CE OV7725 Camera Module For Environmental Monitoring
