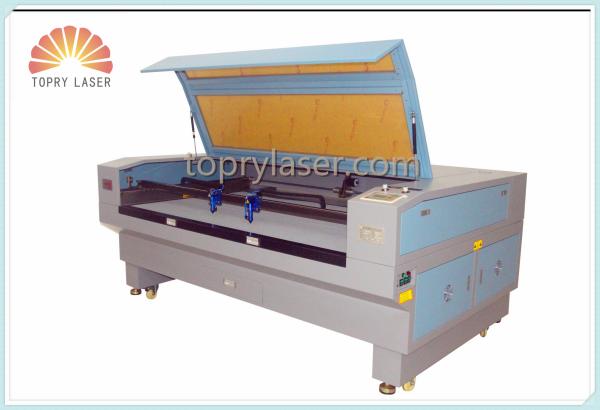

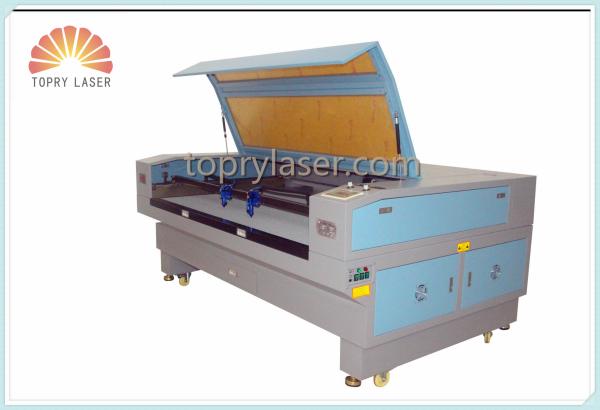

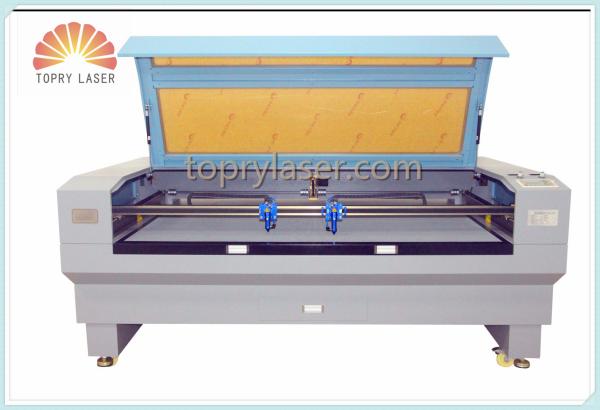

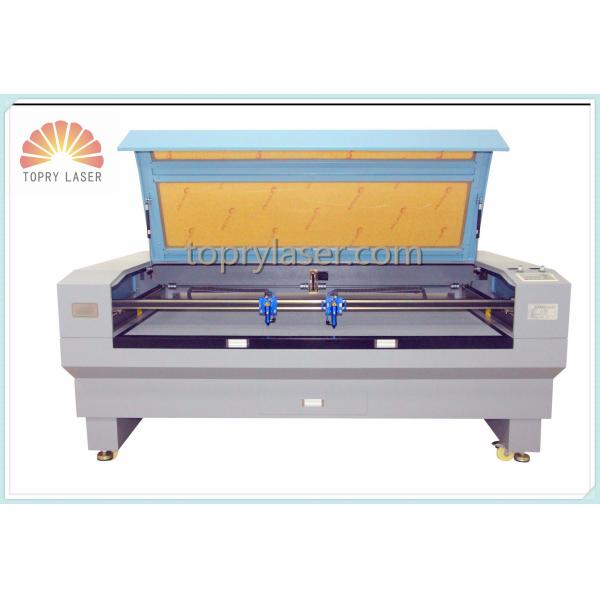

Plastic Acrylic CO2 Double Heads Laser Cutting And Engraving Machine(TRJM1480T)
Plastic Acrylic CO2 Double Heads Laser Cutting And Engraving Machine(TRJM1480T)
Plastic Acrylic CO2 Double Heads Laser Cutting And Engraving Machine(TRJM1480T)
Plastic Acrylic CO2 Double Heads Laser Cutting And Engraving Machine(TRJM1480T)
Plastic Acrylic CO2 Double Heads Laser Cutting And Engraving Machine(TRJM1480T)
Plastic Acrylic CO2 Double Heads Laser Cutting And Engraving Machine(TRJM1480T)
Plastic Acrylic CO2 Double Heads Laser Cutting And Engraving Machine(TRJM1480T)
Plastic Acrylic CO2 Double Heads Laser Cutting And Engraving Machine(TRJM1480T)
Specifications
Place of Origin :
China
Brand Name :
Topry
Model Number :
JM
Packaging Details :
Based on the export standard
Delivery Time :
7 Working Days
Payment Terms :
T/T, Western Union
MOQ :
1 Unit
Certification :
CE
Price :
USD
Supply Ability :
100 Per Month
MOQ :
1 Unit
Packaging :
Standard export wooden crate which is suitable for ocean transport
Applicable Material :
Acrylic, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood, bamboo
Cutting Area :
1400*800mm
Control Software :
DSP
Compatible Graphic Format :
AI, PLT, DXF, BMP, DST, DXP
Laser source :
CO2 glass laser tube
Driving system :
Stepping Motor
Guide rail :
Linear guide rail from Taiwan
Description

Plastic Acrylic CO2 Double Heads Laser Cutting And Engraving Machine (TRJM-1480T)


Product Features
Two laser heads working at the same time double enhances the working efficiency, adopted imported high precision spare parts, stable and reliable DSP control system, simple and convenient interface, stable motion drive system with superior performance, high precision moving rails, all these lead to the features of high efficiency, energy conservation, stability and convenience during working.
Applicable Industry
Garment, leather, cloth toys, embroidery patch cutting, arts and crafts, advertising, decoration, packaging print and so on.

With the configuration of the double head laser machine, which can minimize cost and maximize output at the same time, the machine's functions are easily achieved with the following units:
Stepper motor and driver;
64 bits DSP chip and automatic off-line control system;
Six balanced straight-line guide rail;
Laser lens imported from Singapore;
Chinese-English LCD manifestation mold;
Cooling system with constant temperature.


Applicable Materials
Cloth, wool, leather, paper, plastic, rubber, PVC plate, wood, plexiglass, epoxy resin, acrylic, crystal, tile and so on.


Technical Specification

Laser power Two pcs of 80W laser tubes
Laser type Hermetic and detached CO2 domestic laser tube
Operating voltage AC220V(or 110V)±10% 50Hz/60Hz
Maximum cutting speed 0-36000mm/min
Repeat position accuracy 0.01mm
Minimum character English letter: 1*1mm
Operating temperature range 5-45℃
Resolution ≤4500dpi
Control mode DSP
Transfer mode By USB port or U flash disk
Laser tube service life 3500 hours based on 8 working hours per day
Software environment Windows 2000/XP/Win7
Cooling type Air cooling system
Acceptable graphic format BMP, PLT, DST, AI, DXF, GIF, JPG, PCX, TGA, TIFF, etc.
Acceptable software Self software/ CorelDraw/ AutoCAD
Cutting depth 0-30mm(depending on materials)
Slope engraving Yes
Packing type Wooden case suitable for ocean transport

Plastic Acrylic CO2 Double Heads Laser Cutting And Engraving Machine(TRJM1480T)

Plastic Acrylic CO2 Double Heads Laser Cutting And Engraving Machine(TRJM1480T)
