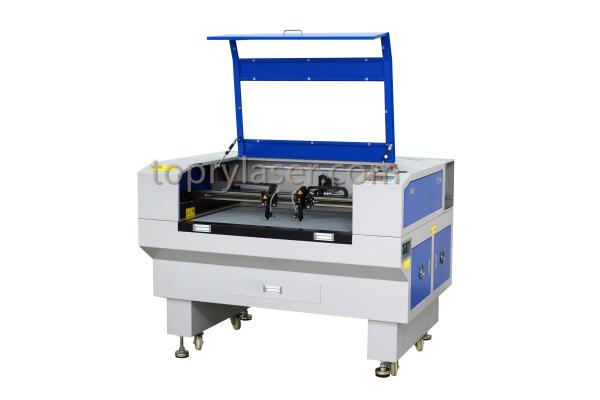

Plastic Acrylic CO2 Double Heads Laser Cutting And Engraving Machine(JM1280T)
Plastic Acrylic CO2 Double Heads Laser Cutting And Engraving Machine(JM1280T)
Specifications
Place of Origin :
China
Brand Name :
TOPRY
Model Number :
JM1280T
Packaging Details :
Based on the export standard
Delivery Time :
7 Working Days
Payment Terms :
T/T, Western Union
MOQ :
1 Unit
Certification :
CE, FDA
Price :
USD Per Month
Supply Ability :
30 Units Per Month
MOQ :
1 Unit
Supply Capacity :
30 sets per month
Packaging :
Exported wooden crate
Laser Type :
CO2
Applicable Material :
Acrylic, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber,Wood, bamboo
Cutting Thickness :
Depends on material
Working Area :
1200*800
CNC :
Yes
Cooling Mode :
Water Cooling
Control Software :
DSP
Compatible Graphic Format :
AI, PLT, DXF, BMP, DST, DXP
Laser source :
CO2 glass laser tube
Driving system :
Stepping motor
Laser wavelength :
10640nm
Optical lens :
Made In China
Guide rail :
Linear guide rail from Taiwan
After-sales Service :
Yes
Description

Plastic Acrylic CO2 Double Heads Laser Cutting And Engraving Machine(JM1280T)

Product Features
Two laser heads working at the same time double enhances the working efficiency, adopted imported high precision spare parts, stable and reliable DSP control system, simple and convenient interface, stable motion drive system with superior performance, high precision moving rails, all these lead to the features of high efficiency, energy conservation, stability and convenience during working.
Applicable Industry
Garment, leather, cloth toys, embroidery patch cutting, arts and crafts, advertising, decoration, packaging print and so on.


Applicable Materials
Cloth, wool, leather, paper, plastic, rubber, PVC plate, wood, plexiglass, epoxy resin, acrylic, crystal, tile and so on.


Technical Parameter

Model JM1280T
Laser tube type Hermetic and detached CO2 domestic laser tube
Cutting area 1200mm*800mm
Driving system Stepping motor
Data transfer mode Computer; USB flash disk, Internet
Maximum Memory 128M
Laser-Power 80W
Laser head Double laser heads
Cooling method Water cooling(with laser tube protection system)
Engraving speed 0-64000mm/min
Cutting speed max 0-36000mm/min
Location precision <0.01mm
Support file PLT,DST,DXF,AI,DWG,BMP,CAD,CAM,CDR and so on
Working temperature 0-45ºC
Working humidity 5%-95%
Power supply 220V,50-60Hz,10AMax
N.Weight 420kg

Plastic Acrylic CO2 Double Heads Laser Cutting And Engraving Machine(JM1280T)
