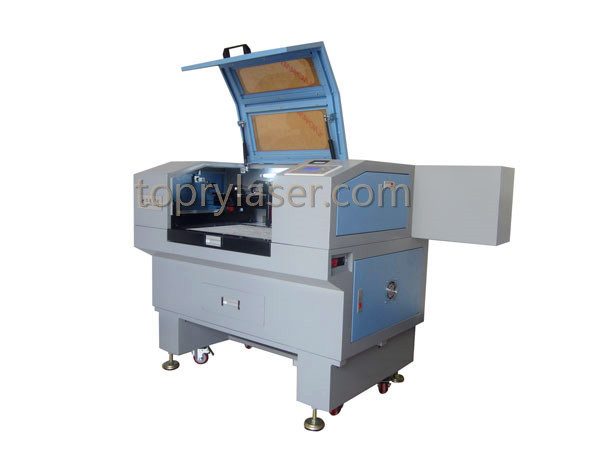

Suitcase Leather Laser Engraving Cutting Machine (TRJM750)

Perfect technique, high cutting precision and speed are the major features for this machine. DSP high speed processing technique realizes operation without computer control. With USB flash data reader and save function, meanwhile the system can save and memorize data automatically; The laser power and cutting speed are adjustable, with multiple route optimization function, stable and reliable working performance, this machine is the first choice for non-metal material processing.

Applicable Industry
Garment, leather, cloth toys, embroidery patch cutting, arts and crafts, advertising, decoration, packaging print and so on.

Applicable Materials
Cloth, wool, leather, paper, plastic, rubber, PVC plate, wood, plexiglass, epoxy resin, acrylic, crystal, tile and so on.

Technical Parameter

Model: TRJM750
Laser tube type: Hermetic and detached CO2 domestic laser tube
Cutting area: 700mm*500mm
Driving system: Stepping motor
Data transfer mode: Computer; USB flash disk, Internet
Maximum Memory: 128M
Laser-Power: 70W/80W
Laser head: Single laser head (30mm up & down adjustable)
Cooling method: Water cooling (with laser tube protection system)
Engraving speed: 0-64000mm/min
Cutting speed max: 0-36000mm/min
Location precision: <0.01mm
Support file: PLT,DST,DXF,AI,DWG,BMP,CAD,CAM,CDR and so on
Working temperature: 0-45ºC
Working humidity: 5%-95%
Power supply: 220V,50-60Hz,10AMax

One 60W or 80W laser tube
A set of mirrors (a laser focus lens and three laser mirrors installed)
A CW3000 water chiller for laser
A honeycomb work table
An air pump and air tube for blowing
A laser control unit
An air-sucking system
A USB cable
A software CD
A user manual and a demo CD
A toolbox
