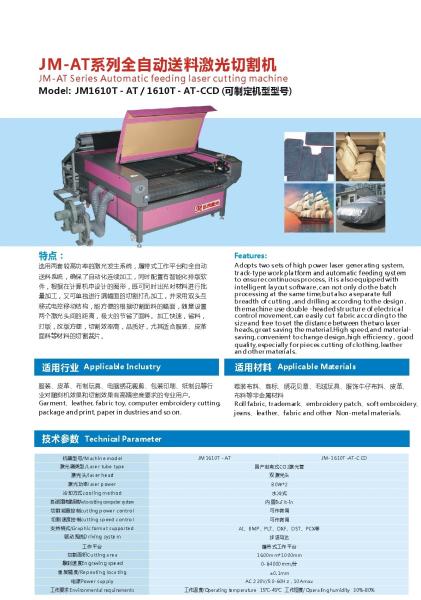

Auto Roll Fabric Leather Material Feeding Laser Cutting Machine(JM1610T-AT)

Product Features

This machine is the perfect integration of laser technique, automation technique, automatic intelligent image identification. Adopted the best image identification system in the world, it can capture, track and locate the trademark brim, cutting outline automatically, continuously automatic moving capture, and automatic cutting running meet the produce requirement of high standard, high precision and proficiency at maximum extent. It is the best choice of the embroidery label, computerized woven, printed cloth and non-metallic laser cutting industries and laser processing industries.

Intelligent system can recognize and cut different designs at same time.
Advanced software system, easy and simple design setting, setting once for permanent usage.
High precise cutting, guarantees high quality products which increase product value and competition.
Easy and convenient operation system, which can be handled by anybody, this is a cost saving for enterprises.

Applicable Industry
Computerized embroidery label, computerized embroidery badge, computerized woven, Trademark, printed cloth, garment, leather, cloth toys. And so on.

Applicable Materials
Cloth, wool, leather, paper, plastic, rubber, PVC plate, wood, plexiglass, epoxy resin, acrylic, crystal, tile and so on.

Technical Parameter
Model:JM1610T-AT
Laser tube type: Hermetic and detached CO2 domestic laser tube/USA imported RF laser tube
Cutting area: 1600mm*1000mm
Laser head: Dual laser head (30mm up & down adjustable)
Laser- power: 80*2W
Driving system: Stepping motor
Photo way: Continuous automatic moving capture
Data transfer mode: Computer
Cooling method: Water cooling (with laser tube protection system)
Engraving speed: 0-64000mm/min
Cutting speed max: 0-36000mm/min
Location precision: <0.01mm
Support file: PLT,DST,DXF,AI,DWG,BMP,CAD,CAM,CDR and so on
Working temperature: 0-45ºC
Working humidity: 5%-95%
Cutting power control: Fine turning possible
Power supply: 220V,50-60Hz,10AMax
