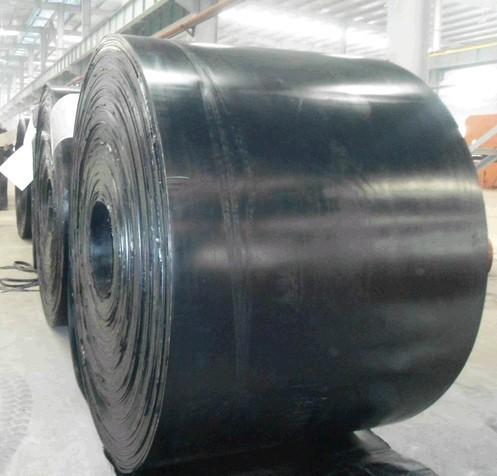

Heat resistance EP200 rubber conveyor belt suitable for conveying hot material like powder or clump materials at hig
Heat resistance EP200 rubber conveyor belt suitable for conveying hot material like powder or clump materials at hig
Heat resistance EP200 rubber conveyor belt suitable for conveying hot material like powder or clump materials at hig
Heat resistance EP200 rubber conveyor belt suitable for conveying hot material like powder or clump materials at hig
Heat resistance EP200 rubber conveyor belt suitable for conveying hot material like powder or clump materials at hig
Heat resistance EP200 rubber conveyor belt suitable for conveying hot material like powder or clump materials at hig
Specifications
MOQ :
100
Price :
23-30
Payment Terms :
T/T
Supply Ability :
30000m/month
Delivery Time :
7-14 days
Packaging Details :
200 m per roll or customized request
Brand Name :
Toptempo
Model Number :
EP800/4(6+2)*1600
Place of Origin :
Qingdao,China
Material :
rubber
Conveyor belt thickness :
4-20mm
Belt width :
400-2200mm
Cover rubber grade :
DIN 22102 RMA,AS1332,etc...
Tensile strength :
15-25Mpa
Description

Product features: Heat resistant EP conveyor belt

  • The general fabric conveyor belt is made of EP, NN or Cotton fabric and finished through the processes of calendering, firming and vulcanizing, etc.

  • It is suitable for conveying in normal temperature various non-corrosive pointless lumps, granular or powders such as coal, coke, sand and cement in bulk or packaged.

  • We could offer belt with cover grade in accordance to International standard such as DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.

Standards

Cover Rubber

Adhesion

Tensile Strength

Elongation at break

Abrasion

Cover to Ply

Cover to Ply

Ply to Ply

DIN 22102

Mpa

%

mm3

N/mm
(≤1.5mm)

N/mm
(>1.5mm)

N/mm

DIN 22102-Z

15

350

250

3.5

4.5

5

DIN 22102-W

18

400

90

3.5

4.5

5

DIN 22102-Y

20

400

150

3.5

4.5

5

DIN 22102-X

25

450

120

3.5

4.5

5

Standards

Cover Rubber

Adhesion

Tensile Strength

Elongation at break

Abrasion

Cover to Ply

Cover to Ply

Ply to Ply

AS 1332

Mpa

%

mm3

N/mm
(≤1.9mm)

N/mm
(>1.9mm)

N/mm

AS 1332-N

17

400

200

4

4.8

6

AS 1332-M

24

450

125

4

4.8

6

AS 1332-E

14

300

4

4.8

6

AS 1332-A

17

400

70

4

4.8

6

Standards

Cover Rubber

Adhesion

Tensile Strength

Elongation at break

Abrasion

Cover to Ply

Cover to Ply

Ply to Ply

RMA

Mpa

%

mm3

N/mm
(≤1.6mm)

N/mm
(>1.6mm)

N/mm

RMA-I

17

400

3

4.4

4

RMA-II

14

400

3

4.4

4

EP conveyor belt:

· Polyester conveyor belt, also called EP or PN conveyor belt, whose tension resistant body is canvas woven by polyester in warp and polyamide in weft.

· The belt has the characteristics of low elongation in warp and good trough ability in weft, good water resistance, good wet strength, suitable for medium, long distance and heavy-load transportation of materials.

· Because of the high initial modulus of polyester, the belts can choose a relative low safety factor.

Heat resistance EP200 rubber conveyor belt suitable for conveying hot material like powder or clump materials at hig

Specification Availability:

Carcass

Fabric structure

Type

No. of plies

Cover thickness
(mm)

Belt width
(mm)

Warp

Weft

Top

Bottom

EP

Polyester

Nylon-66

EP80

2-6

3.0-18.0

1.5-10.0

300-5000

EP100

EP125

EP150

EP200

EP250

EP300

EP350

EP400

EP500

  • Heat resistant conveyor belt can be divided into three types according to working temperature range: HRT-1 =100°C, HRT-2=125°C, HRT-3=150°C.

Physical property indexes

Item Type
1 2 3
Range
Hardness Difference before and after aging (IRHD) 20 ±20
Maximum value after aging (IRHD) 85
Tensile Strength Change rate of property % ≤ 25 30 40
Minimum value after aging /Mpa 12 10 5
Breaking Elongation Change rate of property % ≤ 50 55
Minimum value after aging % 200 180
