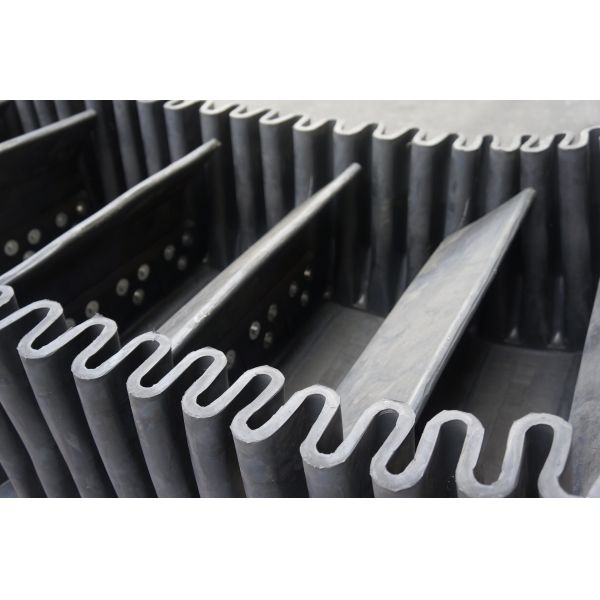

Corrugated Sidewall Conveyor Belt 90 degree vertical lifting hign abrasion Base belt ST1600 sidewall S400 Cleat TC360

Specifications

Brand Name :

Toptempo

Model Number :

S400/TC360

Place of Origin :

Qingdao,China

MOQ :

50 METERS

Price :

600.00 USD -900.00 USD PER METER

Payment Terms :

T/T

Supply Ability :

1000 METERS PER MONTH

Delivery Time :

7-14 Days

Packaging Details :

Wrapped by steel frame

Type :

Corrugated Sidewall Rubber Conveyor Belt

Material :

Rubber

Base Belt :

B1400mm ST1600 dia5.0mm 6+6 mm

Sidewall Height :

S400

Cleat Height :

TC360

Description

Corrugated Sidewall Conveyor Belt

Name: Corrugated Sidewall Conveyor Belt 90 degree vertical lifting hign abrasion Base belt ST1600 sidewall S400 Cleat TC360
Brand: Toptempo
Price: 600.00 USD

Description:
Sidewall conveyor belt can be used for horizontal, sloping or vertical conveyance, it is one of the most effective ways of elevating materials in a confined space, the economy is achieved by single belt operation, wide range material can be handled, less space and requirement, no transfer
point, low maintenance and big capacity.

Corrugated Sidewall Conveyor Belt 90 degree vertical lifting hign abrasion Base belt ST1600 sidewall S400 Cleat TC360

It is based on the following main components:

1. Cross-Stabilized Base Belts
2. Sidewalls
3. Cleats

Sidewall Type

Corrugated Sidewall Conveyor Belt 90 degree vertical lifting hign abrasion Base belt ST1600 sidewall S400 Cleat TC360

Cleat Type

Corrugated Sidewall Conveyor Belt 90 degree vertical lifting hign abrasion Base belt ST1600 sidewall S400 Cleat TC360

Base belt tyoe	strength(N/mm)	Coveyor thickness(mm)	Weight(kg/㎡)	Min pultey diameter(mm)
XE	250/2	2:2	9.40	200
	400/3	4:2	13.50	315
	500/3	4:2	13.75	400
	630/4	4:2	15.20	500
	800/5	4:2	16.85	630
XE+2	400/3+2	4:2	12.10	315
	500/3+2	4:2	12.60	400
	630/4+2	4:2	14.40	500
	800/5+2	4:2	16.10	630
	1000/5+2	4:2	17.80	800
	1250/5+2	4:2	18.25	1000
XE-SC+2	315/2+2	4:2	13.70	315
	400/3+2	4:2	14.50	315
	500/3+2	4:2	15.20	400
	630/4+2	4:2	16.70	500
	800/5+2	4:2	18.00	630
	1000/5+2	4:2	19.50	800
	1250/5+2	4:2	21.40	1000
XST-SC	1600	8:8	Please Inquire	1250
	2000	8:8		1250
	2500	8:8		1400
	3150	8:8		1400
	3500	8:8		1600
	4500	8:8		1600

Corrugated Sidewall Conveyor Belt 90 degree vertical lifting hign abrasion Base belt ST1600 sidewall S400 Cleat TC360
