Construction Fence Panels OD32mm with 1.5mm wall thick Mesh Diameter 3.2mm mesh 60mmx150mm Pre-galvanised 100 gram/sqm

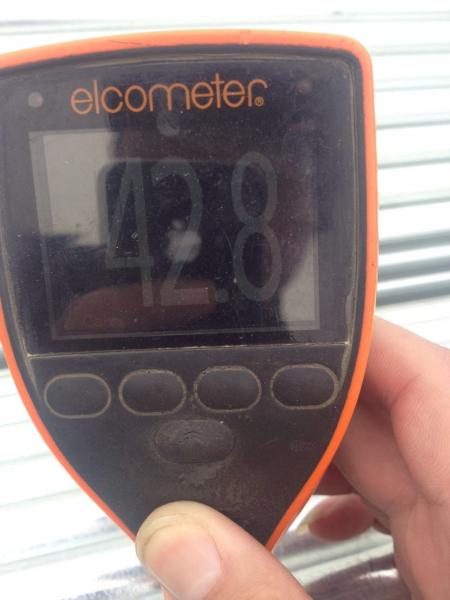

Top Fence co are familar with australia and New Zealand through 11 years experience acummulated take this advantage we are always give right solutions of temporary fencing ,when there are customers ask us what is exactly service life you fencing panels ,actually this is very hard questions to answers cause in climates anything is possible but yes ,we can say what is good products and if no force majeure effections and most cost performance one as a elder temporary fencing company we recommend 42 microns temporary fencing panels ,42 microns is standard thickness of hot dipped galvanized which was widely acceptance by australia and new zealand equal to 300gram/sqm zinc but due to recently there are lots of temp fencing hire or rental companies bloom in australia building industry lots of temporary fencing panels was hire buy 42 microns temporary obiviously will lead to a cashflow issue so more and more these companies revert to 14 microns temp fencing but again 42 microns temp fencing is good product costefficient products in all market even it is a little bit expensive than 14 microns .In theroy the 14 microns service life is 3 years so 42 microns 3 times ability of anti corrosion so let us say half 5 years

Different specifications are available according to your needs

2) Popular sizes of australia temporary construction fence:

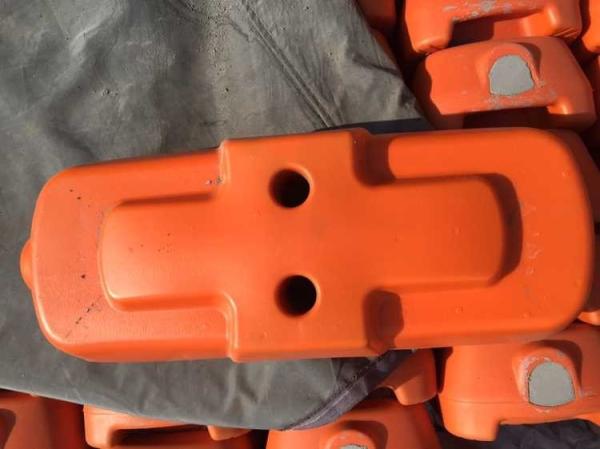

Plastic/Concrete Fence Feet

Our Plastic/Concrete Fence Feet are a high quality, heavy duty, long life product.

Your Temporary Fence will look great and be safer with these high visibility coloured feet. They are easier to see which makes them safer as they are less likely to be a tripping hazard for the public.

Blow molding Base Version HDPE materials						Suit Pipes
Size	600 x 228 x 150mm	Size	620 x 230 x 130mm	Size	600 x 228mm x 150mm	OD 32mm OD 38mm OD 40mm OD 42mm OD 48mm
Materials	HDPE	Materials	HDPE	Materials	HDPE
Finish	UV 3 -UV5	Finish	UV3-UV5	Finish	UV3-UV5
Colors	Orange, Green ,Yellow etc	Colors	Orange, Green ,Yellow etc	Colors	Orange ,Green ,Yellow etc
Weight	After filled 27kg-29kg	Weight	After filled 27kg-28kg	Weight	29kg
Design	Australia	Design	Australia	Design	Australia
Clamp	100mm center to center	Clamp	90mm center to center	Clamp	80mm

Blow molding Base Version HDPE materials						Suits pipes
Size	615mm x 230mm x 100mm	Size	620 x 230 x 130mm	Size	600 x 220mm x 150mm	OD 32mm OD 38mm OD 40mm OD 42mm OD 48mm
Materials	HDPE	Materials	HDPE	Materials	HDPE
Finish	UV 3 -UV5	Finish	UV3-UV5	Finish	UV3-UV5
Colors	Orange, Green ,Yellow etc	Colors	Orange, Green ,Yellow etc	Colors	Orange ,Green ,Yellow etc
Weight	After filled 27kg	Weight	After filled 27kg-28kg	Weight	29kg
Design	Australia	Design	Australia	Design	Australia
Clamp	100mm center to center	Clamp	100mm center to center	Clamp	100mm

	Temporary Fencing Block -Blow Molding fill Water		Suit pipes
	Materials	High density poly-ethylene (HDPE)	OD 32mm OD 38mm OD 40mm OD 42mm OD 48mm
	Color	Green ,Yellow ,Black
	Weight	26kg after filled warer
	Packing	Stacking together as pallet
	Treatment	UV 3 ,UV 4 UV 5
	Size of foot	600 x 220 x130mm
	Packing	Metal pallet

	Temporary Fencing Block --Recycled Rubber Foot		Suit pipes
	Materials	Recycled rubber foot	OD 32mm OD 38mm OD 40mm OD 42mm OD 48mm
	Color	Green ,Yellow ,Black
	Weight	19KG
	Packing	Stacking together as pallet
	Treatment	Oil painted
	Size of foot	767 x 192 x 126mm
	Packing	Metal pallet

	Temporary Fencing Block - Injection Molding foot		Suit pipes
	Materials	High density poly-ethylene (HDPE)	OD 32mm OD 38mm OD 40mm OD 42mm OD 48mm
	Color	Green ,Yellow ,Black
	Weight	30kg
	Packing	Stacking together as pallet
	Treatment	UV 3 ,UV 4 UV 5
	Size of foot	560 x 245 x 130mm
	Packing	Metal pallet

4. Temporary Fence Clamps

High quality Temporary Fence Clamps used to secure the panels together.

Hot Dipped Galvanised to Australian Standard - 42 Microns.

Specially moulded and 4mm thick for additional strength.

Temporary Fencing Clamp-100TYPE
	Thickness	4.00mm
	Center distance	100mm ( pipes center to center) /OVERALL LENGTH120MM
	Technical	Punched
	Materials	Q195 Q235 steel
	Design	Australia
	Made Country	China
	Treatment	14 microns ,42 microns hot dipped galvanized electrostatic powder coated
	Application	Secured Temporary Fence panels ,and Bracket ,Stay ,Gate
	Weight	0.45kg /set 2 pairs included big caps bolt and nuts

Temporary Fencing Clamp-90TYPE
	Thickness	4.00mm
	Center distance	90mm ( pipes center to center) /OVERALL LENGTH 110MM
	Technical	Punched
	Materials	Q195 Q235 steel
	Design	Australia
	Made Country	China
	Treatment	14 microns ,42 microns hot dipped galvanized electrostatic powder coated
	Application	Secured Temporary Fence panels ,and Bracket ,Stay ,Gate
	Weight	0.40kg /set 2 pairs included big caps bolt and nuts

Temporary Fencing Clamp-80TYPE
	Thickness	4.00mm
	Center distance	80mm ( pipes center to center) /OVERALL LENGTH 100MM
	Technical	Punched
	Materials	Q195 Q235 steel
	Design	Australia
	Made Country	China
	Treatment	14 microns ,42 microns hot dipped galvanized electrostatic powder coated
	Application	Secured Temporary Fence panels ,and Bracket ,Stay ,Gate
	Weight	0.35kg /set 2 pairs included big caps bolt and nuts

5. Temporary Fence Stays

High quality Temporary Fence Stays used to support the temporary fence in high wind areas.

Hot Dipped Galvanised to Australian Standard - 42 Microns.

Specially designed for extra strength so fence stands up in very high winds.

Each Stay requires 3 Clamps and 3 Plastic Feet.

Temporary Fence Brace /Stay
	Height :1825mm Frame :OD 32 x 2.00mm Steel Block Thick :8.00mm Width :63mm Length :290mm The upright pipes weld onto steel plate Length :360mm Bottom bend pipes from the ground level 450mm Finish :Hot Dipped Galvanized 14 microns ,42 microns ,84 microns

Temporary Fence HandRails

Frame OD 32 x 2.00m strong pipes Length 2400mm to suit 2100mm x 2400mm temporary fence panels Height 400mm Weight :5.00kg Materials Q 235 Treated Hot dipped Galvanized 14 microns ,42microns as well 84 microns Standard AS4687-2007 Included 4 set clamp system to secured with temporary fencing panels Reduce the possibility of construction accidents handrails provided pedestrian with extra support,they are easy to installed onto temporary fencing panels through temporary fencing clamp system.

1) .Quick and easy to install and can be easily re-located

2) .Protects your valuable assets and protects you against Public Liability claims

3) .Hinged gates can be attached to enable vehicular and machinery access

4) .Panel stabilisers used to ensure sturdy fences on long runs or wind prone areas.

5) .The new bracing system further ensures the integrity of the fence system in areas
prone to high winds

6) .Fence extensions are available on the Industrial/Event panel

7) .Industry regulations in place with CFMEU, C+BUS, Incolink, Co-Invest etc

8. Why Our Heavy Duty Temporary Fence Panels are the Best

Our top of the range panel is manufactured for its robustness in remote and extreme climates. These products withstand these environments and are best suited for the Resource and Hire industries . Our flagship panel specification:

• Anti -climb mesh infill

• 360° weld between the vertical & horizontal pipe

• Horizontal pipe ends crimped for increased strength.

• Above Industry Benchmark in thickness of galvanising

• 1.94 Metre Top Horizontal Pipe for extra security

The manufacturing process uses hand welding for optimum strength with an average of over 70 micron hot dipped galvanised finish. We use the highest quality material specification, incorporating:

1) Frame - 32mm diameter horizontal and vertical pipes with a min 2mm wall thickness
2) Mesh - 4mm horizontal and vertical wire with 150mm x 60mm spacing's
