Temporary Fencing for Sale Brisbane Brand New Temporary Fencing Panels imported From China 2100mm x 2400mm tempfence
Temporary Fencing for Sale Brisbane Brand New Temporary Fencing Panels imported From China 2100mm x 2400mm tempfence
Temporary Fencing for Sale Brisbane Brand New Temporary Fencing Panels imported From China 2100mm x 2400mm tempfence
Temporary Fencing for Sale Brisbane Brand New Temporary Fencing Panels imported From China 2100mm x 2400mm tempfence
Specifications
Brand Name :
TOPFENCE®
Model Number :
Temporary Fencing panels
Certification :
AS4687-2007
Place of Origin :
China
MOQ :
250 kit included temporary fencing panel ,block and clamp system
Price :
12.88USD -38.88USD
Payment Terms :
T/T, Western Union, MoneyGram, Western Union
Supply Ability :
5000 pcs per week
Delivery Time :
15 days
Packaging Details :
metal pallet wrapped with plastic bubble
Color :
Silver
Materials :
Q195 and Q235
Panel size :
2100mm x 2400mm
Mesh :
Opening 60mm x 150mm
Description

Temporary Fencing for Sale Brisbane Brand New Temporary Fencing Panels imported From China 2100mm x 2400mm tempfence

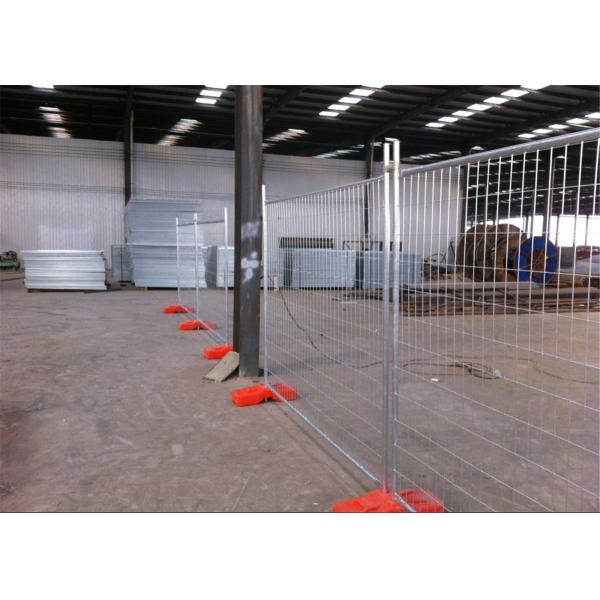

Temporary fence is also known as temporary fencing, temporary fence panels, portable fence, Temp fence,temp fencing and mobile fence.


Description:
Temporary fence panel and base composed of welded mesh panel or chain link mesh panel and tubes. The fence, the post and the hook will be welded together. Between every two pieces of the fence, we will install them with the steel clamp.

AS 4687-2007 standard

Raw materials:
High quality mild steel wire and tube

Corrosion Form:
hot-dipped galvanized

Application:
1. Temporary fencing to secure construction sites and private property.
2. Temporary fencing of residential housing sites.
3. Temporary fencing for major public. Events, sports, concerts, festivals, gatherings etc.
Features: It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.


Specification:

Fence panel heightxlength

2.1x2.4m, 1.8x2.4m, etc

Wire diameter

3mm, 4mm

Welded mesh opening

60x150mm (popular), 75x75mm, 75x100mm, 60x75mm

Fence frame pipe

32mm (popular), 42mm, 48mm, etc

Fence pipe thickness

1.4mm, 1.8mm or 2mm

Clamp

suit for different outer diameter pipe
75mm center space

Material

low carbon steel

Surface treatment

hot dipped galvanized

Fence base material

plastic base with concrete inside

Fence base type

blow molded base size: 600x220x150mm
injection molded base size: 560x240x130mm

Extra brace frame tube

32mm, 42mm or 48mm O.D

Brace height

1.8m




Temporary fence with brace:
Temporary Fencing for Sale Brisbane Brand New Temporary Fencing Panels imported From China 2100mm x 2400mm tempfence

Temporary fence production flow:
Pre hot dip galvanized wire drawing--- cut wire and pipes ---wire welded---cut the corners of the mesh---Pre hot dip galvanized pipes welded-polish the welds-paint anti-rust epoxy-spray sliver powder coat on each welds-package

temporary fencing clamp we supplied are design by Australia for a long term at least a 5 years repeating jobs ,all of clamp are use high tensile steel punched then put in zinc bath for at least 42 microns zinc layer and 4.00mm thickness clamp steel better than you saw in the market per pair at a least 0.40kg.

  • Options of Temporary Fencing Clamp

Temporary Fencing Clamp-100TYPE

Temporary Fencing for Sale Brisbane Brand New Temporary Fencing Panels imported From China 2100mm x 2400mm tempfence

Thickness

4.00mm

Center distance

100mm ( pipes center to center) /OVERALL LENGTH120MM

Technical

Punched

Materials

Q195 Q235 steel

Design

Australia

Made Country

China

Treatment

14 microns ,42 microns hot dipped galvanized electrostatic powder coated

Application

Secured Temporary Fence panels ,and Bracket ,Stay ,Gate

Weight

0.45kg /set 2 pairs included big caps bolt and nuts

Temporary Fencing Clamp-90TYPE

Temporary Fencing for Sale Brisbane Brand New Temporary Fencing Panels imported From China 2100mm x 2400mm tempfence

Thickness

4.00mm

Center distance

90mm ( pipes center to center) /OVERALL LENGTH 110MM

Technical

Punched

Materials

Q195 Q235 steel

Design

Australia

Made Country

China

Treatment

14 microns ,42 microns hot dipped galvanized electrostatic powder coated

Application

Secured Temporary Fence panels ,and Bracket ,Stay ,Gate

Weight

0.40kg /set 2 pairs included big caps bolt and nuts

Temporary Fencing Clamp-80TYPE

Temporary Fencing for Sale Brisbane Brand New Temporary Fencing Panels imported From China 2100mm x 2400mm tempfence

Thickness

4.00mm

Center distance

80mm ( pipes center to center) /OVERALL LENGTH 100MM

Technical

Punched

Materials

Q195 Q235 steel

Design

Australia

Made Country

China

Treatment

14 microns ,42 microns hot dipped galvanized electrostatic powder coated

Application

Secured Temporary Fence panels ,and Bracket ,Stay ,Gate

Weight

0.35kg /set 2 pairs included big caps bolt and nuts

Blow molding Base Version HDPE materials

Suit Pipes

Size

600 x 228 x 150mm

Size

620 x 230 x 130mm

Size

600 x 228mm x 150mm

OD 32mm

OD 38mm

OD 40mm

OD 42mm

OD 48mm

Materials

HDPE

Materials

HDPE

Materials

HDPE

Finish

UV 3 -UV5

Finish

UV3-UV5

Finish

UV3-UV5

Colors

Orange, Green ,Yellow etc

Colors

Orange, Green ,Yellow etc

Colors

Orange ,Green ,Yellow etc

Weight

After filled 27kg-29kg

Weight

After filled 27kg-28kg

Weight

29kg

Design

Australia

Design

Australia

Design

Australia

Clamp

100mm center to center

Clamp

90mm center to center

Clamp

80mm

Temporary Fencing for Sale Brisbane Brand New Temporary Fencing Panels imported From China 2100mm x 2400mm tempfence

Temporary Fencing for Sale Brisbane Brand New Temporary Fencing Panels imported From China 2100mm x 2400mm tempfence

Temporary Fencing for Sale Brisbane Brand New Temporary Fencing Panels imported From China 2100mm x 2400mm tempfence

Blow molding Base Version HDPE materials

Suits pipes

Size

615mm x 230mm x 100mm

Size

620 x 230 x 130mm

Size

600 x 220mm x 150mm

OD 32mm
OD 38mm
OD 40mm
OD 42mm
OD 48mm

Materials

HDPE

Materials

HDPE

Materials

HDPE

Finish

UV 3 -UV5

Finish

UV3-UV5

Finish

UV3-UV5

Colors

Orange, Green ,Yellow etc

Colors

Orange, Green ,Yellow etc

Colors

Orange ,Green ,Yellow etc

Weight

After filled 27kg

Weight

After filled 27kg-28kg

Weight

29kg

Design

Australia

Design

Australia

Design

Australia

Clamp

100mm center to center

Clamp

100mm center to center

Clamp

100mm

Temporary Fencing for Sale Brisbane Brand New Temporary Fencing Panels imported From China 2100mm x 2400mm tempfence

Temporary Fencing for Sale Brisbane Brand New Temporary Fencing Panels imported From China 2100mm x 2400mm tempfence

Temporary Fencing for Sale Brisbane Brand New Temporary Fencing Panels imported From China 2100mm x 2400mm tempfence
