ASTM A392-06 Zinc Coating Temporary Chain Link Fence 2 ⅝x 2-5/8 x 11.5
ASTM A392-06 Zinc Coating Temporary Chain Link Fence 2 ⅝x 2-5/8 x 11.5
ASTM A392-06 Zinc Coating Temporary Chain Link Fence 2 ⅝x 2-5/8 x 11.5
ASTM A392-06 Zinc Coating Temporary Chain Link Fence 2 ⅝x 2-5/8 x 11.5
ASTM A392-06 Zinc Coating Temporary Chain Link Fence 2 ⅝x 2-5/8 x 11.5
ASTM A392-06 Zinc Coating Temporary Chain Link Fence 2 ⅝x 2-5/8 x 11.5
ASTM A392-06 Zinc Coating Temporary Chain Link Fence 2 ⅝x 2-5/8 x 11.5
ASTM A392-06 Zinc Coating Temporary Chain Link Fence 2 ⅝x 2-5/8 x 11.5
Specifications
Brand Name :
top fence
Model Number :
chain link wire temporary construction fence panels
Certification :
ISO
Place of Origin :
china
MOQ :
1 x 40hc container 200 set -400 set
Price :
29.88 -46.88usd
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs per year
Delivery Time :
14 days
Packaging Details :
metal pallet wrapped with plastic
Materials :
Pre-galvanized pipes 14 microns ,28 microns ,42 microns
Panels size :
6ft x 10ft,12ft ,14ft 8ft x 12ft etc
Color :
silver
Steel pipes :
1-3/8 inch pipes ,1-1/4 inch thick 1.6mm
Mesh opening :
60mm x 60mm ,57mm x 57mm or 2-3/8 inch x 2-3/8 inch
Diameter :
2.5mm ,2.7mm,3.00mm
Special note foot :
all foot and punched middle pipes with holes then full welded
Foot types :
920 mm x 413mm x 200mm or customized
Panels brace types :
horizontal ,vertical ,cross brace
Description

6' x 10' Chain Link Temporary Fence Panels Mesh2 ⅝"x 2-5/8" x 11.5 gauge wire 1.25" (32mm) tubing x 16 gauge

TOP FENCE CO 6'x10' smart temporary chain link fence panels for a higher commerical construction security veal was design by USA engineers ,the tubing consist of 1.25" (32mm) tubing x 16 gauge thickness and mesh spacing a Mesh 2-5/8"x 2-5/8" x 11.5 gauge wire then use a high quality zinc 275 HDG wire laced sides of construction fence panels .This just one of designs in large range of chain link fence panels ,our products with follow advantage

  • Adaptable many configuration 6'x12',8'x12' etc

  • Protect from outside to inside injuries or dumping

  • Fast to install and removable

  • Cost efficient price to beat any competitors

  • Available cross ,vertical and horizontal brace

Temporary Chain Link Fence /Construction Fence Panels Spec
Tubing 1¼”(32mm) 1⅜”(35mm) 1½”(38mm) 1⅗”(40mm) 1⅝”(42mm) 1⅞”(48mm)and so on
Thickness of Tubing 16GA/ 1.6mm thick as a standard or customized owned size
Chain mesh aperture 2”x2/”(50mm x 50mm) 2¼”x2¼”(57mmx57mm) 2⅜x2⅜(60mmx60mm) 2½”x2½” (63mmx63mm)
Height 4ft/1220mm 6ft/1820mm 8ft/2420mm
Width 12ft /3650mm was wide acceptance by market also 8ft 9ft 10ft 14ft
Panels Size 6ft x 12ft ,8ft x 12ft, 4ft x 12ft and so on
Diameter /Gauge 10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m

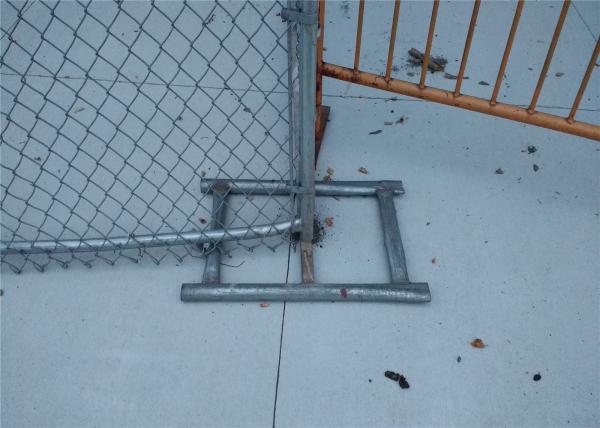

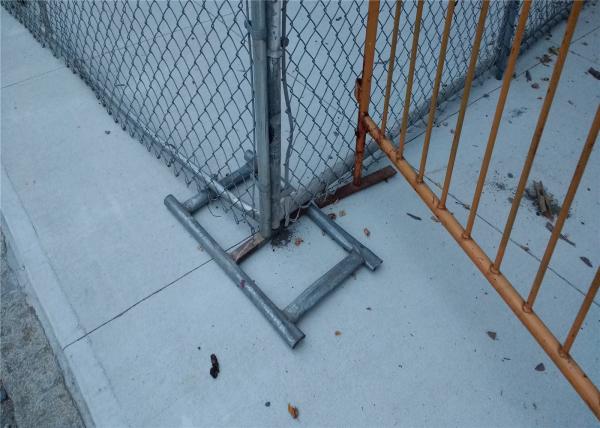

Base Optional 1 36” length x 30” width x 8” Height /914mmx762mmx203mm
Base Optional 2 36” length x 16” width x 8” Height /914mmx406mmx203mm
Base Optional 3 30” length x 18” width x 8” Height /762mm x460mm x203mm
Standard ASTM A392-06
Steel Galvanized Steel Construction
Finish Corrosion-Resistant Zinc Coating
Transport Packing Metal pallet Wrapped with Plastic
HDG zinc thickness 14 microns 100gram/SQM 28 microns 200 gram/SQM 42 microns 300 gram/SQM and 84 microns 600 gram/SQM

ASTM A392-06 Zinc Coating Temporary Chain Link Fence 2 ⅝ASTM A392-06 Zinc Coating Temporary Chain Link Fence 2 ⅝
