2.50mm and 2.8mm 3mm wire diameter temporary fence panels developed in recently 2 years due to a competitive market in australia huge of fence panels was in RENTAL and HIRE period cashflow of these company sometime is not good the market required a lowest rate of fencing panels can perform the function of construction fence panels ,top fence as one of leading manufactuers in market we design and discuss with our elder customer to design follow of spcificaitons of fence panels

Temp fence panels design -1

2000mm*2200mm OD32mm*1.2mm*2.5mm wire *60mm*150mm casue the wire diameter 2.5mm too weak so the temporary fence panels we decrease the width from tradtional 2400mm to 2200mm accordingly in order to enhance the stability of temp fence panels our designers make the fencing height from 2100mm to 2000mm ,more loading quantity of temp fence panels save the transport cost utmost if you are interested to get our others temporary fencing design welcome to email us to bob@wiremeshfence.com or call us 86-186318892222

company produce various temperary fence for all the industries,roads.It designed for long life and regular use because temporaryfence are reliable to move .

Product detail: Consist : panel, feet , climp ( Normally every 5 sets need a brace)

Blow molding Base Version HDPE materials						Suit Pipes
Size	600 x 228 x 150mm	Size	620 x 230 x 130mm	Size	600 x 228mm x 150mm	OD 32mm OD 38mm OD 40mm OD 42mm OD 48mm
Materials	HDPE	Materials	HDPE	Materials	HDPE
Finish	UV 3 -UV5	Finish	UV3-UV5	Finish	UV3-UV5
Colors	Orange, Green ,Yellow etc	Colors	Orange, Green ,Yellow etc	Colors	Orange ,Green ,Yellow etc
Weight	After filled 27kg-29kg	Weight	After filled 27kg-28kg	Weight	29kg
Design	Australia	Design	Australia	Design	Australia
Clamp	100mm center to center	Clamp	90mm center to center	Clamp	80mm

Blow molding Base Version HDPE materials						Suits pipes
Size	615mm x 230mm x 100mm	Size	620 x 230 x 130mm	Size	600 x 220mm x 150mm	OD 32mm OD 38mm OD 40mm OD 42mm OD 48mm
Materials	HDPE	Materials	HDPE	Materials	HDPE
Finish	UV 3 -UV5	Finish	UV3-UV5	Finish	UV3-UV5
Colors	Orange, Green ,Yellow etc	Colors	Orange, Green ,Yellow etc	Colors	Orange ,Green ,Yellow etc
Weight	After filled 27kg	Weight	After filled 27kg-28kg	Weight	29kg
Design	Australia	Design	Australia	Design	Australia
Clamp	100mm center to center	Clamp	100mm center to center	Clamp	100mm

	Temporary Fencing Block -Blow Molding fill Water		Suit pipes
	Materials	High density poly-ethylene (HDPE)	OD 32mm OD 38mm OD 40mm OD 42mm OD 48mm
	Color	Green ,Yellow ,Black
	Weight	26kg after filled warer
	Packing	Stacking together as pallet
	Treatment	UV 3 ,UV 4 UV 5
	Size of foot	600 x 220 x130mm
	Packing	Metal pallet

	Temporary Fencing Block --Recycled Rubber Foot		Suit pipes
	Materials	Recycled rubber foot	OD 32mm OD 38mm OD 40mm OD 42mm OD 48mm
	Color	Green ,Yellow ,Black
	Weight	19KG
	Packing	Stacking together as pallet
	Treatment	Oil painted
	Size of foot	767 x 192 x 126mm
	Packing	Metal pallet

Plastic feet:

• New style plastic feet:600mm*228mm*150mm
• Old style plastic feet:560mm*245mm*130mm

Why choose us?or what are our flashlight of our products?

(1) Australia temporary fence details

• Horizontal pipe ends crimped for increased strength
• 360° weld/strong welding
• Anti-rust paniting in welding point

(2)Surface treatment of Australia temporary fence

silver spray painted:the famous painting in China/smooth, bright,anti-rust.
wheel: from the belowing picture,you can notice our wheels are also smooth,beautiful.and more importantly, it can help you installate,move more conviently.

Quality control of Australia temporary fence

Pls quite assure about quality, we have QA/QC to inspect the qualities for you in every procedure.We are a physical factory, we can assure you high quality with the most competitive factory price.
We will offer you quality control documents during production .

(3) Packing details of Australia temporary fence

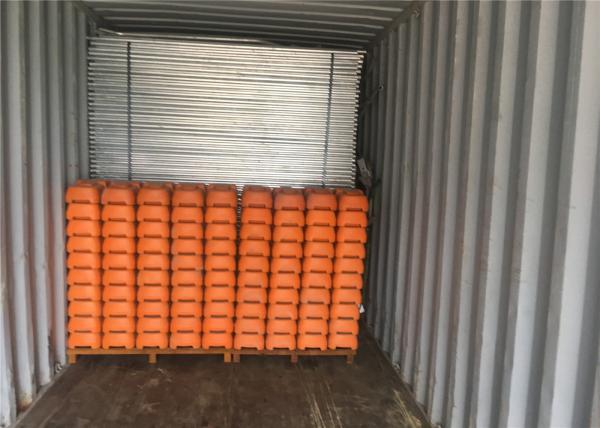

• Feet: plastic film + wooden/metal pallete+metal bandage
• Panel:metal pallete+palstic silm+soft spongy+metal corner/ as your request
• Shipping: save place as possible as we can.
