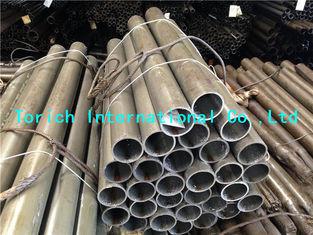

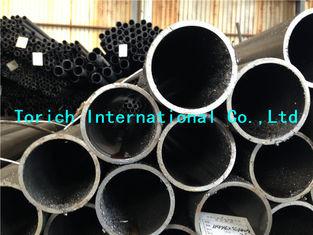

SAE J524 Cold Drawn Seamless Steel Tube , Low Carbon Steel Tube Annealed
SAE J524 Cold Drawn Seamless Steel Tube , Low Carbon Steel Tube Annealed
SAE J524 Cold Drawn Seamless Steel Tube , Low Carbon Steel Tube Annealed
SAE J524 Cold Drawn Seamless Steel Tube , Low Carbon Steel Tube Annealed
SAE J524 Cold Drawn Seamless Steel Tube , Low Carbon Steel Tube Annealed
SAE J524 Cold Drawn Seamless Steel Tube , Low Carbon Steel Tube Annealed
SAE J524 Cold Drawn Seamless Steel Tube , Low Carbon Steel Tube Annealed
SAE J524 Cold Drawn Seamless Steel Tube , Low Carbon Steel Tube Annealed
SAE J524 Cold Drawn Seamless Steel Tube , Low Carbon Steel Tube Annealed
SAE J524 Cold Drawn Seamless Steel Tube , Low Carbon Steel Tube Annealed
SAE J524 Cold Drawn Seamless Steel Tube , Low Carbon Steel Tube Annealed
SAE J524 Cold Drawn Seamless Steel Tube , Low Carbon Steel Tube Annealed
SAE J524 Cold Drawn Seamless Steel Tube , Low Carbon Steel Tube Annealed
SAE J524 Cold Drawn Seamless Steel Tube , Low Carbon Steel Tube Annealed
SAE J524 Cold Drawn Seamless Steel Tube , Low Carbon Steel Tube Annealed
SAE J524 Cold Drawn Seamless Steel Tube , Low Carbon Steel Tube Annealed
Specifications
Place of Origin :
China
Brand Name :
Torich
Certification :
IS09001 ISO14001 TS16949
Model Number :
EN10305-2
MOQ :
5tons
Price :
Negotiation
Packaging Details :
IN BUNDLES
Delivery Time :
30-60 DAYS
Payment Terms :
T/T L/C
Supply Ability :
50000 TONS PER YEAR
Description

SAE J524 Cold Drawn Seamless Steel Tubing for Precision and Vehicle Applications

Quick Detail:

Standard: SAE J524 Seamless Steel Tubing
J524 Seamless Low Carbon Steel Tubing Annealed for Bending and Flaring

Applications: for Bending and Flaring to auto parts


Size range: O.D.:6-88.9mm W.T.:1-15mm L: According to customer Order

Manufacture:
The tubing is cold drawn size and after forming shall be annealed in such a manner as to produce finished product which meet the SAE J524 requirement and customer's requirement.

DIMENSIONS AND TOLERANCES

Table 1- TUBING OUTSIDE DIAMATER TOLERANCE
Nominal Tubing OD mm Tolerance ±mm
Up to 25.4 0.10
Over 25.4 to 38.1 inclusive 0.15
Over 38.1 to 50.8 inclusive 0.20
Over 50.8 to 88.9 inclusive 0.25
WT tolerance shall be not more than 10%

Material:

Tubing made from low-carbon steel confirmting to the following chemical compostion.

Table 2- CHEMICAL REQUIREMENTS
Element %
Carbon 0.18 max
Manganese 0.30 to 0.60
Phosphpris 0.040 max
Sulfur 0.050 max

MECHANICAL PROPERTIES:

The finished tubing have mechanical properties of following table:

Table 3- MECHANICAL PROPERTIES
Properties Value
Yield Strength,min 170 Mpa
Ultimate Strenth,min 310 Mpa
Elongation in 50mm, min 30%
Hardness ( Rockwell B),max 65.00
