Specifications
Place of Origin :
China
Brand Name :
Torich
Certification :
ISO9001,TS16949,ISO14001
Model Number :
ASTM A588
MOQ :
5 Tons
Price :
2000 USD/TON
Packaging Details :

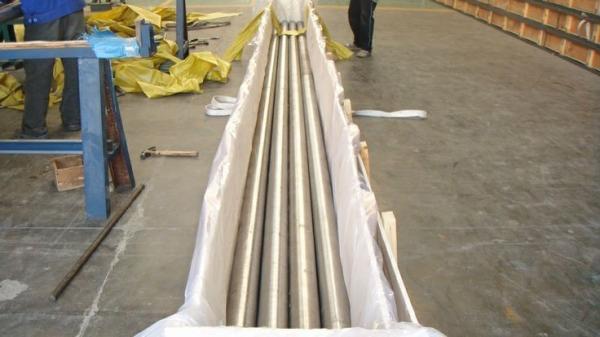

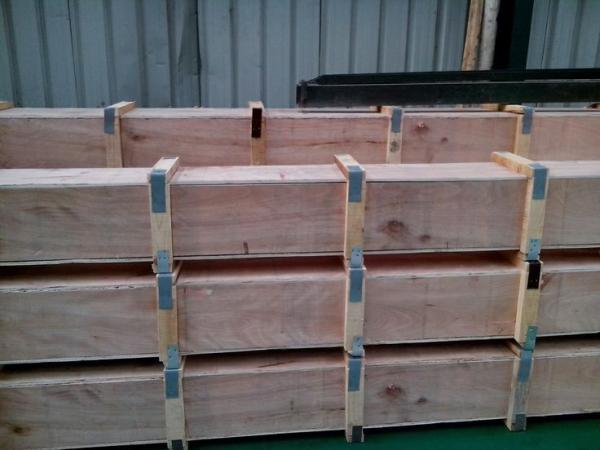

IN BUNDLES OR WOODEN BOX
Delivery Time :
30-60 DAYS
Payment Terms :
T/T.L/C
Supply Ability :
20000 TONS PER YEAR
Model :
ASTM A688
Description

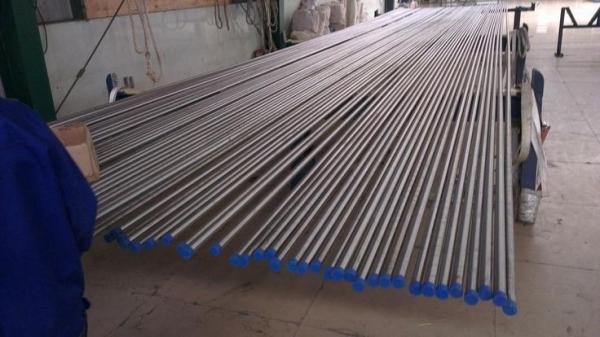

ASTM A688 Welded Austenitic Stainless Steel Feedwarter Heater Tubes

Applications: Heater
Size range: O.D.: 4.0-230mm W.T.:1-30mm L: according to customer requirement


Mechanical Requirement

Grade:

TP304

TP304L

TP304LN

TP316

TP316L

TP316LN

TP316LN

TPXM-29

TP304N

UNS

S30400

S30403

S30453

S31600

S31603

S31653

S31653

S24000

S30451

C, max

0.08

0.035

0.035

0.080

0.035

0.035

0.035

0.08

0.080

Mn, max

2.00

2.00

2.00

2.00

2.00

2.00

2.00

11.5-14.5

2.00

P, max

0.045

0.045

0.045

0.045

0.045

0.045

0.045

0.060

0.045

S, max

0.030

0.030

0.030

0.030

0.030

0.030

0.030

0.030

0.030

Si, max

1.00

1.00

1.00

1.00

1.00

1.00

1.00

1.00

1.00

Ni

18.0-20.0

18.0-20.0

18.0-20.0

16.0-18.0

16.0-18.0

16.0-18.0

16.0-18.0

17.0-19.0

18.0-20.0

Cr

8.0-11.0

8.0-13.0

8.0-12.0

11.0-14.0

10.0-14.0

11.0-14.0

11.0-14.0

2.3-3.7

8.0-18.0

Mo

…

…

…

2.00-3.00

2.00-3.00

2.00-3.00

2.00-3.00

…

…

Nitrogen

…

…

…

…

…

…

…

…

…

Copper

…

…

…

…

…

Grade: TP316N … … … …
UNS S31651 N08367 N08926 S31254 S32654
C, max 0.070 0.030 0.020 0.020 0.020
Mn, max 2.00 2.00 2.00 1.00 2.0-4.0
P, max 0.045 0.040 0.030 0.030 0.030
S, max 0.030 0.030 0.010 0.100 0.005
Si, max 4.8-6.0 1.00 0.50 0.80 0.50
Ni 9.58.0 20.0-22.0 24.0-26.0 19.5-20.5 21.0-23.0
Cr 19.0-22.0 23.5-25.5 19.0-21.0 17.5-18.5 24.0-25.0
Mo 0.30-1.50 6.0-7.0 6.0-7.0 6.0-6.5 7.0-8.0
Nitrogen … … … … 0.45-0.55
Copper … … … 0.30-0.60


Tensile Requirements

Grade and UNS Tensile strength
min ksi [Mpa]		 Yield strength
min ksi [Mpa]		 Elongation
in 2in or 50mm min %
304, 316
S30400, S31600		 75 [515] 30 [205] 35
304L, 316L
S30403, S31603		 70 [485] 25 [175] 35
XM-29
S24000		 100 [690] 55 [380] 35
304N, 316N
S30451, S31651		 80 [550] 35 [240] 20
304LN, 316LN
S30453, S31653		 75 [515] 30 [205] 35
N08367 t≤0.187 100 [690] 45 [310] 30
N08367 t＞0.187 95 [655] 45 [310] 30
N08926 94 [650] 45 [310] 35
S31254 t≤0.187 100 [690] 45 [310] 35
S21254 t＞0.187 95 [655] 45 [310] 35
S32654 120 [825] 65 [450] 40

Permissible Variations in Dimensions

Gro
up

Size,
Outside Diameter,
in(mm)

Permissible
Variations in
Outside
Diameter,
in.[mm]

Permis
sible
Variatio
ns in
WT, %

Permisible
Variations in
Cut Length,
in[mm]
Over Under

1

Up to 1/2(12.7), excl

±0.005[0.13]

±15

1/8[3]

0

2

1/2 to 1 1/2(12.7 to 38.1 excl

±0.005[0.13]

±10

1/8[3]

0

3

1 1/2 to 3 1/2(38.1 to 88.9 excl

±0.010[0.25]

±10

3/16[5]

0

4

3 1/2 to 5 1/2(88.9 to 139.7 excl

±0.015[0.38]

±10

3/16[5]

0

5

5 1/2 to 5 1/2(139.7 to 230.2 excl

±0.030[0.76]

±10

3/16[5]

0
