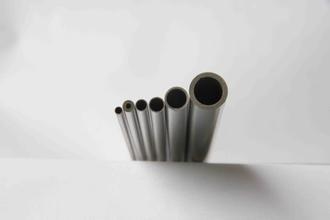

Seamless Stainless Capillary Tube 304 , 316 For Aerospace / Electronics
Seamless Stainless Capillary Tube 304 , 316 For Aerospace / Electronics
Seamless Stainless Capillary Tube 304 , 316 For Aerospace / Electronics
Seamless Stainless Capillary Tube 304 , 316 For Aerospace / Electronics
Seamless Stainless Capillary Tube 304 , 316 For Aerospace / Electronics
Seamless Stainless Capillary Tube 304 , 316 For Aerospace / Electronics
Specifications
Place of Origin :
China
Brand Name :
Torich
Certification :
ISO
MOQ :
100kgs
Price :
Negotiation
Packaging Details :
IN BUNDLES
Delivery Time :
30-60DAYS
Payment Terms :
T/T L/C
Supply Ability :
50000 TONS PER YEAR
Type :
Welded
Steel Grade :
300 Series
Welding Line Type :
ERW
Thickness :
0.4-30mm
Length :
6m or as customers' request
Product name :
stainless steel pipe/tube
Surface :
600 grit polished
Material :
200 Series/300 Series/400series
Shape :
Round.square.Rectangle
Description

Seamless and welded Stainless Capillary Tube 304, 316

Carbide electric wire

Tungsten electrode wire

Electrode tubes for piercer

Diameter : 0.4-12mm

Wall thickness : 0.1-2mm

Length : 200-6000mm Upon customer's request

Application:

Carbide electrode wire for CNC-EDM micro pore drilling machine

Necessary electrode tools for a variety of small pore EDM machine

for Needles Precision Electronics Medical device industry Instrument tubing etc

Widely used in the field of:

Aerospace

Electronics

Scientific research

Chemical industry

Medical apparatus

Instrument areas

Stainless Grade: 304,304L,316, 321, 310S,4J29,4J36

Aluminum grade: L2Y2, LF21

Brass grade: T2, H62, H65, H68

Special grade would be according to customer's special requirement.

Production method: Seamless welded

Delivery condition: Bright Annealed Polish

Tolerance is -0.03mm ~ +0.03mm

Characteristic: Minor diameter Precision Bright surface Clean inside

Application for:

The tubes can be used in many applications where a very small I.D. is required

Custom the tube for you : Cutting short length Cross Hole ID Chamfer

Seamless Stainless Capillary Tube 304 , 316 For Aerospace / Electronics

Carbide electrode wire (hard wire)and pure tungsten alloy electrode wire(soft wire),are mainly used in punching and micro machine.

These products could be produced according to customer requirements.

Specification for carbide electrode wire:OD 0.05mm-0.50mm,L300/400mm,accuracy up to±0.001

Specification for pure tungsten alloy electrode wire:OD 0.05mm-0.50mm,L300/400mm,accuracy up to±0.001

OD mm Lmm material
hard alloy pure tungsten alloy
0.05 300/400 o o
0.06

300/400

 o o
0.07 300/400 o o
0.08 300/400 o o
0.09 300/400 o o
0.10 300/400 o o
0.11 300/400 o o
- - o o
- - o o
- - o o
0.5 300/400 o o

Porous electrode capillary tube

ODmm copper bass ODmm copper bass OD mm copper bass
length mm length mm length mm

1.00

 400 1.70 400 2.60 400
1.05

400

 1.80 400 2.70 400
1.10 400 1.90 400 2.80 400
1.20 400 2.00 400 2.90 400
1.30 400 2.10 400 3.00 400
1.35 400 2.20 400 3.50 600
1.40 400 2.30 400 4.00 600
1.45 400 2.40 400 4.50 600
1.50 400 2.45 400 5.00 600
1.60 400 2.50 400 6.00 600

Single-hole electrode capillary tube

ODmm copper bass ODmm copper bass OD mm copper bass
length mm length mm length mm

0.20

 200 0.65 400 1.20 400
0.25

250

 0.70 400 1.25 400
0.30 400 0.73 400 1.26 400
0.33 400 0.75 400 1.30 400
0.35 400 0.80 400 1.35 400
0.40 400 0.83 400 1.40 400
0.45 400 0.85 400 1.50 400
0.50 400 0.90 400 1.60 400
0.53 400 0.92 400 1.70 400
0.55 400 0.95 400 1.80 400
0.58 400 1.00 400 1.90 400
0.60 400 1.05 400 2.00 400
0.63 400 1.10
