Specifications
Place of Origin :
China
Brand Name :
Torich
Certification :
ISO9001,ISO14001,TS16949,son
Model Number :
Carbon Steel Grade
MOQ :
5 TONS
Price :
1200 USD/TON
Packaging Details :
IN BUNDLES
Delivery Time :
45-60 DAYS
Payment Terms :
T/T,L/C
Supply Ability :
50000 TONS PER YEAR
Grade :
ST35.8, ST44,ST52
Dimensions :
30-350mm
Type :
Heavy
Application :
Steel Structure Bridge
Standard :
DIN
Thickness :
0.6 - 50.0 mm
Alloy or not :
Non-alloy
Section shape :
Round
Secondary or not :
Non-secondary
Special pipe :
boiler tubes
Description

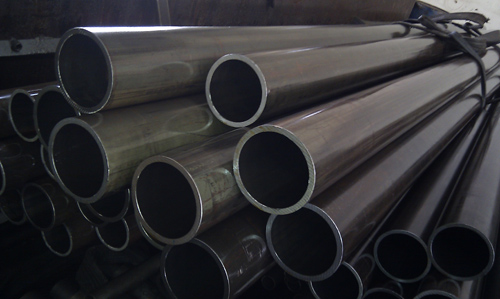

Seamless Steam Boiler Steel Tubes DIN17175 Pressure Vessels and Boilers

Seamless steel tubes for pressure purposes-Technical delivery conditions

Non-alloy steel tubes with specified elevated temperature properties

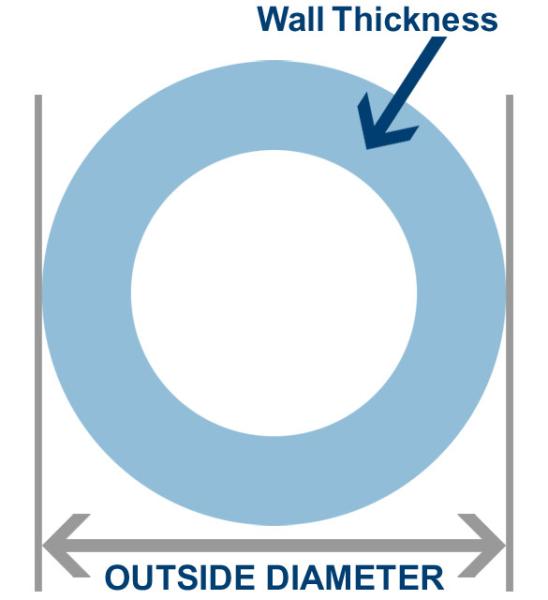

Size range: O.D.:6-323mm W.T.:1-30mm L: according to customer requirement

Applications: for pipelines of boilers industry, vessel equipment, evconomizer,petrochemical industry

Chemical composition

Chemical composition

Steel grade

C

Si

Mn

P

S

Cr

Mo

Steel name

max

max

St35.8

0.17

0.10-0.35

0.40-0.80

0.003

0.003

/

/

St45.8

0.21

0.10-0.35

0.40-1.20

0.003

0.003

/

/

15Mo3

0.12-0.20

0.10-0.35

0.40-0.80

0.003

0.003

/

0.25-0.35

Note: Special steel grade is also available, according to customer request.

Mechanical properties

Steel Grade

Tensile properties

Tensil

Elongation A min.%

Mpa

Mpa

St35.8

≥235

350-480

≥25

St45.8

≥255

410-530

≥21

15Mo3

≥270

460-600

≥20

Other Steel Grade:14CrMo44, 10CrMo910, 14MoV63, X20CrMoV121
