Specifications
Brand Name :
Torich
Model Number :
GB/T18704
Certification :
ISO9001 TS16949 ISO14001
Place of Origin :
China
MOQ :
5tons
Price :
900-3000USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000tons per year
Delivery Time :
5-8weeks
Packaging Details :
In bundles
Material :
Carbon steel+Stianless steel
Size :
12.7mm - 325mm
Length :
0-12m
Characteristic :
Clad Pipes
End Protector :
Plain
Description

Product Name:TORICH GB/T18704 Q195 Q235 12Cr18Ni9 Stainless Steel Clad Pipes for Structural Purposes
Standard: GB/T18704
OD: 12.7 - 325 mm
WT: 0.8 - 12 mm
Length: 1-8m or according to customers' actual application and production.

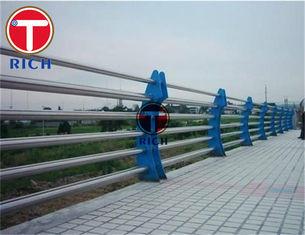

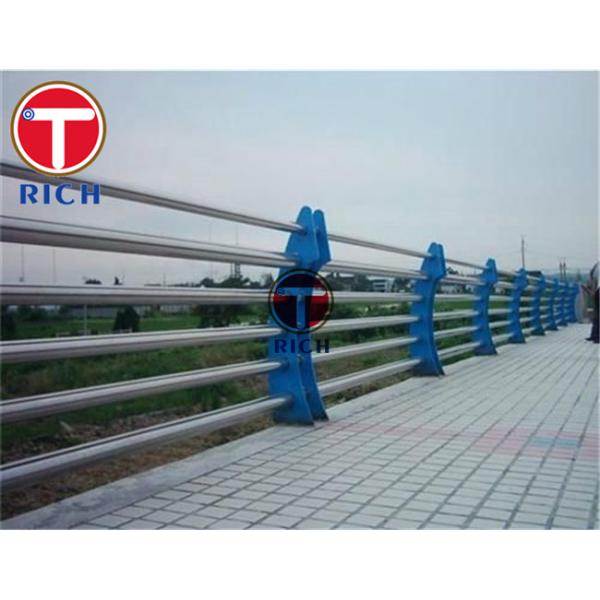

Application:public facilities. Vehicle and ship manufacturing. Road guardrail. Furniture. Medical apparatus and instruments
Steel Grade:Q195 Q235 06Cr19Ni10 12Cr18Ni9 12Cr18Mn9Ni5N 12Cr17Mn6Ni5N
Technology: Continuous welding molding

Tolerance of OD

Surface delivery condition Nominal outside diameter Tolerance
Polishing,Polish
(SB,SP)		 ≤25 ±0.25
＞25~40 ±0.30
＞40~50 ±0.35
＞50~60 ±0.40
＞60~70 ±0.50
＞70~80 ±0.60
＞80 ±1％D
Unpolished,Sand blasting(SNB,SS) ≤25 ±0.30
＞25~50 ±0.40
＞50 ±1.0％D


Tolerance of WT

Wall thickness(S) Tolerance(high-grade) Tolerance(medium grade)
≥0.8~2.0 ±0.10 ±0.20
＞2.0~3.0 ±0.15 ±0.30
＞3.0 ±5％S ±10％S


Chemical composition

No. Unified digital code New steel grade Old steel grade Chemical composition
C Si Mn P S Ni Cr N
1 S35350 12Cr17Mn6Ni5N 1Cr17Mn6Ni5N ≤0.15 ≤1.00 5.50~7.50 ≤0.050 ≤0.030 3.50~5.50 16.00~18.00 0.05~0.25
2 S35450 12Cr18Mn9Ni5N 1Cr18Mn8Ni5N ≤0.15 ≤1.00 7.50~10.0 ≤0.050 ≤0.030 4.00~6.00 17.00~19.00 0.05~0.25
3 S30210 12Cr18Ni9 1Cr18Ni9 ≤0.15 ≤1.00 ≤2.00 ≤0.045 ≤0.030 8.00~10.00 17.00~19.00 ≤0.10
4 S30408 06Cr19Ni10 0Cr18Ni9 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.030 8.00~11.00 18.00~20.00 -


Mechanical property

No. Unified digital code New steel grade Old steel grade Yield strength
Rp0.2/MPa		 Tensile
Strength
Rm/MPa		 Elongation A/
％
≥
1 S35350 12Cr17MnNi5N 1Cr17Mn6Ni5N 245 520 25
2 S35450 12Cr18Mn9Ni5N 1Cr18Mn8Ni5N 245 520
3 S30210 12Cr18Ni9 1Cr18Ni9 210 520 30
4 S30408 06Cr19Ni10 0Cr18Ni9 210 520

QUALITY CONTROL

1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
