DIN 2391 ST52 E355 Seamless Carbon High pressure Hydraulic Honed Tubing
DIN 2391 ST52 E355 Seamless Carbon High pressure Hydraulic Honed Tubing
Specifications
Brand Name :
Torich
Certification :
ISO9001
Place of Origin :
Zhejiang, China (Mainland)
MOQ :
2tons
Price :
1000-5000USD/ton
Supply Ability :
50000tons per year
Delivery Time :
5-8 weekdays
Packaging Details :
In bundles or in wooden boxes packaging
Product name :
Seamless Carbon Hydraulic Honed Tubing
Material :
E235 St52 16Mn 1020 1045
Shape :
Round
Characteristic :
precision diameter, smooth inside surface
Description

Seamless Carbon Hydraulic Honed Tube


Size range: O.D.:6-800mm W.T.:1-50mm L:max12000mm

Steel grade:E235,SAE1020 ,SAE 1045, St52, 16Mn,25Mn,AISI 4140,AISI 4130,42CrMo,35CrMo,JIS STKM13C,ASTM A106 GrB

ID :630mmmax

Straightness:1/1000mm

Tolerance : EN10305,DIN2391,ISO.

Roughness:0.2-0.8μm
Place of origin :ZheJiang
Certificate: ISO9001 EN10304.2.1
Production process :ID Honing / Roller Burnish+ Skiving

Accuracy deviation

Tubes Machining
Cylinder Diameter
Length
Straightness
ID Tolerance
WT Tolerance
Roughness of bore
Honing / Roller Burnish+Skiving
6-800mm
12m max
1/1000mm
H8-H9
+/-10%
0.2-0.8μm

Feature

1.Precision pre-honed steel tubes‘s Inside&Outside Surface without oxide layer,is suitable for working high presure,No leak out,

2.High Precision ,High quality smooth finish.

3.Higher degree of tensile strength, yield strength, elongation.

Tubes Machining
DIN 2391 ST52 E355 Seamless Carbon High pressure Hydraulic Honed Tubing

ID Honing

Utilize an abrasive stone,which turns while being moved in and out of the work piece.

The honing process makes :

1.Smooth surface finishes inside bores

2.Hold precise tolerances on bore diameters

ID H7 H8 H9

ID roughness 0.2-0.8μm

ID max 630mm

DIN 2391 ST52 E355 Seamless Carbon High pressure Hydraulic Honed Tubing

Roller Burnish+ Skiving

Two thin chips are cut at high feed rate while the tool passes through the workpiece.producing super finish surface,with a bore precise tolerance .

ID H7 H8 H9
ID roughness 0.2-0.8μm

ID max 630mm

Related information.

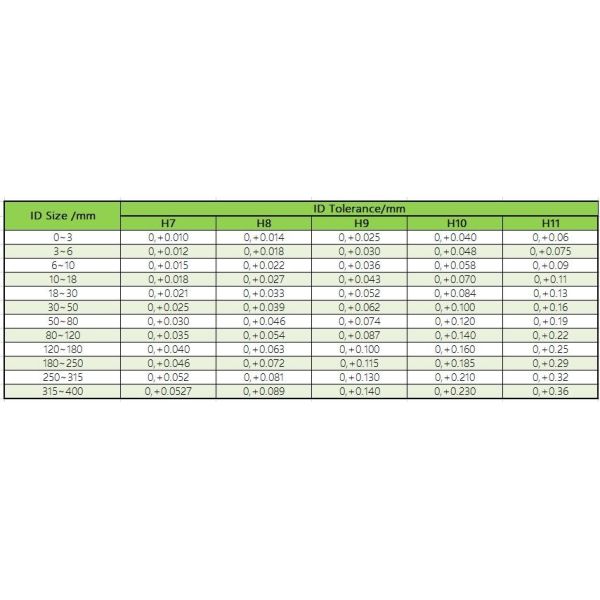

ISO Hore Tolerance H7,H8,H9,H10

DIN 2391 ST52 E355 Seamless Carbon High pressure Hydraulic Honed Tubing

DIN 2391 ST52 E355 Seamless Carbon High pressure Hydraulic Honed Tubing DIN 2391 ST52 E355 Seamless Carbon High pressure Hydraulic Honed Tubing
