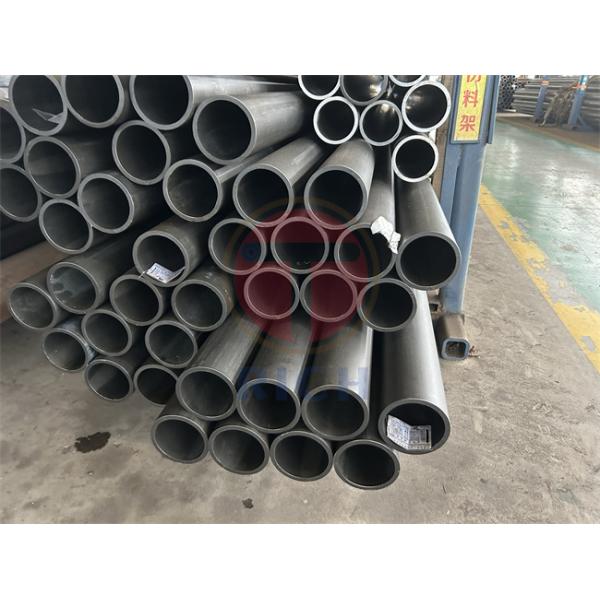

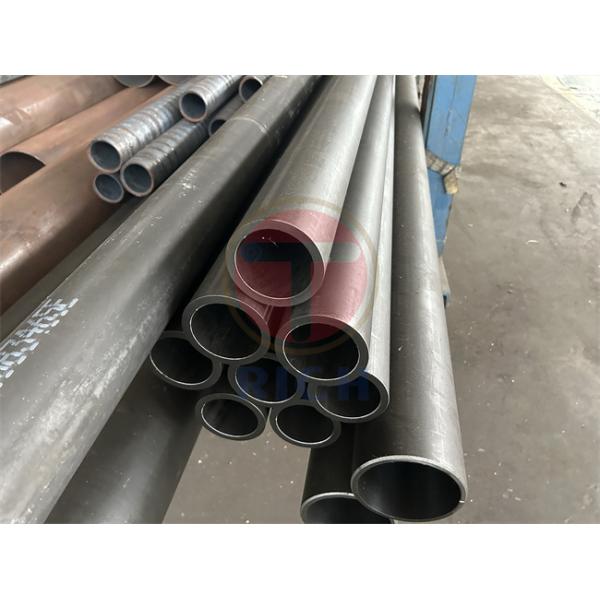

12mm 24mm DOM Drawn Over Mandrel Cold Drawn Seamless Mechanical Round Steel Tubing
12mm 24mm DOM Drawn Over Mandrel Cold Drawn Seamless Mechanical Round Steel Tubing
12mm 24mm DOM Drawn Over Mandrel Cold Drawn Seamless Mechanical Round Steel Tubing
12mm 24mm DOM Drawn Over Mandrel Cold Drawn Seamless Mechanical Round Steel Tubing
Specifications
Brand Name :
Torich
Model Number :
4130
Certification :
TS16949,ISO9001
Place of Origin :
China
MOQ :
5tons
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
5000tons per year
Delivery Time :
5-8 week days
Packaging Details :
In bundles
Technique :
Cold Drawn
Thickness :
2 - 30 mm
Application :
Automotive, Mechanical properties
Standard :
ASTM
Section shape :
Round
Alloy or not :
Non-alloy
Surface treatment :
oiled
Outer diameter(round) :
0.5 - 24 inch
Product name :
12mm 24mm DOM Drawn Over Mandrel Cold Drawn Seamless Mechanical Round Steel Tubing
Description

12mm 24mm DOM Drawn Over Mandrel Cold Drawn Seamless Mechanical Round Steel Tubing

TORICH is a professional steel tubes manufacturer from China with over 23 years manufacturing and exporting experience.
Our main products areDOM precision pipe,carbon steel Drawn Over Mandrel Cold draw pipe,alloy steel seamless Mechanical round steel tubing, stainless steel seamless precision pipe.The material we usually use for producing DOM seamless Mechanical round steel tubes as per DIN2391 EN10305 A519 is10#,20#,1010,1020,1026,ST37,ST44,E235,E215,E355,
4130,4140 etc

Chemical Composition

Steel grade C
max.		 Si
max.		 Mn
max.		 P
max.		 S
max.		 Altot
min.
Name Number
E215 1.0212 0.10 0.05 0.7 0.025 0.015 0.025
E235 1.0308 0.17 0.35 1.2 0.025 0.015 --
E355 1.0580 0.22 0.55 1.6 0.025 0.015 --


Mechanical Properties

Steel grade Yield strengtha Tensile strength Elongation
Name Number ReH Rm A
min. min. min.
MPa MPa %
E215 1.0212 215 290 to 430 30
E235 1.0308 235 340 to 480 25
E355 1.0580 355 490 to 630 22


Features:

1.High tolerance

2.High concentricity

3.Good quality raw material ,Like Baosteel,Zhongtian etc

4. Good service



Delivery Condition

Designation Symbol Description
Cold finished (hard) BK(+C)
Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation
Cold finished (Soft) BKW
(+LC)
The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding)
Cold finished and stress-relieved BKS(+SR)
Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree.
Annealed GBK(+A) The last Cold forming process is followed by annealing in a controlled atmosphere.
Normalized NBK(+N) The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere.

Packages:

In bundles or in wooden box packages.

12mm 24mm DOM Drawn Over Mandrel Cold Drawn Seamless Mechanical Round Steel Tubing

12mm 24mm DOM Drawn Over Mandrel Cold Drawn Seamless Mechanical Round Steel Tubing
