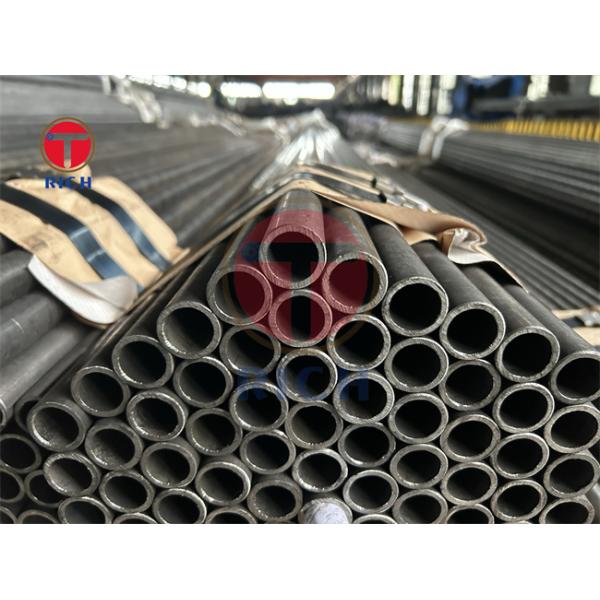

BS6323 CEW1 57.15X2 Seaamless steel tubes material
BS6323 CEW1 57.15X2 Seaamless steel tubes material
BS6323 CEW1 57.15X2 Seaamless steel tubes material
BS6323 CEW1 57.15X2 Seaamless steel tubes material
BS6323 CEW1 57.15X2 Seaamless steel tubes material
BS6323 CEW1 57.15X2 Seaamless steel tubes material
Specifications
Brand Name :
Torich
Model Number :
BS6323
Certification :
TS16949,ISO9001
Place of Origin :
China
MOQ :
5tons
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
5000tons per year
Delivery Time :
5-8 week days
Packaging Details :
In bundles
Technique :
Cold Drawn
Application :
Oil Pipe,hydraulic cylinder
Standard :
BS
Alloy or not :
Non-alloy
Thickness :
0.5 - 20 mm
Section shape :
Round
Surface treatment :
oiled
Special pipe :
precision seamless pipe
Secondary or not :
Non-secondary
Length :
Customer's Requirement
Description

BS6323 CEW1 57.15X2 Seaamless steel tubes material

BS6323 This standard is published in eight separate parts as follows:

--Part 1: General requirements

--Part 2: Specific requirements for hot finished welded steel tubes:

--Part3:Specific requirements for hot finished seamless steel tubes

--Part4:Specific requirements for cold finished seamless steel tubes

--Part 5:Specific requirements for electric resistance welded(Including induction welded)steel tubes

--Part6:Specific requirements for cold finished electric resistance welded(Including induction welded)steel tubes

--Part7:Specific requirements for submerged arc welded steel tubes

--Part8:Specific requirements for longitudinally welded stainless steel tubes.

Delivery condition:

a) Cold finished/hard (cold finished as drawn):BK

b) Cold finished/soft(lightly cold worked):BKW

c) Annealed:GBK

d) Annealed(Including de-scaling):GZF

e) Normalized:NBK

f) Normalized(Including de-scaling):NZF

It is permissible for tubes supplied in the GBK and NBK conditions to be discoloured,but they shall be free from loose scale.

GBK condition are required bright annealed

Chemical composition and mechanical properties

Designation Chemical composition(ladle analysis) Mechanical properties
C max Si max Mn max P max S max BK (cold finished/hard)Mpa BKW (Cold finished/soft)Mpa GBK and GZF
(Annealed)Mpa		 NBK and NZF
(Normalized)Mpa
CEW 1 0.13 0.6 0.05 0.05 320 400 6 245 350 10 150 270 27 155 280 25
CEW 2 0.16 0.7 0.05 0.05 355 420 6 260 370 10 160 300 27 15 320 25
CEW 3 0.2 0.35 0.9 0.05 0.05 360 450 6 280 400 9 170 340 26 215 360 24
CEW 4 0.25 0.35 1.2 0.05 0.05 415 520 5 315 450 8 200 400 24 235 420 22
CEW 5 0.23 0.5 1.5 0.05 0.05 480 600 4 385 550 6 340 490 20

Testing:Flattening test

Drift expanding test

Leak tightness test

BS6323 CEW1 57.15X2 Seaamless steel tubes material
