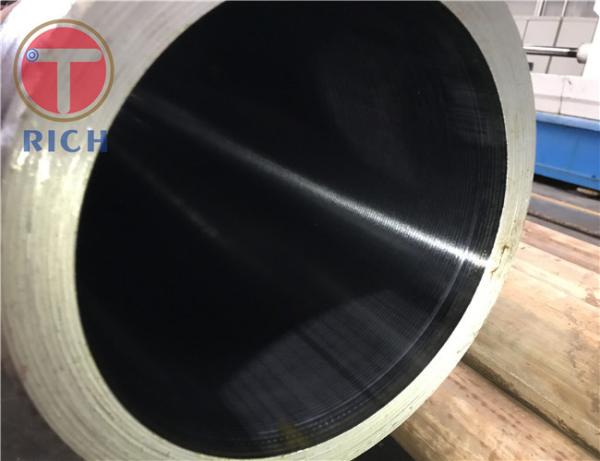

Honed Hydraulic Tube E235 EN10305-1 For Pneumatic Cylinders Tube / Steel Hydraulic Jack Tube
Honed Hydraulic Tube E235 EN10305-1 For Pneumatic Cylinders Tube / Steel Hydraulic Jack Tube
Honed Hydraulic Tube E235 EN10305-1 For Pneumatic Cylinders Tube / Steel Hydraulic Jack Tube
Honed Hydraulic Tube E235 EN10305-1 For Pneumatic Cylinders Tube / Steel Hydraulic Jack Tube
Honed Hydraulic Tube E235 EN10305-1 For Pneumatic Cylinders Tube / Steel Hydraulic Jack Tube
Honed Hydraulic Tube E235 EN10305-1 For Pneumatic Cylinders Tube / Steel Hydraulic Jack Tube
Specifications
Brand Name :
Torich
Model Number :
EN 10305-1
Certification :
IS09001 ISO14001 TS16949
Place of Origin :
China
MOQ :
5 tons
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
5000tons per year
Delivery Time :
5-8 weeks days
Packaging Details :
In bundles
Standard :
EN 10305-1
Material :
E235
Application :
Hydraulic Cylinder
Tolerance :
H8
Length :
5-7 m as per customer’s requests
Description
Product Description

High Precision E235 Tube EN10305-1 for Pneumatic Cylinders Tube / Steel Hydraulic Jack tube

Detail info:
Size range: O.D.:6-800mm W.T.:1-50mm L:max12000mm

Steel grade:E235,St52, 4140

ID :630mm max

Straightness:1/1000mm

Tolerance : EN10305,DIN2391,ISO.

Place of origin :China(mainland)
Tensile Strength:>600Mpa
Shape: Circular
Certificate: ISO9001 EN10304.2.1
Production process :Cold Drawn+Annealing
Size as per customer‘s requests.

Chemical Composition
Steel Grade
C max
Si max
Mn max
P max
Smax
Almin
E215
0.10
0.05
0.70
0.025
0.025
0.025
E235
0.17
0.35
1.20
0.025
0.025
-
E355
0.22
0.35
1.60
0.025
0.025
-
(+Cc)
(+LCc)
(+SR)
(+Ad)
(+N)
E215 Mpa min
TS430
A 8%
TS380
A 12%
TS380
YS 280
A 16%
TS280
A 30%
TS290-430
YS215
A 30%
E235 Mpa min
TS480
A 6%
TS420
A 10%
TS420
YS 350
A 16%
TS315
A 25%
TS340-480
YS235
A 25%
E355 Mpa min
TS640
A 4%
TS580
A 7%
TS580
YS 450
A 10%
TS450
A 22%
TS490-630
YS355
A 22%

Honed Hydraulic Tube E235 EN10305-1 For Pneumatic Cylinders Tube / Steel Hydraulic Jack Tube

Honed Hydraulic Tube E235 EN10305-1 For Pneumatic Cylinders Tube / Steel Hydraulic Jack Tube
