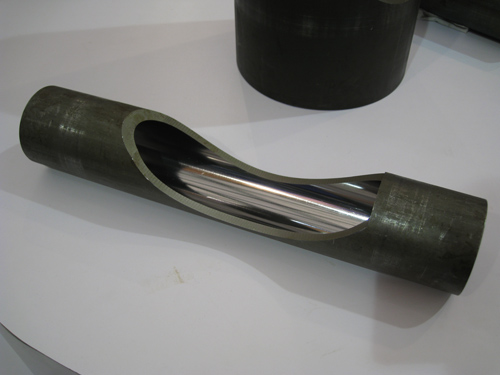

D.O.M Pipe for Oil Cylinders EN10305-2
D.O.M Pipe for Oil Cylinders EN10305-2
D.O.M Pipe for Oil Cylinders EN10305-2
D.O.M Pipe for Oil Cylinders EN10305-2
D.O.M Pipe for Oil Cylinders EN10305-2
D.O.M Pipe for Oil Cylinders EN10305-2
Specifications
Place of Origin :
China
Brand Name :
Torich
Certification :
IS09001 ISO14001 TS16949,DNV
Model Number :
EN10305-2
MOQ :
2TONS
Price :
NEGOTIATION
Packaging Details :
IN BUNDLES
Delivery Time :
45-60 DAYS
Payment Terms :
T/T L/C
Supply Ability :
50000 TONS PER YEAR
Shape :
Round
Description

EN10305-2 Welded Precision Cold Drawn Steel Tubes

  • Size range: O.D.:6-350mm W.T.:1-35mm L:max12000mm
  • Application:

for Auto industry

  • for machinery use

  • Oil Cylinder Tube

  • Motorcyle shock absorber

  • Auto shock absorber innder cylinder

  • Telescopic Cylinders

Mechanical properties at room temperature
Steel grade Minimum values for the delivery conditiona b
Steel name (+Cc) (+LCc) (+SR) (+Ad) (+N)
Rm Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A % Rm Mpa A % Rm Mpa ReHe Mpa A %
E155 1.0033 400 6 350 10 350 245 18 260 28 270-410 155 28
E195 1.0034 420 6 370 10 370 260 18 290 28 300-440 195 28
E235 1.0308 490 6 440 10 440 325 14 315 25 340-480 235 25
E275 1.0225 560 5 510 8 510 375 12 390 21 410-550 275 21
E355 1.0580 640 4 590 6 590 435 10 450 22 490-630 355 22


Note: Special steel grade is also available, according to customer request.

D.O.M Pipe for Oil Cylinders EN10305-2D.O.M Pipe for Oil Cylinders EN10305-2

D.O.M Pipe for Oil Cylinders EN10305-2 D.O.M Pipe for Oil Cylinders EN10305-2
