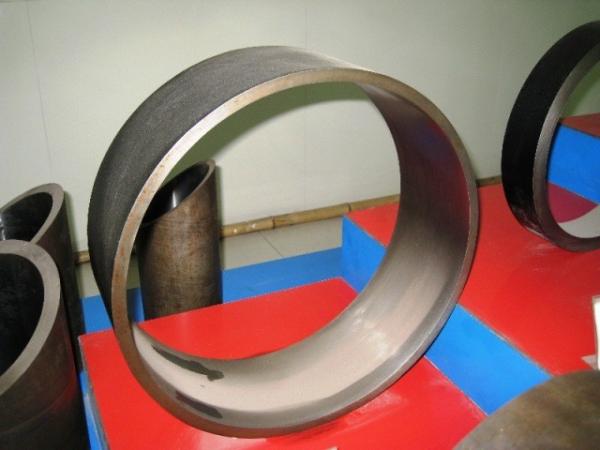

Hydraulic Steel Tubing Steel DOM Tubing EN10305-2 DOM steel pipes
Hydraulic Steel Tubing Steel DOM Tubing EN10305-2 DOM steel pipes
Hydraulic Steel Tubing Steel DOM Tubing EN10305-2 DOM steel pipes
Hydraulic Steel Tubing Steel DOM Tubing EN10305-2 DOM steel pipes
Hydraulic Steel Tubing Steel DOM Tubing EN10305-2 DOM steel pipes
Hydraulic Steel Tubing Steel DOM Tubing EN10305-2 DOM steel pipes
Hydraulic Steel Tubing Steel DOM Tubing EN10305-2 DOM steel pipes
Hydraulic Steel Tubing Steel DOM Tubing EN10305-2 DOM steel pipes
Hydraulic Steel Tubing Steel DOM Tubing EN10305-2 DOM steel pipes
Hydraulic Steel Tubing Steel DOM Tubing EN10305-2 DOM steel pipes
Hydraulic Steel Tubing Steel DOM Tubing EN10305-2 DOM steel pipes
Hydraulic Steel Tubing Steel DOM Tubing EN10305-2 DOM steel pipes
Hydraulic Steel Tubing Steel DOM Tubing EN10305-2 DOM steel pipes
Hydraulic Steel Tubing Steel DOM Tubing EN10305-2 DOM steel pipes
Specifications
Place of Origin :
China
Brand Name :
Torich
Certification :
ISO9001,ISO14001,TS16949
Model Number :
EN10305-2
MOQ :
5 TONS
Price :
1200 USD/TON
Packaging Details :
IN BUNDLES
Delivery Time :
30-60 DAYS
Payment Terms :
T/T,L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability :
50000 TONS PER YEAR
Shape :
Round
Material :
Carbon steel
Description

EN10305-2 Welded Precision Cold Drawn Steel Tubes

Applications: for Auto industry/for machinery use/Oil Cylinder Tube/Motorcyle shock absorber Auto shock absorber inner cylinder /Telescopic Cylinder

Size range: O.D.:6-280mm W.T.:1-30mm L:max12000mm

Steel Grade and Chemical Compositions:

Steel Grade C Si Mn P S
Steel name Steel number max max max max max
E155 1.0033 0.11 0.35 0.70 0.025 0.025
E195 1.0034 0.15 0.35 0.70 0.025 0.025
E235 1.0308 0.17 0.35 1.20 0.025 0.025
E275 1.0225 0.21 0.35 1.40 0.025 0.025
E355 1.0580 0.22 0.35 1.60 0.025 0.025

Mechanical properties at room temperature
Steel grade Minimum values for the delivery conditiona b
Steel name (+Cc) (+LCc) (+SR) (+Ad) (+N)
Rm Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A % Rm Mpa A % Rm Mpa ReHe Mpa A %
E155 1.0033 400 6 350 10 350 245 18 260 28 270-410 155 28
E195 1.0034 420 6 370 10 370 260 18 290 28 300-440 195 28
E235 1.0308 490 6 440 10 440 325 14 315 25 340-480 235 25
E275 1.0225 560 5 510 8 510 375 12 390 21 410-550 275 21
E355 1.0580 640 4 590 6 590 435 10 450 22 490-630 355 22


Note: Special steel grade is also available, according to customer request.
