Specifications
Place of Origin :
China
Brand Name :
Torich
Certification :
ISO9001,ISO14001,TS16949
Model Number :
ASTM A178
MOQ :
5 TONS
Price :
1200 USD/TON

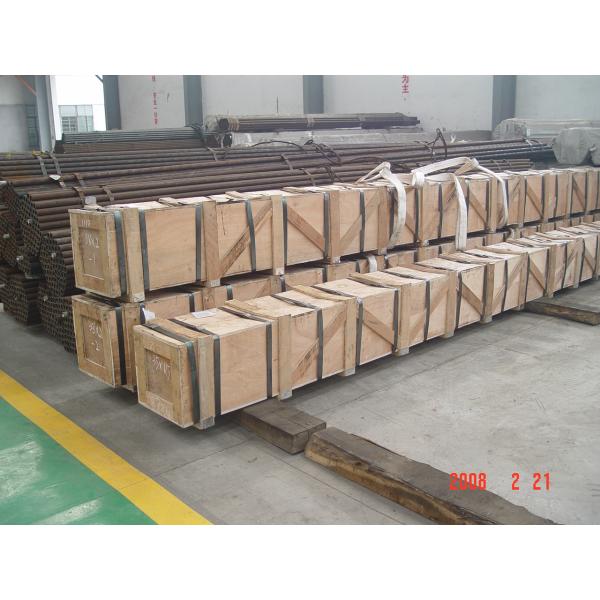

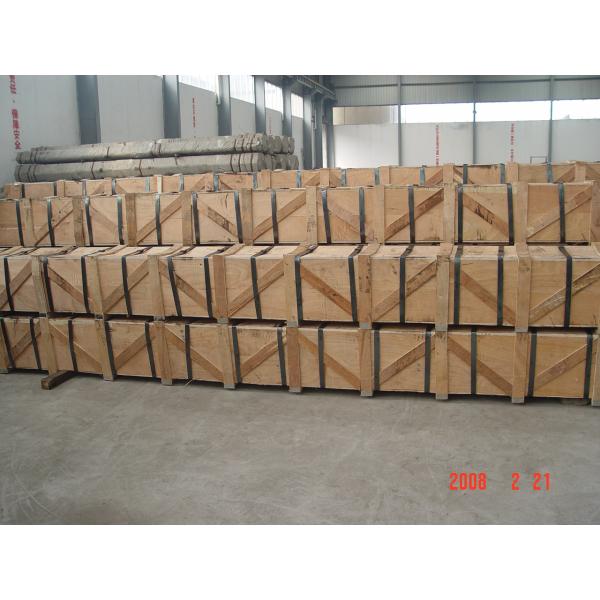

Packaging Details :
IN BUNDLES
Delivery Time :
30-60 DAYS
Payment Terms :
T/T,L/C
Supply Ability :
50000 TONS PER YEAR
Description

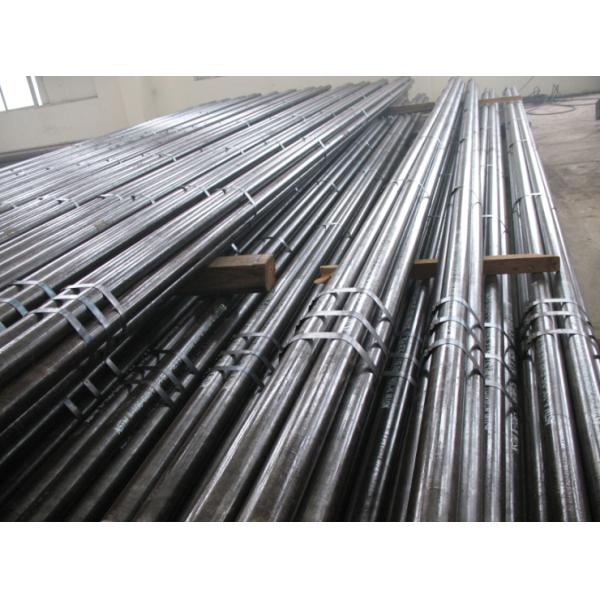

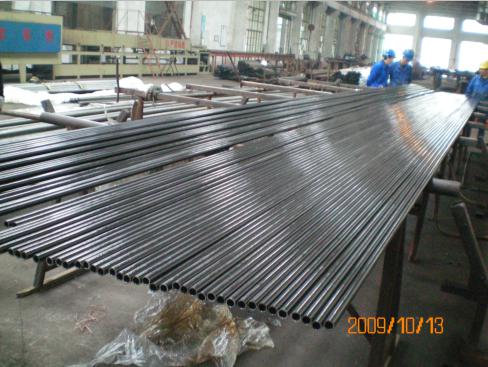

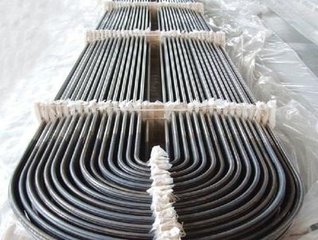

ASTM A178 Electric resistance welded carbon steel and carbon mangaese steel boiler and superheater tubes

Size range: O.D.:6-168mm W.T.:1-15mm L: according to customer requirement
Applications: for Boilers,Superheaters,Heat-Exchangers, Condensers

Steel Grade and Chemical Compositions:
ElementGrade A,
Low-Carbon Steel		Grade C,
Medium-Carbon Steel		Grade D,
Carbon-Manganese
Steel
Carbon0.06-0.180.35 max0.27 max
Manganese0.27-0.630.80 max1.00-1.50
Phosphorus, max0.035 0.0350.030
Sulfur, max0.035 0.0350.015
Silicon--0.10 min

Mechanical PropertiesGrade AGrade CGrade D
Tensil Streghth: min ksi[Mpa] 47[325]47[415]70[485]
Yield Point: min ksi[Mpa] 26[180]37[255]40[275]
Elongation: ≥35%≥30%≥30%

Tolerance for OD and WT(SA-450/SA-450M)
OD in(mm)+-WT in(mm)+-
＜1''(25.4)0.10 0.10 ≤1.1/2''(38.1)20%0
1''～1.1''(25.4～38.1)0.15 0.15 ＞1.1/2''(38.2)22%0
＞1.1/2''～＜2''(38.1～50.80.20 0.20
2''～＜2.1/2''(50.8～63.5)0.25 0.25
2.1/2''～＜3''(63.5～76.2)0.30 0.30
3''～＜4''(76.2～101.6)0.38 0.38
4''～＜7.1/2''(101.6～190.5)0.38 0.64
＞7.1/2～9''(190.5～228.6)0.38 1.14
