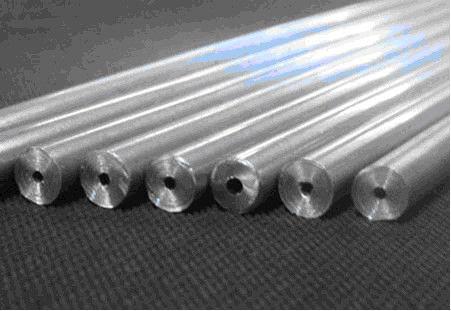

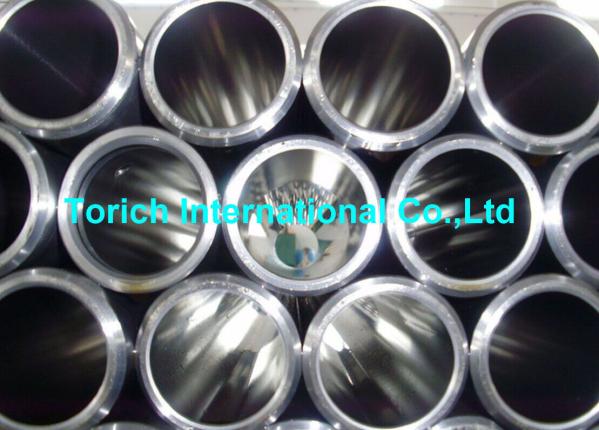

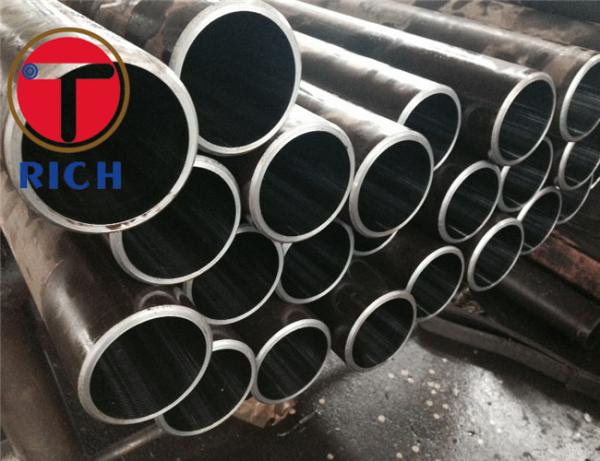

Cold Rolled Hydraulic Cylinder Tube for Telescopic Systems E235 +SRA CDS
Cold Rolled Hydraulic Cylinder Tube for Telescopic Systems E235 +SRA CDS
Cold Rolled Hydraulic Cylinder Tube for Telescopic Systems E235 +SRA CDS
Cold Rolled Hydraulic Cylinder Tube for Telescopic Systems E235 +SRA CDS
Cold Rolled Hydraulic Cylinder Tube for Telescopic Systems E235 +SRA CDS
Cold Rolled Hydraulic Cylinder Tube for Telescopic Systems E235 +SRA CDS
Specifications
Place of Origin :
China
Brand Name :
Torich
Certification :
IS09001 ISO14001 TS16949
Model Number :
EN10305-1
MOQ :
1TONS
Packaging Details :
IN BUNDLES
Delivery Time :
30-60DAYS
Payment Terms :
30%T/T in advance 70% paid before shipment
Supply Ability :
50000 TONS PER YEAR
Description

EN10305-1 E235 +SRA CDS Hydraulic Cylinder Tubes for Pneumatic Cylinders Tube and Telescopic Systems

Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes

Steel tubes for precision applications.


Applications: for Auto industry/for machinery use /Oil Cylinder Tube/Motorcyle shock absorber
Auto shock absorber inner cylinder/Telescopic Cylinders


Size range: O.D.:6-350mm W.T.:1-35mm L:max12000mm

Production: Cold Drawn + Honing + Skiving + Roller Burnish

Steel Grade and Chemical Compositions:

Steel Grade C Si Mn P S Al
Steel Name Steel Number max max max max max min
E215 1.0212 0.10 0.05 0.70 0.025 0.025 0.025
E235 1.0308 0.17 0.35 1.20 0.025 0.025 -
E355 1.0580 0.22 0.55 1.60 0.025 0.025 -

Mechanical properties at room temperature
Steel Grade Minimum values for the delivery condition
Steel Name steel Nubmer (+Cc) (+LCc) (+SR) (+Ad) (+N) NBK
Rm Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A %
E215 1.0212 430 8 380 12 380 280 16 280 30 290-430 215 30
E235 1.0308 480 6 420 10 420 350 16 315 25 340-480 235 25
E355 1.0580 640 4 580 7 580 450f 10 450 22 490-630 355 22

Note: Special steel grade is also available, according to customer request.
