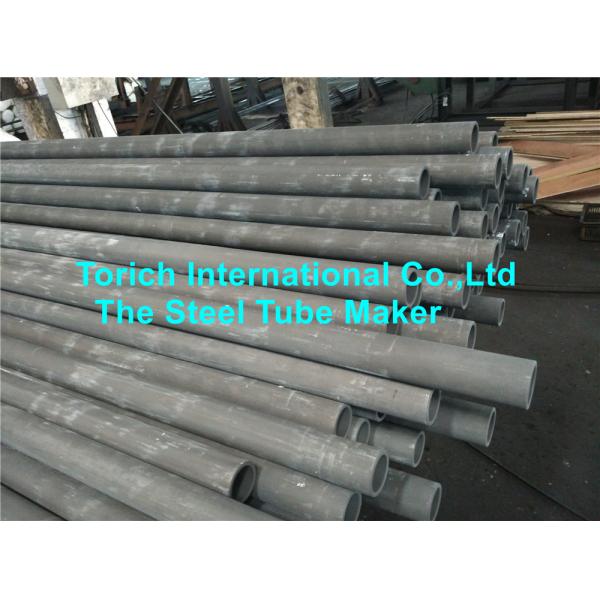

Stock material Baosteel SA213 T91 38X5mm
Stock material Baosteel SA213 T91 38X5mm
Specifications
Brand Name :
Torich
Model Number :
SA213 T91
Certification :
TS16949,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
5000tons per year
Delivery Time :
5-8 week days
Packaging Details :
In bundles
Description

Stock material Baosteel SA213 T91 38X5mm

Torich is a manufacture of T9, T11, T12, T21, T22, T91 stainless grades in TP304 or TP316 tubes for over 20 years,

T91 alloy pipe belongs to the seamless steel pipe of ferritic and Austrian alloy steel for boilers, superheating and heat exchangers (ASTM A213 /A213M-07a)

Use: It is used for heating surface pipes of low and medium pressure boilers (the working pressure is generally not greater than 5.88MPa, and the working temperature is below 450℃); it is used for heating surface pipes of high-pressure boilers (the working pressure is generally above 9.8MPa, and the working temperature is between 450℃ and 650℃), economizers, superheaters, reheaters, pipes for the petrochemical industry, etc.

T91 alloy tube heat treatment: The final heat treatment of T91 is normalizing + high temperature tempering, the normalizing temperature is 1040℃, the heat preservation time is not less than 10 min, the tempering temperature is 730~780℃, and the heat preservation time is not less than 1h. The tissue after the final heat treatment is tempered martensitic.

1.Chemical components:

C Mn P≤ S≤ Si Cr Mo
T5 ≤0.15 0.3-0.6 0.025 0.025 ≤0.5 4-6 0.45-0.65
T11 0.05-0.15 0.3-0.6 0.025 0.025 0.5-1 1-1.5 0.44-0.65
T12 0.05-0.15 0.3-0.61 0.025 0.025 ≤0.5 0.8-1.25 0.44-0.65
T22 0.05-0.15 0.3-0.6 0.025 0.025 ≤0.5 1.9-2.6 0.87-1.13


2.Mechanical Properties:

Tensile Strength Yield Strength Elongnation
T12 415 MPa 220 MPa 30%
T5 415 MPa 205 MPa 30%
T11 415 MPa 205 MPa 30%
T22 415 MPa 205 MPa 30%

3.Outside Diameter and Tolerance:

Outside Diameter OD Tolerance WT Tolerance Ovality Tolerance Cut Length Tolerance
OD≤ 12, 7 mm ± 0, 13 mm ± 15 % – + 3, 18 mm, – 0 mm
12, 7 mm < OD ≤ 38, 1 mm ± 0, 13 mm ± 10 % max, 1, 65 mm + 3, 18 mm, – 0 mm
38, 1 mm < OD ≤ 88, 9 mm ± 0, 25 mm ± 10 % max, 2, 41 mm + 4, 76 mm, – 0 m

What TORICH do:
1. Producing Steel Tubes
2. Selling both on Domestic and International Market
3. Precisely Targeting Customers’ Requirement- Sourcing the right factory for right products for Customers
