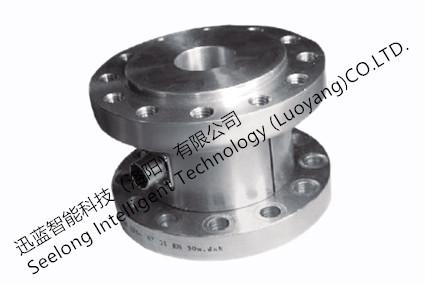

500μS 15000rpm Digital Torque Flange For Pump
500μS 15000rpm Digital Torque Flange For Pump
Specifications
Brand Name :
SeeLong
Model Number :
SLFN-500
Certification :
CMC
Place of Origin :
Luoyang China
MOQ :
1
Price :
USD 2939dollar
Payment Terms :
T/T
Supply Ability :
20 pcs per month
Delivery Time :
10-15days
Packaging Details :
300mmF*300mm*200mm wooden box
measuring range :
500Nm
accuracy class :
0.2%
working speed :
0-15000rpm
overload capacity :
120%
response frequency :
500 μ s
lag :
<0.1%
relative humidity :
<90%RH
temperature range :
-10-70℃
Description

SLFN 500nm 0.2%FS Economical Torque Flange

SLFN-500 0-15000rpm 0.2%FS economical torque flange for pump

Torque sensors

Flange is a pipe and pipe connected parts, used for the connection between the pipe ends;
It is also useful for the flange on the inlet and outlet of equipment for the connection between two devices.
Flanged connection is an important connection way of pipeline construction. Flanged connection is easy to use and can withstand greater pressure. In a boiler room or production site, there are pipes and equipment with flange connection everywhere.
Flange cover, also known as blind plate or pipe plug, is a flange without a hole in the middle, used to plug the pipe opening.
It has the same function as the head and pipe cap, but the blind seal is a removable sealing device, and the seal of the head is not ready to be opened again.


Product features

  1. High torsional stiffness
  2. Accuracy grade is 0.1%
  3. Reliable and durable
  4. Positive and negative turn marked
  5. Easy to assemble and handle
  6. Very short axial length
  7. To meet the requirements of special version design



Technical parameter

Measuring range

0±50N.m ±100N.m ±200N.m ±500N.m ±1000N.m

±2000N.m ±5000N.m ±1 万 N.m

Output signal

5-15KHZ 0-10V 4-20mA

Overload capacity

120%

Accuracy

0.5% 0.2%

Power supply

24VDC

Optimum operating Speed

0-15000 rpm

Response frequency

500μs

Insulation resistance

＞200MΩ

Zero drift

＜0.5%

Repetitive

＜0.1%

Linear

＜0.1%

Lag

＜0.1%

Environment temperature

-40-60℃

Relative humidity

＜90%RH

Temperature range

-10-70℃

Amplitude of transmitter

10V

Storage temperature range

-25-80℃

Transducer power consumption

≈4W

Sensor current consumption

100MA

Sensor shell

Strong anodized aluminum

The response time of the strain gauge dynamic strain wave

3.2X10-6s



Layout

500μS 15000rpm Digital Torque Flange For Pump
