SLNC 10000-20000nm 0.5%FS 4000rpm Economical Torque Flange

Torque sensors

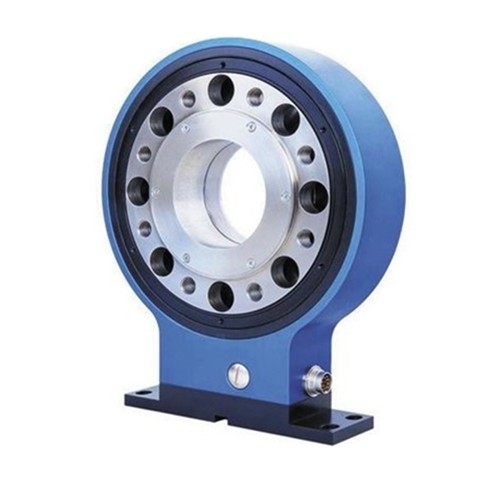

SLFN flange torque sensor is a new type of torque and speed sensor designed for small axial installation space and high speed occasions. Its axial size is 60-200mm. The flange shaft output has high torque measurement accuracy and wide application range of speed. It can measure torque, speed and power dynamically and statically.

Product features

1. The power supply and signal transmission are non-contact.

2. No bearing, wide range of speed.

3. The connection with power shaft and load shaft is rigid connection.

4. It is convenient to install and debug. The radial runout of the user's shaft is less than 0.05mm, and the axial movement is less than 0.5mm. The adjusting bolt at the bottom of the sensor can easily adjust the installation clearance.

5. This model has two kinds of output with 485 bus and without 485 bus: standard type without 485 port; bus type with 485 port, USB data line of computer and measurement software of upper computer.

6. This model of products are dynamic balance before delivery, suitable for high speed.

Characteristic

• Built in digital measurement signal conditioning unit, through contactless transmission, the data is directly output in standard analog or digital signal mode
• Strong anti-interference ability
• The rotor rotates in the stator ring, no mechanical bearing is allowed, so there is no wear.
• 0.5 or 0.1 precision level, optional current, voltage or frequency signal output
• High precision magnetoelectric angle / speed measuring unit, dust and moisture proof
• Parameter identification, setting, measurement and zero balance of sensor are realized through RS-485 interface
• Very small axial size compact flange flange connection design
• Digital non-contact signal transmission, no bearing, no maintenance, system self-test function

Technical parameter

• Output signal: 5-15kHz/ 0-10V /4-20mA /RS485
• Overload capacity: 120%
• Accuracy class: 0.5%
• Power supply: 24 VDC
• Working speed: 0-4000 rpm
• Response frequency: 100 μ s
• Insulation resistance: > 200m Ω
• Zero drift: < 0.5% 10. Repeatability: < 0.2%
• Linearity: < 0.2%
• Lag: < 0.1%
• Ambient temperature: - 40-60 ℃
• Relative humidity: < 90% RH
• Operating temperature range: - 10-70 ℃
• Storage temperature range: - 25-80 ℃
• Sensor amplitude: 10V
• Sensor power consumption: ≈ 4W
• Current consumption of sensor: 100mA
• Response time of dynamic strain wave of strain gauge: 3.2x10-6s
• Sensor housing: strongly anodized aluminum
