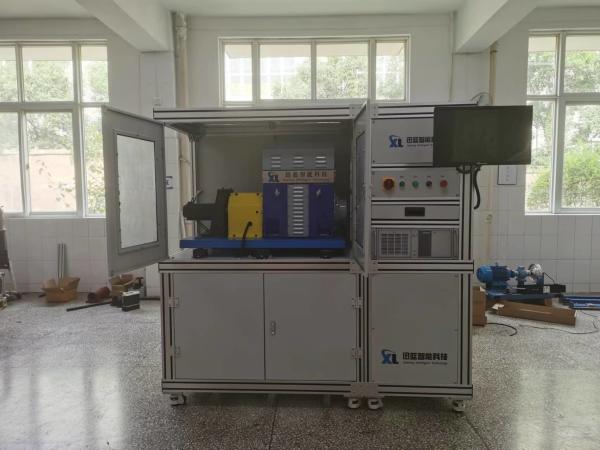

SSCH30-4000/18000 30Kw motor performance dyno Test bench system

Product introduction

The new energy vehicle motor test bench system can realize the speed and torque control through the real-time controller, simulating the actual load. The main control system can communicate with the environment bin, power analyzer, cooling system, EUT, etc., and achieve control. The data acquisition system collects the signals of torque sensors, vibration sensors, temperature sensors, pressure sensors and other sensors, and transmits them to the main control system at a high speed. The sensor data can be displayed, saved and processed in the software interface.

• Basic measurement items:

  Main test contents: no-load test, load efficiency test, locked-rotor test, motor temperature, motor temperature rise, overload capacity test, maximum working speed, overspeed test, motor controller protection test, etc.

• Functional characteristics

  Full digital processing and control, improve the anti-interference ability of the system.

  High measurement accuracy and fast response speed.

  Software features comprehensive, user-friendly interface.

  Meet the content of national standard test method.

  The software is compiled in strict accordance with national standards and can generate various sub-reports and summary reports.

  High reliability and good stability.

Basic Parameters(Customizable)

System integration and cabinet

The system adopts a special cabinet, including fuses, contactors, etc. The motor cable adopts high-grade power cable, and the signal cable adopts double-shielded twisted pair wire to eliminate interference. It contains a high-power cooling fan, which can ensure the safe and stable operation of the system.

.
