Motor Control Solutions - PMSM Motor
Motor Control Solutions - PMSM Motor
Specifications
Brand Name :
SEELONG
Model Number :
SSCG15-2984/7000
Certification :
CMC
Place of Origin :
China Luoyang
MOQ :
1
Price :
Confidential
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
8-12 weeks
Packaging Details :
1200mmX2000mmX1800mm wooden box per set
Rated power :
15kW
Max power :
30kW
Rated torque :
48Nm
Max torque :
150Nm
Max speed :
7000rpm
Description

Motor Control Solutions- PMSM Motor

Introduction

Permanent magnet motor is a kind of synchronous motor. Its rotor uses permanent magnet. The stator generates electromagnetic torque to drive the magnetic field of the rotor to rotate around the axis. The magnetic fields of the stator and rotor are synchronous. Permanent magnet synchronous motor is widely used in domestic electric vehicles.

Product feature

High efficiency and more power saving. Compared with three-phase asynchronous motor, permanent magnet synchronous motor not only has higher efficiency at rated power point, but also has higher average efficiency in the whole speed regulation range. The excitation magnetic field of permanent magnet synchronous motor is provided by permanent magnet. The rotor does not need excitation current and the motor efficiency is improved. Compared with asynchronous motor, electric energy is saved at any speed point, especially at low speed. In short, permanent magnet synchronous motor is more power-saving and helps to improve the driving range of electric vehicles.​

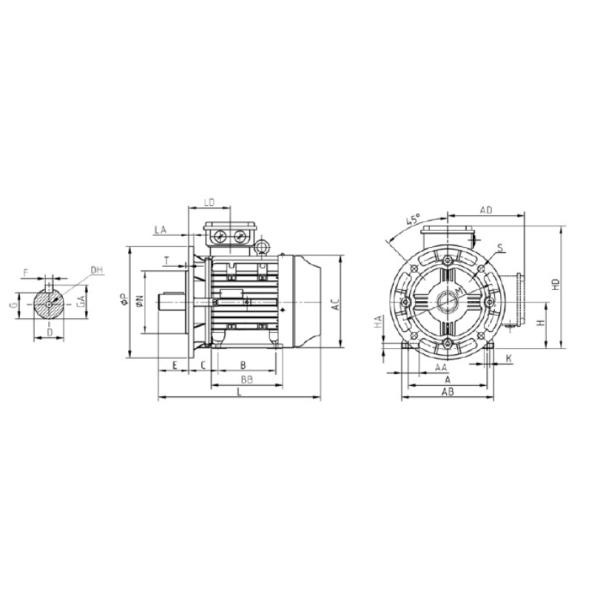

Product drawing

Motor Control Solutions - PMSM Motor
