High Capacity Tortilla Producing Equipment for tortilla Food supplier
High Capacity Tortilla Producing Equipment for tortilla Food supplier
High Capacity Tortilla Producing Equipment for tortilla Food supplier
High Capacity Tortilla Producing Equipment for tortilla Food supplier
High Capacity Tortilla Producing Equipment for tortilla Food supplier
High Capacity Tortilla Producing Equipment for tortilla Food supplier
Specifications
Brand Name :
SSS
Model Number :
Customized
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
66000
Payment Terms :
L/C, T/T, D/A
Supply Ability :
100 SETS A MONTH
Delivery Time :
35 DAYS
Packaging Details :
Wooden Box
Material :
Stainless Steel
Dimension(L*W*H) :
7630mm*695mm*1680mm
Capacity :
1500-3600pcs/h
Voltage :
220v/380v
Power :
40kw
Warrant :
1 year
Application :
Grain products
Description
Product Description

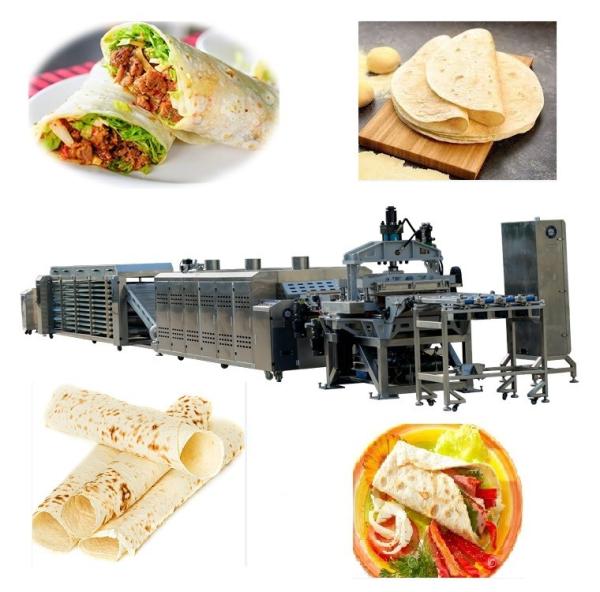

Flour Corn Tortilla Production Line Making Equipment For Sale
Main features

1) Automatic conveying of dough ball to haydraulic heating forming chamber.
2) Hydraulic pressing system perfectly to press dough ball into flat tortilla.
3) Baking oven conveyor belt is from famous brand and heat-resistant, which prevent tortila surface from sticking on conveyor belt.
4) Running in a high automatization and intellectualization,no pollution.
5) 3*6 meters cooling line.
Technical Data
Model
SSS-BP-60
Capacity
2000-3800pcs/hour
total running power
42.57kw
dimension
26000x2030x1915mm
diameter of product
≤270mm
gas consumption
4-14m³/hour

Constituent parts of each machine in tortilla production line
1: The roller consists of first rolling component, second rolling component, third rolling component, rolling mechanism, and
conveying mechanism.
2: The dough divider is composed of knife assembly, conveying mechanism and dividing device.
3: The conveying table is composed of conveying mechanism.
4: The press machine consists of upper and lower heating plates, hydraulic mechanism, high temperature conveyor belt and conveyor
chain.

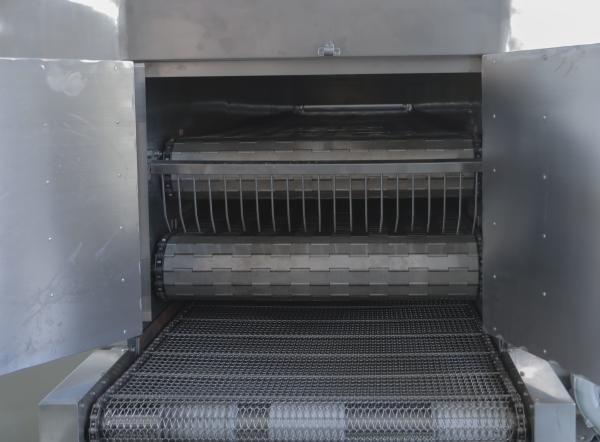

5: The oven consists of electric heating tube, chain plate, and conveyor chain.
6: The cooling conveyor consists of cooling chain, conveying motor, and cooling fan.
7: The counter stacker consists of photoelectric counting mechanism, conveying mechanism and pneumatic device.

High Capacity Tortilla Producing Equipment for tortilla Food supplier

High Capacity Tortilla Producing Equipment for tortilla Food supplier
High Capacity Tortilla Producing Equipment for tortilla Food supplier
High Capacity Tortilla Producing Equipment for tortilla Food supplier
High Capacity Tortilla Producing Equipment for tortilla Food supplier
Detailed Images
1. The design is humanized and compact;
2. Microcomputer control, easier to operate;
3. Can produce products with different sizes;
4. Accurate positioning;
5. High-quality stainless steel and food-grade polymer materials are used in contact with food.

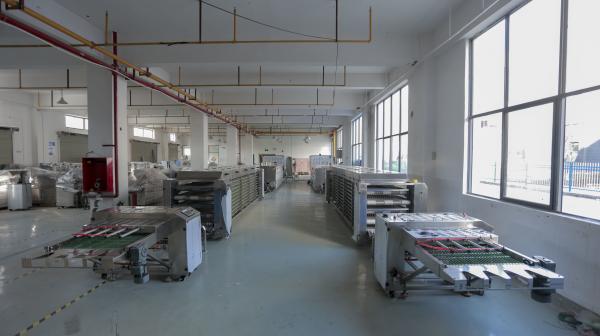

Exhibition & Customers
Packing&Shipping
packing:
This machine is packed with film before packing into plywood box, and box is stable and firm enough to adapt all kinds of
transportation.

shipping:
we will ship the machine as per custimers' request including by sea, by air, by truck, by train, etc.
After Sales Service
Professional & first-class service
1. Assistance to set up new factory
2. Repair and maintenance if any problem occured in warranty
3. Installation, commissining and training
4. Spare parts and wear parts free or with big discount
4. Any feedback of machines will be lisened and we will try our best to support
5. Other cooperation service
Technology knowledge share
Advice for setting up factory
Company Introduction
SSS FOOD MACHINERY TECHNOLOGY CO.,LTD. is a leading supplier of food processing machinery in China. We devote ourselves to research and develop the equipment including not only common types but also customized ones, our distinguished advantage is we can produce & design equipment as per your real situation and provide you with flexible solutions.

Our service ranges from design and manufacture to sale as well as consultation. We are mainly specialized in bread processing equipment, fish processing equipment, vegetable & fruit processing equipment etc.

Our senior engineers have more than 20 years' professional experience in the field. Taking advantage of advanced technology and innovative design conception as well as rich experience in food processing machinery, we have been providing the highest level equipment for customers from all over the world. Our main markets are Russia, UK, USA, Brazil, New Zealand, Southeast Asia, Australia and so on.

Over the past years, we have become a long-term supplier for many food companies and helped many fish and food plants establish their production lines. Based on superior quality, competitive price and the best service, we have gained great approval from customers.

FAQ
Q: what's the packing of the machine?
A.In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.

Q: What's the payment term?
A.Usually by T/T ( 30% in advance, the balance against the copy of B/L),or L/C at sight.

Q: Can I change the motor as my local voltage?A.We can change the voltage as your requirement, and there's no extra charge.

Q: How do your control quality?
A.We have an inspection team to check the products at all stages of the manufacturing process.

Q:What is the min order quantity?
A.Our moq is 1 unit, and we can provide you with discount if more units are ordered.
