Fruit Puree Production Line For PET Bottle Fruit Juice Making
Fruit Puree Production Line For PET Bottle Fruit Juice Making
Fruit Puree Production Line For PET Bottle Fruit Juice Making
Fruit Puree Production Line For PET Bottle Fruit Juice Making
Specifications
Brand Name :
sss
Model Number :
customized
Place of Origin :
china
MOQ :
1
Price :
usd300000/set
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per year
Delivery Time :
80
Packaging Details :
standard export packing
name :
Fruit Puree Production Line For PET Bottle Fruit Juice Making
capacity :
2t/h
material :
stainless steel for frame
application :
fruit jucie making
moq :
1set
product packing :
pet bottle
Description

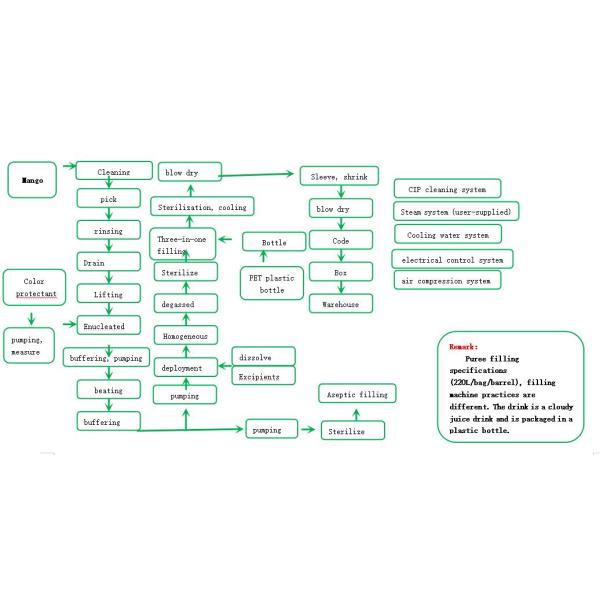

Fruit Puree Production Line For PET Bottle Fruit Juice Making

pretreatment for raw fruit

1
Bubble cleaning machine + ozone
Ø capacity:2T/H；
Ø SS304, Thickness 2.5mm；
Ø SS304 square steel for frame
Ø Equipped with cleaning hand hole, sewage outlet and overflow outlet;
Ø Using 304 stainless steel scraper for conveying and lifting;
Ø Air pump: 5M3/min;
Ø Motor mechanical stepless speed regulation motor;
2
Picking, Conveyor
Ø capacity:2T/H
Ø SS304, Thickness
Ø The belt is food grade;
Ø SS304 square tube for Main frame;
Ø Conveyor belt: food grade PU material;
Ø Motor: Mechanical stepless speed regulation motor
3
Bubble rinse machine (pure water)
Ø capacity:2T/H；
Ø SS304, Thickness 2.5mm；
Ø SS304 square steel for frame
Ø Equipped with cleaning hand hole, sewage outlet and overflow outlet;
Ø Using 304 stainless steel scraper for conveying and lifting;
Ø Air pump: 5M3/min;
Ø Motor mechanical stepless speed regulation motor;
4
Drain and blow dryer
Ø Output: 2T/h
Ø The frame is made of rectangular square tube, and the material is 304;
Ø Using 304 stainless steel mesh belt;
Ø The top is equipped with multiple sets of fans to blow water on the surface of the fruit;
Ø Material conveying method: mesh belt conveying;
Ø Motor brand: Jiangsu Kaibo Machinery stepless speed regulation motor;
Ø There is a water tray at the bottom;
5
High lift
Ø Output: 2T/h
Ø Smooth scraper baffle, water seepage structure;
Ø Made of 304 stainless steel;
Ø 304 square tube frame;
Ø Adopt chain drive mechanism;
6
Denuclearizer
Ø The contact part between the main body and the material is 304 stainless steel structure
Ø Integrated Italian technology, multiple sets of cross-blade structure, can effectively improve the extraction rate of original
sauce
Ø It is used to crush the original fruit into small particles of 5-10mm, which is convenient for later juicing.
Ø In order to reduce the loss of nutrients in the fruit, the design adopts the cold crushing process at room temperature.

Fruit Puree Production Line For PET Bottle Fruit Juice Making

Fruit Puree Production Line For PET Bottle Fruit Juice Making
