Specifications
Brand Name :
TouchDisplays
Model Number :
1851E-IDT
Certification :
CE/FCC RoHS (UL & GS customized)
Place of Origin :
China
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000 units per month
Size :
18.5 inch 16:9
Resolution :
1366*768
Support :
Cash Drawer/Printer/Scanner/Second Display/VFD/Card Reader
Wide viewing Angle :
±85° or 170° total

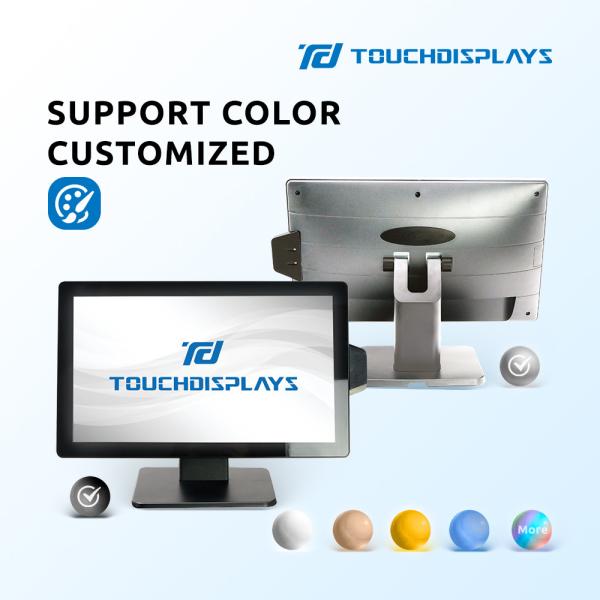

Color :
Black/White/Silver/Custom
Material :
Aluminum
Description

18.5 INCH TOUCHDISPLAYS ALL IN ONE WINDOWS POS SYSTEM

Point of sales (POS) machines are placed in different environments or other self-service scenarios to calculate the amount. Equipped with 16:9 wide screen format,
touch base LCD panel, this big size POS allows more content on a 18.5-inch display, ideal for retail and HORECA applications where a large screen is required.
1366×768 Resolution 18.5 inch Touch Screen Toll System
1366×768 Resolution 18.5 inch Touch Screen Toll System

• 18.5" widescreen with PCAP touch

• Fanless operation with Intel processor

• Multiple peripherals optional

• Optimal Resolution 1366*768(16:9)

• Wide viewing Angle ±85° or 170° total

HIGH LIGHT

• Windows based POS system, can be compatible with windows 7/8/10/XP

• Concealed wiring, confined space for dust-proof

• Adjustable view angle design provide a comfortable operating experience

• Elegant,fashionable and curved appearance, makes the usage occasion more diversified;

• Extensible external equipment,makes customer’s choices more diversified

 1366×768 Resolution 18.5 inch Touch Screen Toll System
1366×768 Resolution 18.5 inch Touch Screen Toll System

1851E comes with 4Gb memory, expandable to 8Gb or 32Gb, and 128Gb SSD for reliability.

CPU options:

ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)

ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)

ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

Wide ranges intel processor from Gen 4th-7th available.

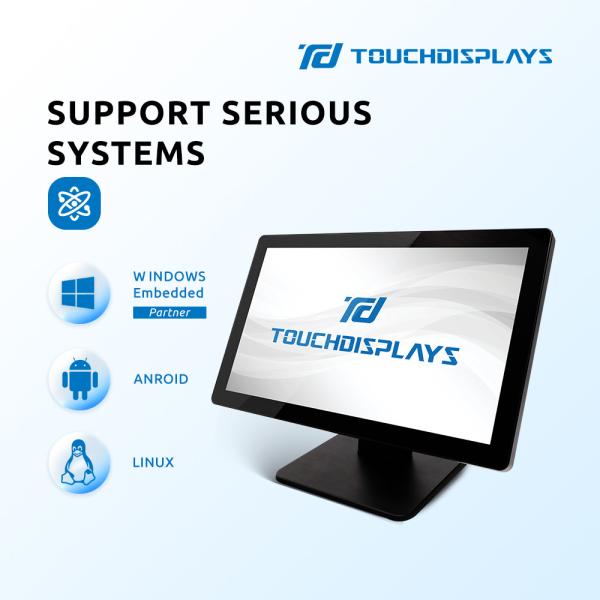

Operating system:

Windows/ Android/Linux

Optimal Resolution:

1366*768(16:9)
1366×768 Resolution 18.5 inch Touch Screen Toll System

THE INSTALLATION

1851E offers multiple mounting options to ensure installation flexibility including: wall, hanging bracket and pole mount via standard VESA mount patterns also with the use of the desktop stand.

 1366×768 Resolution 18.5 inch Touch Screen Toll System

1366×768 Resolution 18.5 inch Touch Screen Toll System

Support 2 line VFD and 11.6” &15.6” LCD customer display.

And more peripherals available like MSR, Camera, RFID, Barcode Scanner and so on.

INTERFACE

1366×768 Resolution 18.5 inch Touch Screen Toll System

APPLICATION

1366×768 Resolution 18.5 inch Touch Screen Toll System

SPECIFICATION

Model 1851E-IDT
Case/Bezel Color Black/Silvery/white(Customized)
Display Size 18.5"
Touch panel Projected Capacitive touch screen
Touch response time 8ms
Touchcomputors Dimensions 460.83 x 232.48 x 335.11 mm
LCD Type TFT LCD(LED backlight)
Useful Screen Area 409.8 mm x 230.4 mm
Aspect ratio 16:9
Optimal (native) Resolution 1366 x 768
LCD panel Pixel pitch 0.3 x 0.3mm
LCD panel Colors Depth 16.7M
LCD panel Brightness 250 cd/㎡
LCD panel Response Time 14 ms
Viewing Angle
(typical, from center)		 Horizontal ±80° or 160° total
Vertical ±80° or 160° total
Contrast Ratio 1000:1
output Video connector Mini D-Sub 15-Pin VGA type and HDMI type (optional)
Input interface usb 2.0*2 & usb 3.0*2 & 2*COM(3*COM optional)
1*Earphone1*Mic1*RJ45(2*RJ45 optional)
Extend interface usb2.0usb3.0comPCI-E(4G SIM card, wifi 2.4G&5G & Bluetooth module optional)M.2(for CPU J4125)
Power Supply Type Monitor input: +12V DC ±5%,5.0 A; DC Jack(2.5￠)
AC to DC power brick input: 90-240 VAC, 50/60 Hz
Power Consumption: Less than 40W
ECM
(Embed Computer Module)		 ECM3: Intel processor (J1900&J4125)
ECM4: Intel processor i3(4th -10th) or 3965U
ECM5: Intel processor i5(4th -10th)
ECM6: Intel processor i7(4th -10th)
Memory:DDR3 4G-16G Optional;DDR4 4G-16G Optional (Only for CPU J4125) ;
Storage:Msata SSD 64G-960G optional or HDD 1T-2TB optional;
ECM8: RK3288; Rom:2G; Flash:16G; Operation System: 7.1
ECM10: RK3399; Rom:4G; Flash:16G; Operation System: 9.0
Temperature Operating: 0°C to 40°C ;Storage -20°C to 60°C
Humidity (non condensing) Operating: 20%-80%; Storage: 10%-90%
Shipping Carton Dimensions 540*260*426 mm(with stand)
Weight (approx.) Actual: 6.65 kg ;Shipping: 7 kg
Warranty Monitor 3 years(Except for LCD panel 1 year)
Backlight lamp life: typical15,000 hours to half brightness
Agency Approvals CE/FCC/RoHS (UL & GS & CB & TUV customized)
Mounting Options 75 mm and 100mm VESA mount
