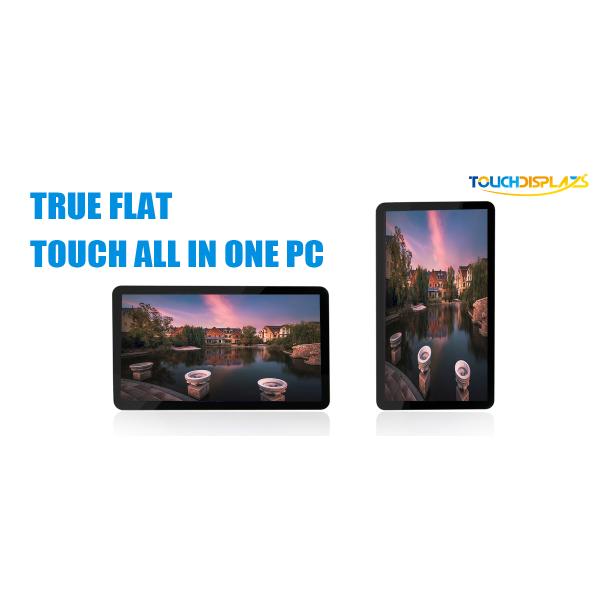

477.8mmx269.3mm 250cd/M2 Digital Kiosk Touch Screen
477.8mmx269.3mm 250cd/M2 Digital Kiosk Touch Screen
Specifications
Brand Name :
TouchDisplays
Model Number :
2151E-IOT
Certification :
CE/FCC/RoHS
Place of Origin :
China
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000 units per month
Packaging Details :
598mm*184mm*444mm(2pcs)
Brightness :
250 cd/m 2 (customized upto 1000 cd/m 2 optional) 400 cd/m 2 (customized upto 1500 cd/m 2 optional)
Touch Technologies :
PCAP (10 touch), Infrared (10 touch), 5 wire resistive single touch
Temperature :
Operating: 0°C to 40°C ;Storage -20°C to 60°C
Touch panel :
Projected Capacitive Touch Screen
Case/Bezel Color :
Blackwhite
Mounting Options :
75 mm and 100 mm VESA mount
Description

KIOSK TOUCH SCREEN DIGITAL MONITOR INTERACTIVE MUTI-MEDIA LCD TOTEM INFORMATION ADVERTISING DISPLAY INDOOR RESTAURANT

LED direct-lit backlight with uniform brightness and no boundary shadow.

Resolution: 1920 x 1080

High display resolution, and delicate image with rich color;

High definition, high brightness, high color gamut DID LCD screen with 178° wide angle.

Large display area with light weight Longer display lifespan

Multiple jointing methods, applicable for various scenes.

Stable running and low maintenance cost, support 24 hours continuous workring.

Metal case enhances the function of anti-radiation, anti-magnetic filed and strong electric field interference.

477.8mmx269.3mm 250cd/M2 Digital Kiosk Touch Screen

477.8mmx269.3mm 250cd/M2 Digital Kiosk Touch Screen

Multimedia function supported playing photoes, music, 1080P high resolution video through USB hot plug

The terminal is compact in size yet powerful in performance. Powered by Intel®’s latest high-performance processors, delivers powerful performance and reliable operation enough to run today’s demanding POS applications. It can serve customers faster at increased speed with efficiency while improving the customer checkout experience.

 477.8mmx269.3mm 250cd/M2 Digital Kiosk Touch Screen
477.8mmx269.3mm 250cd/M2 Digital Kiosk Touch Screen

477.8mmx269.3mm 250cd/M2 Digital Kiosk Touch Screen

INTERFACE

Multiple I/O interfaces are offered on the terminal including HDMI/VGA, USB, Rj45, Mic and others. Connect it to all the peripheral devices that meet your business needs.

477.8mmx269.3mm 250cd/M2 Digital Kiosk Touch Screen

PERIPHERALS

Beyond the powerful PACP multi touch screen display, multiple peripherals are available to meet all kinds of applications, including near-field communication (NFC/RFID), mag strip reader (MSR) thermal printers and others. Built-in WiFi and bluetooth make it able to be connected anytime and anywhere

APPLICATION

477.8mmx269.3mm 250cd/M2 Digital Kiosk Touch Screen

SPECIFICATION

Model 2151E-IOT-F
Case/Bezel Color Blackwhite
Display Size 21.5″
Touch panel Projected Capacitive Touch Screen
Touch points 10
Touch response time 8ms
TouchAIO Dimensions 524 x 46 x 315.5 mm
LCD Type TFT LCD(LED backlight)
Useful Screen Area 477.8 mm x 269.3 mm
Aspect ratio 16:9
Optimal (native) Resolution 1920*1080
LCD panel Pixel pitch 0.1875 x 0.1875 mm
LCD panel Colors 16.7 million
LCD panel Brightness 250 cd/m2
LCD panel Response Time 16 ms

Viewing Angle

(typical, from center)

 Horizontal ±89° or 178° total (left/right)
Vertical ±89° or 178° total (up/down)
Contrast Ratio 3000:1
output Video signal connector Mini D-Sub 15-Pin VGA type and HDMI type
Interface usb 2.0*4(usb 3.0*2 optional)PCI-E(4G SIM card, wifi and Bluetooth optional)
Earphone*1Mic*1Com*3RJ45*1
Power Supply Type Monitor input interface: +12VDC ±5%,6.0 A; DC Jack (2.5￠)
AC to DC power brick input: 100-240 VAC, 50/60 Hz
Power Consumption: 50W

ECM

(Embed Computer Modul)

ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)

ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)

ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

SATA3: HDD 500G(up to 1TB optional) or SDD 32G(up to 128G optional)

Memory: DDR3 4G(extend up to 16G Optional)

CPU Upgrade:J3160 & I3-I7 series 5th 6th 7th optional

Operation System:Win7Pos Ready7Win8XPWinCEVistaLinux

ECM9: Cortex-A53 8Core 1.5GHz;GPU: PowerVR G6110

Rom:1G(up to 2G4G optional);Flash:8G(up to 32G optional)

Operation System: 5.1 or 6.0
Temperature Operating: 0°C to 40°C ;Storage -20°C to 60°C
Humidity (non-condensing) Operating: 20%-80%; Storage: 10%-90%
Shipping Carton Dimensions 620 x 206 x 456 mm (2 PCS)
Weight (approx.) Product Actual: 5.1 kg(1 Piece) ;Shipping: 13.2 kg( 2 PCS)
Warranty Monitor 3 years(Except for LCD panel 1 year)
Backlight lamp life: typical 50,000 hours to half brightness
Agency Approvals CE/FCC/RoHS (UL or GS for Customized)
Mounting Options 75 mm and 100 mm VESA mount

Projected Capacitive Touch Screen
