Intel I7 18.5 Inch Capacitive POS System PC For Business
Intel I7 18.5 Inch Capacitive POS System PC For Business
Intel I7 18.5 Inch Capacitive POS System PC For Business
Intel I7 18.5 Inch Capacitive POS System PC For Business
Intel I7 18.5 Inch Capacitive POS System PC For Business
Intel I7 18.5 Inch Capacitive POS System PC For Business
Intel I7 18.5 Inch Capacitive POS System PC For Business
Intel I7 18.5 Inch Capacitive POS System PC For Business
Intel I7 18.5 Inch Capacitive POS System PC For Business
Intel I7 18.5 Inch Capacitive POS System PC For Business
Intel I7 18.5 Inch Capacitive POS System PC For Business
Intel I7 18.5 Inch Capacitive POS System PC For Business
Specifications
Brand Name :
TouchDisplays
Model Number :
1851E-IDT
Certification :
RoHS\ISO9001\ISO 9001:2000\ce\FCC
Place of Origin :
China
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000 units per month
Series :
For Business
Display Size :
18.5 inches
Style :
True Flat
Touch response time :
8ms
Contrast Ratio :
1000:1
Output Video Connector :
Mini D-Sub 15-Pin VGA type and HDMI type
Description

18.5 Inch capacitive Table Pos System Restaurant Touch Screen Point Of Sale

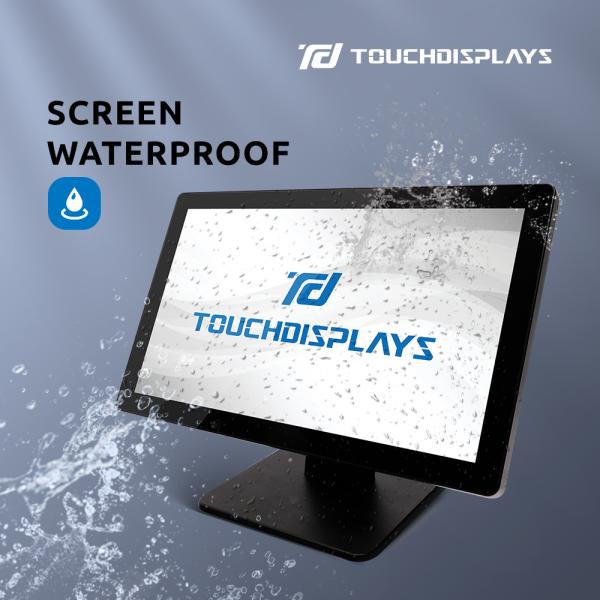

18.5 inch widescreen touchscreen all in one POS is built to withstand the continuous public use with a rugged design.

Its stylish, slim and modern look, coupled with the extendable customization of more interfaces,

makes 1851E POS an attractive solution for commercial POS requirements.

Intel I7 18.5 Inch Capacitive POS System PC For Business
Intel I7 18.5 Inch Capacitive POS System PC For Business

Features

Simple operation:

All-in-one packaging

No configuration

Plug and play

Upgrade service:

New experience of face

Recognition paymant

Upgrade the service quality

With technology

HIGH LIGHT

Modular Design:

Durable Design with customized peripheral,adjustable screen

Ensuring Futures:

Excellent heat dissipation make it more sustainable and reliable

Top-Notch:

Capicitive touch screen,few cable connections make it outstanding

Application Field

Store supermaket

Manufacturing&Logistic industry

Medical and Healthcare

Restaurant bar groce

Bar pub kiosk

 Intel I7 18.5 Inch Capacitive POS System PC For Business
Intel I7 18.5 Inch Capacitive POS System PC For Business

1851E comes with 4Gb memory, expandable to 8Gb or 32Gb, and 128Gb SSD for reliability.

Warranty: 3 year

Cpu: Intel Celeron J1900/I3/I5/I7 (optional)

Memory: DDR3 2G/4G/8G(optional)

Hard Disk: mSATA SSD 32G/64G/128G(optional)

Screen Size: 18.5 inch LCD,LED Backlight

Resolution: 1366*768 FHD(4K optional)

Touch Screen Type: Capacitive Touch
Intel I7 18.5 Inch Capacitive POS System PC For Business

THE INSTALLATION

1851E offers multiple mounting options to ensure installation flexibility including: wall, arm and pole mount via standard VESA mount patterns also with the use of the desktop stand.

Leadering Touch

Customizable Touch Sloution

TouchDisplays use the peoven industry-leadering touch technology.

We offer Projected Capacitive (PACP) 10 points multi-touch.

Application Field

Store supermaket

Manufacturing&Logistic industry

Medical and Healthcare

Restaurant bar groce

Bar pub kiosk

 Intel I7 18.5 Inch Capacitive POS System PC For Business

Intel I7 18.5 Inch Capacitive POS System PC For Business

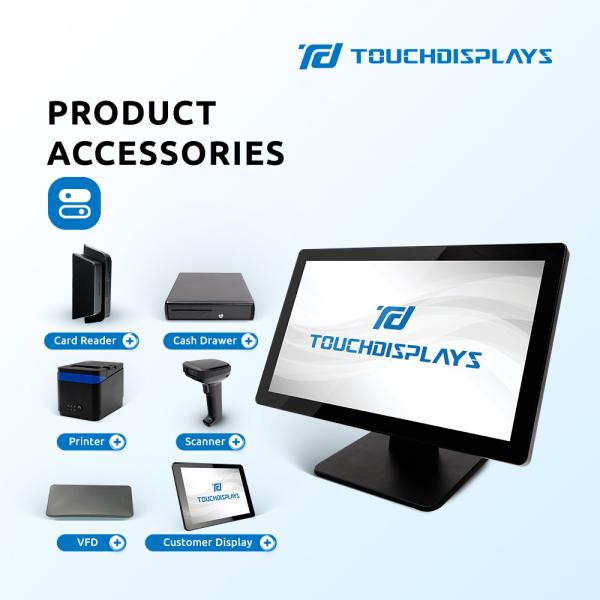

Support 2 line VFD and 11.6” &15.6” LCD customer display.

And more peripherals available like MSR, Camera, RFID, Barcode Scanner and so on.

INTERFACE

Intel I7 18.5 Inch Capacitive POS System PC For Business

APPLICATION

Intel I7 18.5 Inch Capacitive POS System PC For Business

SPECIFICATION

Model 1851E-IDT
Case/Bezel Color Black/Silvery/white(Customized)
Display Size 18.5"
Touch panel Projected Capacitive touch screen
Touch response time 8ms
Touchcomputors Dimensions 460.83 x 232.48 x 335.11 mm
LCD Type TFT LCD(LED backlight)
Useful Screen Area 409.8 mm x 230.4 mm
Aspect ratio 16:9
Optimal (native) Resolution 1366 x 768
LCD panel Pixel pitch 0.3 x 0.3mm
LCD panel Colors Depth 16.7M
LCD panel Brightness 250 cd/㎡
LCD panel Response Time 14 ms
Viewing Angle
(typical, from center)		 Horizontal ±80° or 160° total
Vertical ±80° or 160° total
Contrast Ratio 1000:1
output Video connector Mini D-Sub 15-Pin VGA type and HDMI type (optional)
Input interface usb 2.0*2 & usb 3.0*2 & 2*COM(3*COM optional)
1*Earphone1*Mic1*RJ45(2*RJ45 optional)
Extend interface usb2.0usb3.0comPCI-E(4G SIM card, wifi 2.4G&5G & Bluetooth module optional)M.2(for CPU J4125)
Power Supply Type Monitor input: +12V DC ±5%,5.0 A; DC Jack(2.5￠)
AC to DC power brick input: 90-240 VAC, 50/60 Hz
Power Consumption: Less than 40W
ECM
(Embed Computer Module)		 ECM3: Intel processor (J1900&J4125)
ECM4: Intel processor i3(4th -10th) or 3965U
ECM5: Intel processor i5(4th -10th)
ECM6: Intel processor i7(4th -10th)
Memory:DDR3 4G-16G Optional;DDR4 4G-16G Optional (Only for CPU J4125) ;
Storage:Msata SSD 64G-960G optional or HDD 1T-2TB optional;
ECM8: RK3288; Rom:2G; Flash:16G; Operation System: 7.1
ECM10: RK3399; Rom:4G; Flash:16G; Operation System: 9.0
Temperature Operating: 0°C to 40°C ;Storage -20°C to 60°C
Humidity (non condensing) Operating: 20%-80%; Storage: 10%-90%
Shipping Carton Dimensions 540*260*426 mm(with stand)
Weight (approx.) Actual: 6.65 kg ;Shipping: 7 kg
Warranty Monitor 3 years(Except for LCD panel 1 year)
Backlight lamp life: typical15,000 hours to half brightness
Agency Approvals CE/FCC/RoHS (UL & GS & CB & TUV customized)
Mounting Options 75 mm and 100mm VESA mount
