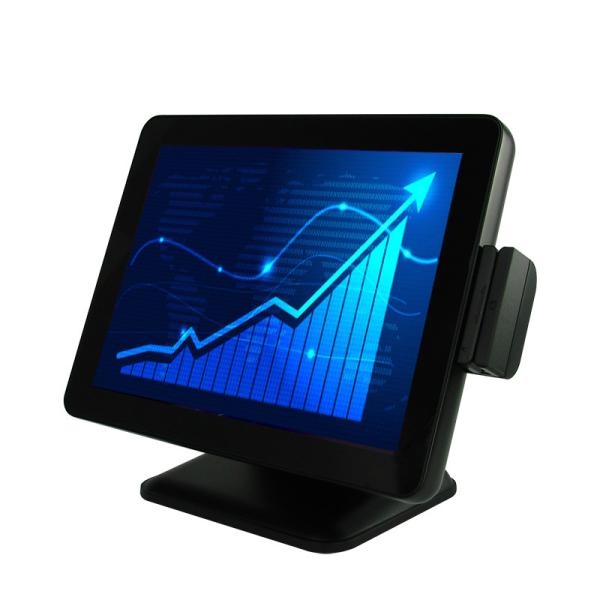

Intel I7 15 Display All In One Touch POS Machine
Intel I7 15 Display All In One Touch POS Machine
Specifications
Brand Name :
TouchDisplays
Model Number :
1515E-IDT
Certification :
CE/FCC RoHS (UL & GS customized)
Place of Origin :
China
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000 units per month
Packaging Details :
444mm*280mm*466mm ( 1 unit)
Color :
Black/White/Silver/Custom
Resolution :
1024*768
Support :
Cash Drawer/Printer/Scanner/Second Display/VFD/Card Reader
Touch Screen :
Projected Capacitive Touch Screen
Aspect ratio :
4:3
LCD panel Pixel pitch :
0.297 x 0.297 mm
Description

15 Inch check out Pos machine with 8 inch customer display

1515E Pos touch all in one has both white and black casing to choose from, which goes with 1024*768 resolution and either Windows or Android system, exellent touch screen goes with multiple customer display models making business effortless and enjoyable.

Intel I7 15
Intel I7 15

· Fanless design, user-friendly.

· High performance and cost-efficient.

· High reliability and convenient maintenance​ with 3 years warranty period

· 8/10/11/13 inch customer screen available

· High resolution with brightness 450cd/m2

Both RK3288&RK3399 CPU are available with latest Android system.

Varieties of Intel CPU are availble ranging from Intel j1800 to i7 latest 7th generation for windows are available

 Intel I7 15
Intel I7 15

ROTATABLE DISPLAY SCREEN

Rotatable for various usage scenarios meeting different needs

Intel I7 15

15 inch true-flat and zero-bezel projected capacitive multi touch screen with 1024*768 resolution delivering a enjoyable transaction experience.
Intel I7 15

INTERFACE

Multiple interfaces , including USB ports, Mic, Rj45 ports and more.

The powered USB is available for more peripheral connections.

Optional:

The special quick release design which enables customers to easily replace the display module, such as Solid-State , Hard Disk

 Intel I7 15
Intel I7 15

APPLICATION

Intel I7 15

SPECIFICATION

Model 1515E-IDT
Case/Bezel Color Black/Silvery/white(Customized)
Display Size 15.0"
Touch panel (True-flat Style) Projected Capacitive touch screen (Resistive touch screen optional)
Touch response time 8ms (PCT typical) & 5ms(Resistive)
Touchcomputors Dimensions 372x 212 x 318 mm
LCD Type TFT LCD(LED backlight)
Useful Screen Area 304 mm x 228 mm
Aspect ratio 4:3
Optimal (native) Resolution 1024 x 768
LCD panel Pixel pitch 0.297 x 0.297 mm
LCD panel Colors 16.7 million
LCD panel Brightness 250 cd/m2
LCD panel Contrast Ratio 800:1
LCD panel Response Time 30 ms
Viewing Angle Horizontal ±80° or 160° total (left/right)
(typical, from center) Vertical ±80° or 160° total (up/down)
output Video signal connector Mini D-Sub 15-Pin VGA type and HDMI type
Input interface 2*USB 2.0 & 2*USB 3.0 & 2*COM(3*COM optional)
1*Earphone1*Mic1*RJ45(2*RJ45 optional)
Extend interface 2*USB2.02*Sata3.02*PCI-E(4G SIM card, 2.4G&5G wifi & Bluetooth module optional)
Power Supply Type Monitor input: +12VDC ±5%,5.0 A; DC Jack (2.5￠)
AC to DC power brick input: 100-240 VAC, 50/60 Hz
Power Consumption: less than 60W
ECM (Embed Computer Modul) ECM2: Intel processor J1800 (Dual Core 2.41GHz,Fanless)
ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)
ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)
ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)
ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)
CPU Upgrade:3855U & I3-I7 series 5th 6th 7th optional
