RoHS Compliant I3-4010U Digital Signage Touchscreen
RoHS Compliant I3-4010U Digital Signage Touchscreen
Specifications
Brand Name :
TouchDisplays
Model Number :
2151E-IOT
Certification :
RoHS, ce, FCC
Place of Origin :
China
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000 units per month
Packaging Details :
598mm*184mm*444mm(2pcs)
Screen Size :
10.4" 15.6" 18.5" 21.5" 23.6" 27" 31.5" 43" 47" 55" 65"
Brightness :
250 cd/m 2 (customized upto 1000 cd/m 2 optional) 400 cd/m 2 (customized upto 1500 cd/m 2 optional)
Touch Technologies :
PCAP (10 touch), Infrared (10 touch), 5 wire resistive single touch
Resolution :
1920 x 1080
Interface Type :
D-SUB, DVI, Serial, USB
Description

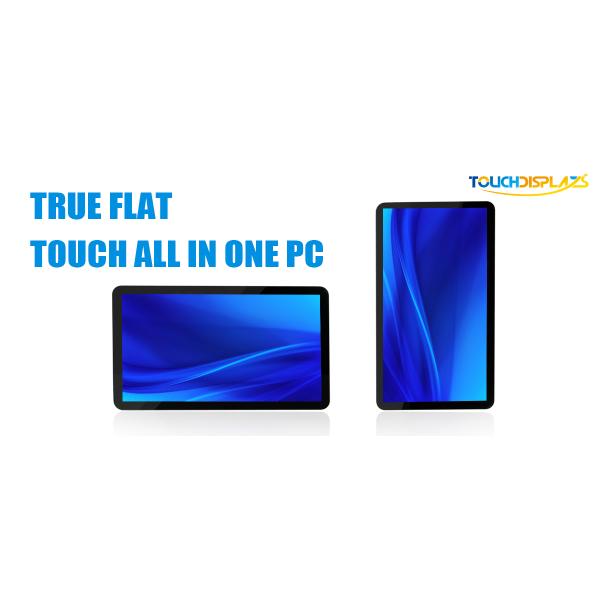

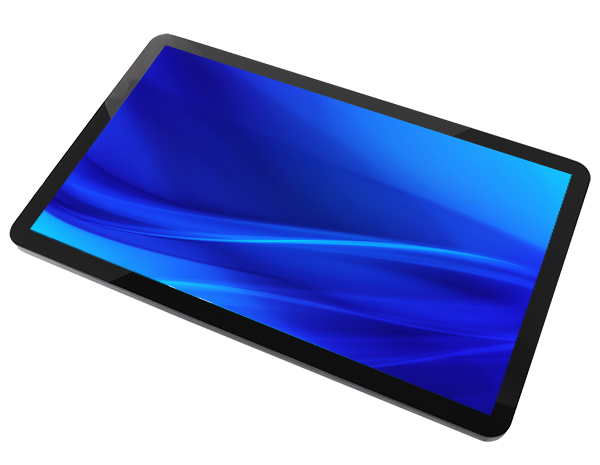

21.5" True Flat 10 Point Multi-Touch Interactive Digital Signage Display Monitors

21.5 inch touch Interactive Digital Signage is fully capable of resolving high resolution image up to 1080P restoring a true color, by which providing a enjoyable multimedia entertainment, customized USB ports can enable customers freely connecting with storage or multimedia devices adding the resilience of expansion demand, no matter it’s for public touring information and point of sales system or schooling, 21.5 inch touch all in one can deliver users with extremely enjoyable and convenient using experience.

RoHS Compliant I3-4010U Digital Signage Touchscreen
RoHS Compliant I3-4010U Digital Signage Touchscreen

Features

  • Projected Capacitive Multi-touch Technology
  • Optional front mount and rack mount bezels
  • Fully RoHS compliant
  • Mounting options including rear-mount and VESA mount
  • LED Backlight and High Resolution 1920 x1080
  • Multilingual on-screen display (OSD)

Operational system:

1.Windows/Linux

Standard configuration for 21.5 inch touch Interactive Digital Signage with windows system incorporates 4Gb DDR3 flash memory, expandable to 32Gb, 60Gb SSD memory, expandable to 480Gb.

CPU options:

Option1: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)

Option2: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)

Option3: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

Option4: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

Gen. From 4th to 7th for option2~4.

2.Android system:

Standard configuration for 21.5 inch touch Interactive Digital Signage with Android system incorporates 2Gb flash memory, expandable to 4Gb, 8G memory, expandable to 32Gb.

CPU options:

Option2:RK3399 Cortex-A72+Cortex-A53 6-Core 2GHz;GPU:Mail-T860MP4.

 RoHS Compliant I3-4010U Digital Signage Touchscreen
RoHS Compliant I3-4010U Digital Signage Touchscreen

RoHS Compliant I3-4010U Digital Signage Touchscreen

INTERFACE

21.5 inch touch Interactive Digital Signage has multiple input interfaces like HDMI,VGA,USU, etc connecting diversified multimedia devices meeting customers with customized setup requirement, making information transmission more diverse and wonderful.

RoHS Compliant I3-4010U Digital Signage Touchscreen

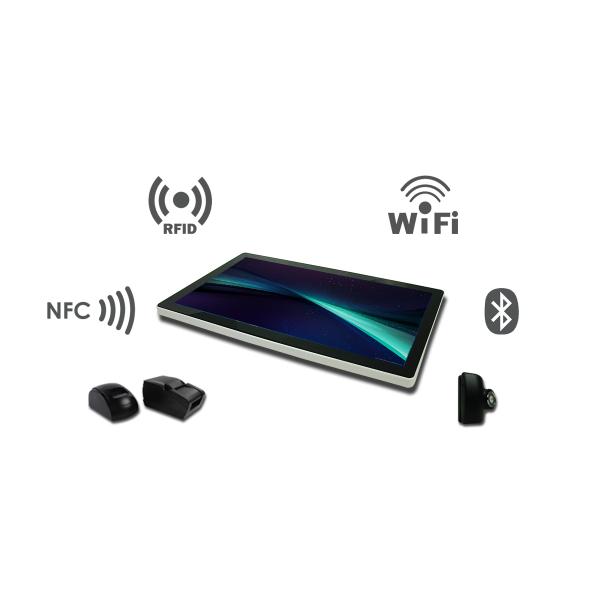

PERIPHERALS

Multimedia function supported playing photoes, music, 1080P high resolution video through USB hot plug

21.5 inch can access internet through RJ45 ethernet network, enjoying a high effective and convenient information transferring.

21.5 inch Interactive Digital Signage one integrates RS232 function connection delivering a convenient setting and operation, through which multiple monitors can be connected simultaneously achieving the most effective maintenance and management.

APPLICATION

RoHS Compliant I3-4010U Digital Signage Touchscreen

SPECIFICATION

Model 2151E-IOT-F
Case/Bezel Color Blackwhite
Display Size 21.5″
Touch panel Projected Capacitive Touch Screen
Touch points 10
Touch response time 8ms
TouchAIO Dimensions 524 x 46 x 315.5 mm
LCD Type TFT LCD(LED backlight)
Useful Screen Area 477.8 mm x 269.3 mm
Aspect ratio 16:9
Optimal (native) Resolution 1920*1080
LCD panel Pixel pitch 0.1875 x 0.1875 mm
LCD panel Colors 16.7 million
LCD panel Brightness 250 cd/m2
LCD panel Response Time 16 ms

Viewing Angle

(typical, from center)

 Horizontal ±89° or 178° total (left/right)
Vertical ±89° or 178° total (up/down)
Contrast Ratio 3000:1
output Video signal connector Mini D-Sub 15-Pin VGA type and HDMI type
Interface usb 2.0*4(usb 3.0*2 optional)PCI-E(4G SIM card, wifi and Bluetooth optional)
Earphone*1Mic*1Com*3RJ45*1
Power Supply Type Monitor input interface: +12VDC ±5%,6.0 A; DC Jack (2.5￠)
AC to DC power brick input: 100-240 VAC, 50/60 Hz
Power Consumption: 50W

ECM

(Embed Computer Modul)

ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)

ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)

ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

SATA3: HDD 500G(up to 1TB optional) or SDD 32G(up to 128G optional)

Memory: DDR3 4G(extend up to 16G Optional)

CPU Upgrade:J3160 & I3-I7 series 5th 6th 7th optional

Operation System:Win7Pos Ready7Win8XPWinCEVistaLinux

ECM9: Cortex-A53 8Core 1.5GHz;GPU: PowerVR G6110

Rom:1G(up to 2G4G optional);Flash:8G(up to 32G optional)

Operation System: 5.1 or 6.0
Temperature Operating: 0°C to 40°C ;Storage -20°C to 60°C
Humidity (non-condensing) Operating: 20%-80%; Storage: 10%-90%
Shipping Carton Dimensions 620 x 206 x 456 mm (2 PCS)
Weight (approx.) Product Actual: 5.1 kg(1 Piece) ;Shipping: 13.2 kg( 2 PCS)
Warranty Monitor 3 years(Except for LCD panel 1 year)
Backlight lamp life: typical 50,000 hours to half brightness
Agency Approvals CE/FCC/RoHS (UL or GS for Customized)
Mounting Options 75 mm and 100 mm VESA mount
