Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System
Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System
Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System
Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System
Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System
Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System
Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System
Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System
Specifications
Brand Name :
TouchDisplays
Model Number :
1561E-IDT
Certification :
CE/FCC RoHS (UL & GS customized)
Place of Origin :
China
MOQ :
50
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000 units per month
Packaging Details :
444mm*280mm*466mm ( 1 unit)
screen :
bezel free & dual touch
CPU :
intel i3
SSD :
128Gb
Size :
15.6 inch
Description

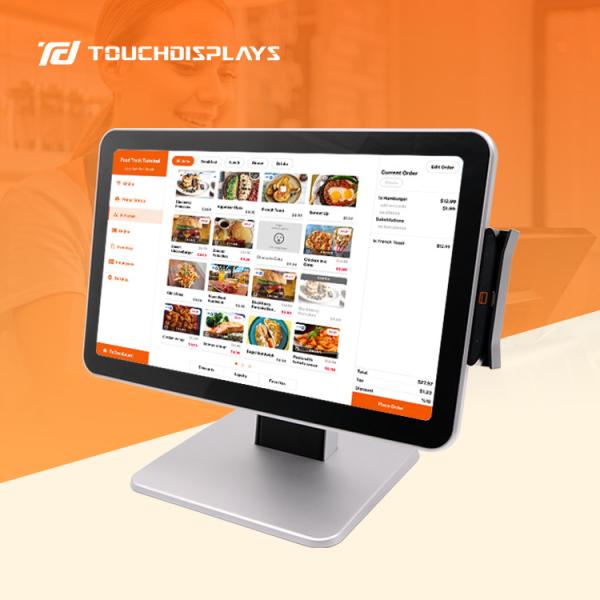

Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System

With high-resolution display, powerful fanless processors optional and PCAP screens,

the TouchDisplays 1561E series Point of Sale is a high-cost effective product with wide screen.

Equipped with a high-definition display and top performance, supported by a powerful fanless processor and capacitive touch screen.

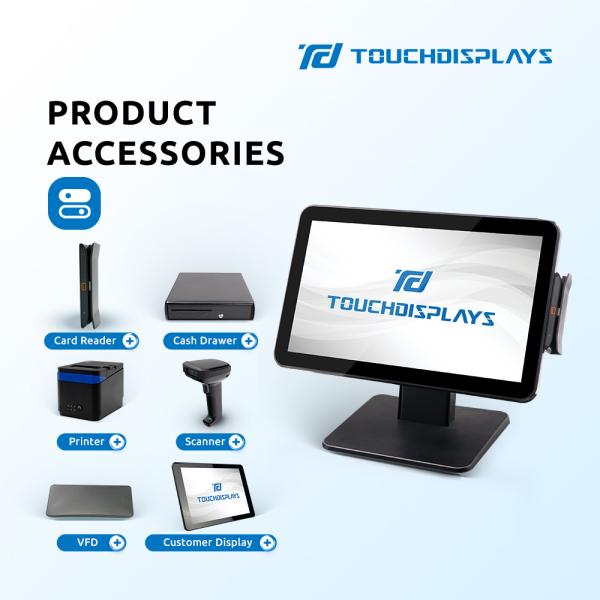

A wide range of processors options and full compatibility with multiple accessories.

Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System
Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System

· Economical plastic casing with our own patented design.

· Rotatable display adapts to users’ using habits.

· Perfect designed with waterproof and dustproof function.

· The second display is customized as needed, free choice of mode.

· Fashionable portrait screens meet special needs.
Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System

STYLISH PORTRAIT SCREENS

Featured with unique and stylish portrait screen,

Our POS system has a super slim display head.

It saves space and gives your staff a special operating experience.

 Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System
Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System

Fanless processor brings low consumption and a noiseless surrounding;

Good CPU options for all Android versions;

Wide range from Intel j1800 to i7 latest 7th generation for windows.

15.6 inch runs critical applications fast, making your customer's experience even better.

ROTATABLE DISPLAY SCREEN

Our POS is user-friendly with a rotatable display head,

The screen is flexible and can be adjusted to the best viewing angle and best position to get a wonderful operating experience.

 Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System
Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System

Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System

10 more touch points, 15.6-inch widescreen.1366*768 or 1920*1080 HD resolution.

If needed, 4K is also an option.
Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System

UNIQUE PORTRAIT MODE

Unique and stylish is how we declare our portrait POS system.

The unique Portrait mode design brings a new experience of use. The fashion sense from the unique design helps to enhance the corporate image.

Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System

INTERFACE

Multiple I/O interfaces are offered, including USB ports, Mic, Rj45 ports, and so on.

The powered USB is available for more peripheral connections.

Owing to the multi-interface design, peripherals installation and uninstallation become quick and easy for your staff.
Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System

APPLICATIONS

With the unique compatible design, TouchDisplays POS systems are built and crafted to adapt to any critical condition.

Intel I3 15.6 Inch 4Gb RAM All In One Cash Register Machine POS System

SPECIFICATION

Model 1561E-IDT
Case/Bezel Color Black/Silvery/white(Customized)
Display Size 15.6"
Style True Flat
Touch panel (True-flat Style) Projected Capacitive touch screen (Resistive touch screen optional)
Touch response time 8ms
Touchcomputors Dimensions 391.6x 201.1 x 318 mm
LCD Type TFT LCD(LED backlight)
Useful Screen Area 345.5 mm x 195 mm
Aspect ratio 16:9
Optimal (native) Resolution 1920 x 1080
LCD panel Pixel pitch 0.17925 x 0.17925 mm
LCD panel Colors 6bit Hi-FRC
LCD panel Brightness 220 cd/m2
LCD panel Contrast Ratio 500:1
LCD panel Response Time 12 ms
Viewing Angle Horizontal ±45° or 90° total
(typical, from center) Vertical -20°~+40° or 60° total
output Video signal connector Mini D-Sub 15-Pin VGA type and HDMI type
Input interface 2*USB 2.0 & 2*USB 3.0 & 2*COM(3*COM optional)
1*Earphone1*Mic1*RJ45(2*RJ45 optional)
Extend interface 2*USB2.02*COM1*PLT2*PCI-E(4G SIM card, 2.4G&5G wifi & Bluetooth module optional)
Power Supply Type Monitor input: +12VDC ±5%,5.0 A; DC Jack (2.5￠)
AC to DC power brick input: 90-240 VAC, 50/60 Hz
Power Consumption: less than 60W
ECM (Embed Computer Modul) ECM2: Intel processor J1800 (Dual Core 2.41GHz,Fanless)
ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)
ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)
ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)
ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)
CPU Upgrade:3855U & I3-I7 series 5th 6th 7th optional
SATA3:HDD 500G(up to 1TB optional);SDD 32G(up to 128G optional)
Memory: DDR3 4G(extend up to 16G Optional)
ECM8: RK3288 Cortex-A17 quad-core 1.8G, GPU:Mali-T764;Operation System: 5.1
ECM9: RK3368 Cortex-A53 8Core 1.5GHz;GPU:PowerVR G6110;Operation System: 6.0
ECM10:RK3399 Cortex-A72+Cortex-A53 6-Core 2GHz;GPU:Mail-T860MP4;Operation System: 7.1
Rom:2G(up to 4G optional);Flash:8G(up to 32G optional)
Temperature Operating: 0°C to 40°C ;Storage -20°C to 60°C
Humidity (non condensing) Operating: 20%-80%; Storage: 10%-90%
Shipping Carton Dimensions 450 x 280 x 470 mm(with stand);470 x 210 x 420 mm(without stand)
Weight (approx.) Actual: 6.8 kg ;Shipping: 8.2 kg
Warranty Monitor 3 years(Except for LCD panel 1 year)
Backlight lamp life: typical 50,000 hours to half brightness
Agency Approvals CE/FCC RoHS (UL & GS customized)
Mounting Options 75 mm and 100mm VESA mount(Remove Stood)
