15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant
15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant
15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant
15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant
15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant
15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant
15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant
15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant
Specifications
Brand Name :
TouchDisplays
Model Number :
1515E-IDT
Certification :
CE/FCC RoHS (UL & GS customized)
Place of Origin :
China
MOQ :
50
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000 units per month
Model :
1515E-IDT
Screen :
15 inch
LCD Type :
TFT LCD(LED backlight)
Material :
Aluminum Casing
Description

15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant

1515E POS has a true-flat touch screen, which is user-friendly with all environment and business formats. With multiple choice of configuration, choose the most suitable product for the using environment.

15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant

15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant

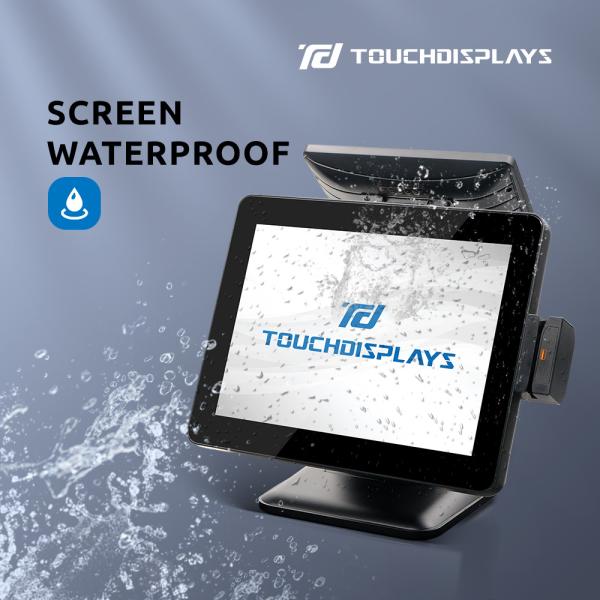

• Front screen be sealed IP65 optional

• All aluminum shell, sturdy and durable

• Low consumption, high-performance dual-core Intel Atom processor

• Second display 8'' or 10.4'' monitor optional

• High-Resolution 1024*768(4:3)

HIGH QUALITY

  • We are manufacturer of POS machine, with professional production line and technical workers. All the products are certified by CE, FCC, RoHS, etc. authoritative organizations.

​

  • We uphold the guiding principle of customer satisfaction all the time to meet different market requirements.

 15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant
15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant

CPU options:

ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz, Fanless)

ECM4: Intel processor i3-4010U (Dual Core 1.7GHz, Fanless)

ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

Wide ranges intel processor from Gen 4th-7th available.

HDD:500G(1TB optional);SDD:32G(up to 128G optional);

Memory: DDR3 4G(up to 16G);

Operation System: POS Ready7 Win7Win8Win10XPWinCEVistaLinux

ECM8: Android quad-core 1.2G, Rom 1G, Flash 4G or higher

Operation System: 4.4.2 or later
15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant

THE INSTALLATION

Multiple mounting options are provided to ensure installation flexibility, such as wall, arm and pole mounting via standard VESA mount patterns, as well as the use of the desktop stand.

 15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant

15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant

Support 2 line VFD and 11.6” &15.6” LCD customer display.

More peripherals are available like MSR, Camera, Printer, Barcode Scanner and so on.

INTERFACE

15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant

APPLICATION

15 Inch Desktop Touch POS Terminal Aluminum Shell For Restaurant

SPECIFICATION

Model 1515E-IDT
Case/Bezel Color Black/Silvery/white/Customized Colors
Display Size 15"
Style True Flat
Touch panel (True-flat Style) Projected Capacitive touch screen (Resistive touch screen optional)
Touch response time 8ms
Touchcomputors Dimensions 391.6x 201.1 x 318 mm
LCD Type TFT LCD(LED backlight)
Useful Screen Area 345.5 mm x 195 mm
Aspect ratio 4:3
Optimal (native) Resolution 1024*768
LCD panel Pixel pitch 0.17925 x 0.17925 mm
LCD panel Colors 6bit Hi-FRC
LCD panel Brightness 220 cd/m2
LCD panel Contrast Ratio 500:1
LCD panel Response Time 12 ms
Viewing Angle Horizontal ±45° or 90° total
(typical, from center) Vertical -20°~+40° or 60° total
output Video signal connector Mini D-Sub 15-Pin VGA type and HDMI type
Input interface 2*USB 2.0 & 2*USB 3.0 & 2*COM(3*COM optional)
1*Earphone1*Mic1*RJ45(2*RJ45 optional)
Extend interface 2*USB2.02*COM1*PLT2*PCI-E(4G SIM card, 2.4G&5G wifi & Bluetooth module optional)
Power Supply Type Monitor input: +12VDC ±5%,5.0 A; DC Jack (2.5￠)
AC to DC power brick input: 90-240 VAC, 50/60 Hz
Power Consumption: less than 60W
ECM (Embed Computer Modul) ECM2: Intel processor J1800 (Dual Core 2.41GHz,Fanless)
ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)
ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)
ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)
ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)
CPU Upgrade:3855U & I3-I7 series 5th 6th 7th optional
SATA3:HDD 500G(up to 1TB optional);SDD 32G(up to 128G optional)
Memory: DDR3 4G(extend up to 16G Optional)
ECM8: RK3288 Cortex-A17 quad-core 1.8G, GPU:Mali-T764;Operation System: 5.1
ECM9: RK3368 Cortex-A53 8Core 1.5GHz;GPU:PowerVR G6110;Operation System: 6.0
ECM10:RK3399 Cortex-A72+Cortex-A53 6-Core 2GHz;GPU:Mail-T860MP4;Operation System: 7.1
Rom:2G(up to 4G optional);Flash:8G(up to 32G optional)
Temperature Operating: 0°C to 40°C ;Storage -20°C to 60°C
Humidity (non condensing) Operating: 20%-80%; Storage: 10%-90%
Shipping Carton Dimensions 450 x 280 x 470 mm(with stand);470 x 210 x 420 mm(without stand)
Weight (approx.) Actual: 6.8 kg ;Shipping: 8.2 kg
Warranty Monitor 3 years(Except for LCD panel 1 year)
Backlight lamp life: typical 50,000 hours to half brightness
Agency Approvals CE/FCC RoHS (UL & GS customized)
Mounting Options 75 mm and 100mm VESA mount(Remove Stood)
