4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant
4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant
4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant
4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant
4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant
4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant
4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant
4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant
Specifications
Brand Name :
TouchDisplays
Model Number :
1561E-IDT
Certification :
CE/FCC RoHS (UL & GS customized)
Place of Origin :
China
MOQ :
50
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000 units per month
Packaging Details :
444mm*280mm*466mm ( 1 unit)
RAM :
DDR3 4Gb
CPU :
intel i3
Resolution :
1920*1080
Size :
15.6''
Description

4Gb RAM 15.6'' Windows Dual Screen POS Terminal For Restaurant

Windows pos terminal 15.6-inch point of sales system terminal touch screen

15.6-inch Point of Sale terminal is a high cost-effective wide-screen product. With the stylish appearance, it is equipped with a high-resolution display and it is designed as a true-flat screen which also supports ten points touch. Apart from top performance, it is supported by a powerful fanless processor. TouchDisplays offer 3 years warranty to ensure the after-sale service could be guaranteed. A wide range of processor options and full compatibility with a variety of accessories make it suitable for all scenarios.

4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant
4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant

· Multiple powerful processors optional.

· 1561E series is built with economical plastic case.

· 1920*1080 full HD resolution.

· The second display is customized as needed, free choice of mode.

· Unique Portrait mode design.
4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant

STYLISH PORTRAIT SCREENS

The unique Portrait mode design delivers a new experience of use.

The convenient rotary switching mode allows employees to better use the product.

The fashion sense from the unique design helps to enhance the corporate image.

 4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant
4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant

Extremely powerful and low consumption fanless processors;

Flexible CPU options available for all Android versions;

Various choices of configuration from processors, RAM, ROM to system,

choose the own configuration to make the products.

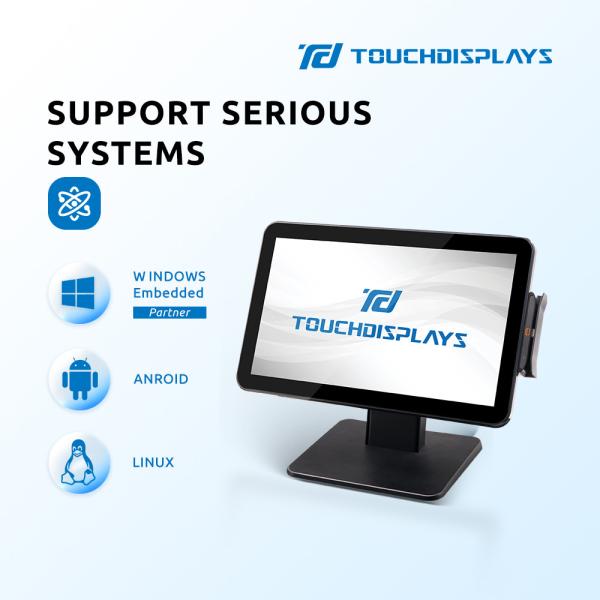

We also support different operating system. Windows, Linux and Android are all

able to be installed.

ROTATABLE DISPLAY SCREEN

Been designed flexible, the screen can be adjusted to the best viewing angle and best position for all of you to get a wonderful operating experience.

 4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant
4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant

4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant

10 more touchpoints, 15.6-inch widescreen.1366*768 or 1920*1080 HD resolution.

4K is also an option if required.
4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant

SPILL & DUSTPROOF

IP65 standard front screen spill resistance.

Deliver both durability and reliability to customers.

4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant

INTERFACE

Provided multiple I/O interfaces, including USB ports, Mic, Rj45 ports, and so on.

The powered USB can be used to connect more peripheral devices.

Owing to the multiple interface design, your employees can quickly and easily install and uninstall peripherals.
4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant

APPLICATIONS

TouchDisplays POS systems are built and crafted with a unique compatible design, which allows it to adapt to any critical condition

4Gb RAM 15.6'' Dual Screen All In One Touch POS Terminal For Restaurant

SPECIFICATION

Model 1561E-IDT
Case/Bezel Color Black/Silvery/white(Customized)
Display Size 15.6"
Style True Flat
Touch panel (True-flat Style) Projected Capacitive touch screen (Resistive touch screen optional)
Touch response time 8ms
Touchcomputors Dimensions 391.6x 201.1 x 318 mm
LCD Type TFT LCD(LED backlight)
Useful Screen Area 345.5 mm x 195 mm
Aspect ratio 16:9
Optimal (native) Resolution 1920 x 1080
LCD panel Pixel pitch 0.17925 x 0.17925 mm
LCD panel Colors 6bit Hi-FRC
LCD panel Brightness 220 cd/m2
LCD panel Contrast Ratio 500:1
LCD panel Response Time 12 ms
Viewing Angle Horizontal ±45° or 90° total
(typical, from center) Vertical -20°~+40° or 60° total
output Video signal connector Mini D-Sub 15-Pin VGA type and HDMI type
Input interface 2*USB 2.0 & 2*USB 3.0 & 2*COM(3*COM optional)
1*Earphone1*Mic1*RJ45(2*RJ45 optional)
Extend interface 2*USB2.02*COM1*PLT2*PCI-E(4G SIM card, 2.4G&5G wifi & Bluetooth module optional)
Power Supply Type Monitor input: +12VDC ±5%,5.0 A; DC Jack (2.5￠)
AC to DC power brick input: 90-240 VAC, 50/60 Hz
Power Consumption: less than 60W
ECM (Embed Computer Modul) ECM2: Intel processor J1800 (Dual Core 2.41GHz,Fanless)
ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)
ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)
ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)
ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)
CPU Upgrade:3855U & I3-I7 series 5th 6th 7th optional
SATA3:HDD 500G(up to 1TB optional);SDD 32G(up to 128G optional)
Memory: DDR3 4G(extend up to 16G Optional)
ECM8: RK3288 Cortex-A17 quad-core 1.8G, GPU:Mali-T764;Operation System: 5.1
ECM9: RK3368 Cortex-A53 8Core 1.5GHz;GPU:PowerVR G6110;Operation System: 6.0
ECM10:RK3399 Cortex-A72+Cortex-A53 6-Core 2GHz;GPU:Mail-T860MP4;Operation System: 7.1
Rom:2G(up to 4G optional);Flash:8G(up to 32G optional)
Temperature Operating: 0°C to 40°C ;Storage -20°C to 60°C
Humidity (non condensing) Operating: 20%-80%; Storage: 10%-90%
Shipping Carton Dimensions 450 x 280 x 470 mm(with stand);470 x 210 x 420 mm(without stand)
Weight (approx.) Actual: 6.8 kg ;Shipping: 8.2 kg
Warranty Monitor 3 years(Except for LCD panel 1 year)
Backlight lamp life: typical 50,000 hours to half brightness
Agency Approvals CE/FCC RoHS (UL & GS customized)
Mounting Options 75 mm and 100mm VESA mount(Remove Stood)
