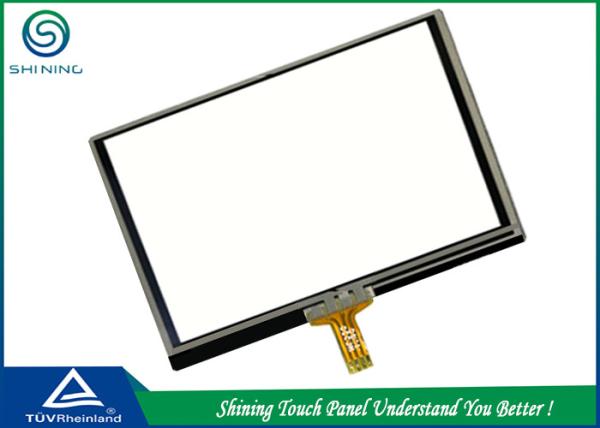

Foggy ITO Film Resistive Touch Panel 4 Wire 3.5 Inch For POS Terminal

Specifications:

Size: 3.5 inches

Wire: 4

Tail/connector: FPC

OD(Outline Dimension): 58.50(L)×73.60(W)×1.4(T)mm

VA(Viewing Area):53.36(L)×70.40(W)mm

AA(Activate Area):52.40(L)×69.20(W)mm

Operating force: 50 to 120g

Input method: finger or touch pen

Surface hardness: 3 H

ITO glass thickness: 1.1mm

Tail type: FPC

Surface finishing type: anti-glare

Transparency: ≥78%

Operating voltage: 5.5V or less

Contact current: 70mA (maximum)

Contact bounce: ≤10 ms

Circuit close resistances: 30 to 300Ω

Circuit open resistance: ≥20mΩ at 25V DC

Lifespan: more than 1 million touch in one location without failure

Constructions: glass, uniform resistive coating, polyester cover sheet, transparent insulating dots, conductive coating

Operating temperatures: -20 to 60°C

Storage temperatures: -20 to 70°C

Operating humidity range: 20 to 90% RH

Storage humidity range: 10 to 90% RH

No noted size common difference: ±0.20

With the RoHS directive-compliant

OEM orders are accepted

High-transmittance

High-sensitivity and stability

Easy to install

Description:

1. Providing Touch Panels Since 2009

As a manufacturer, we provide customized touch panels, including 4-wire resistive touch panel, 5-wire resistive touch panel, capacitive touch panel, digital touch panel etc. Mostly, we are able to offer touch panel solutions in a short time.

Currently, we have been supplying touch panels to clients domestic and abroad. Samsung and Nintendo are two well-known companies of them.

2. PRC National Standard High Quality Manufacturer

Audited by TUV, our factory complies with the national standard of high quality manufacturer through the following aspects: genuine manufacturer, dedicated export team, research and development capability, trustworthiness and reputation, high quality products, considerable company size, social and environmental responsibility, customer service capability.

In 2010, we passed ISO 9001:2008 International Management System and ISO 14001:2004 + Cor 1:2009 Environmental Management System.

3. Brand Raw Materials Only

In order to produce satisfactory touch panels, we only use brand materials. In this case, our production has high efficiency.

4. Detail Makes Difference

Perfect details make our products perfect. Silkscreen of our analogue resistive touch panels and projected capacitive touch panels has smooth surface, smooth line, uniform thickness and the linearity is below 1.5%; the edge is smooth with tolerance below 0.1mm; minimum width of silver line and distance between lines is 0.15mm.

Silk-printing, laminating, cutting, FPC bonding etc. are all operated by automatic machines and skill-experienced workers. Almost everything is under our control.

5. 100% Inspection

Every stage of production process is focused on a lot to avoid mistakes and regarding the cleanliness of appearance and function, we carry out 100% inspection. What we care most is that each piece touch panel delivered from our warehouse has to meet our clients’ requirements.

Applications:

Product Images:
