PCAP 10.1 Capacitive Touch Panel / Capacitive Touch Screen For Industrial Displays
PCAP 10.1 Capacitive Touch Panel / Capacitive Touch Screen For Industrial Displays
PCAP 10.1 Capacitive Touch Panel / Capacitive Touch Screen For Industrial Displays
PCAP 10.1 Capacitive Touch Panel / Capacitive Touch Screen For Industrial Displays
Specifications
Brand Name :
KENSHIN
Model Number :
CT-C1096 10.1
Certification :
ROHS/REACH/CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T or L/C
Supply Ability :
1,000pcs per day
Delivery Time :
15 working days after receiving your deposit or L/C
Packaging Details :
Blister tray or poly foam→vacuum bag→carton
Product Name :
10.1" PCAP
Type :
Projected Capacitive Technology
Interface :
USB 2.0
Structure :
Front Glass + ITO Sensor
Touch Point :
Multi-touch
Surface Hardness :
>6H
Aspect Ration :
16:10
Transmittance :
>85%
Description

PCAP 10.1 Capacitive Touch Panel / Capacitive Touch Screen For Industrial Displays

Specifications:

Structure Front Glass + Sensor Glass
OD 246.96*165.6mm
VA 216.96*135.6mm
Transmittance >85%
Interface Type USB, RS232, I2C
Chattering Time <10 MS
Operating Temperature -10℃-60℃
Storage Temperature -20℃-70℃

PCAP 10.1 Capacitive Touch Panel / Capacitive Touch Screen For Industrial Displays

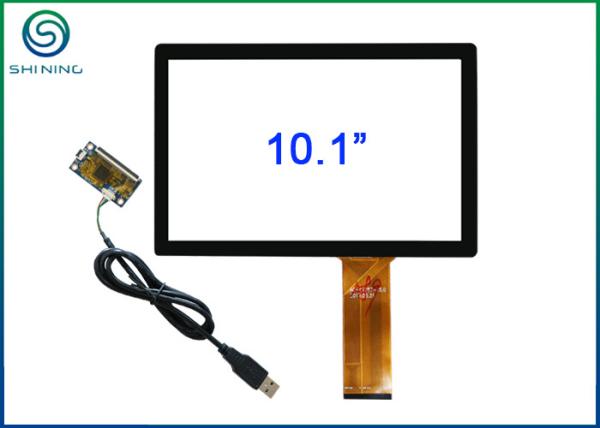

Our CT-C1096 is a 10.1" projected capacitive touch screen. It supports multi-touch upto 10-finger touch, compatible with Windows, Linux, Android and Mac operating systems. The ILI2511 contrller with USB interface from ILITEK makes it plug-and-play, water-resistant. The front glass of this touch panels is strengthened and the surface hardness is above 6H. The aspect ration of this 10.1" PCAP touch screen is 16:10. It could be used on industrial touch displays.

Some Advantages of Us

1. Responding in a short time, usually within 1 to 24 hours, as we are a manufacturer of touch screens, producing touch screens by ourselves in our own factory.

2. Solving your issues fast and efficiently, touch screen experts with over 5-year experience serve you together with our sales and marketing members.

3. Versatile projected capacitive touch screens and resistive touch screens for your selection. Just let us know the parameters as much as possible, we'll be pleased to check for you.

4. Customizing and manufacturing projected capacitive and resistive touch screens with very low NRE and 10 - 50 pieces MOQ.

5. Quality products with inexpensive price, reasonable and competitive.

6. Lead time: only 1 to 5 weeks.

7. Manufactured on high tech production line:

(1). As a touch panel manufacturer, we are equipped with over 100m2 100-level clean rooms in more than 2,000m2 10,000-level dust-free workshop, so the cleanliness of our products could be well guaranteed.

(2). A range of machineries are installed and working well, like layout etching line and laser machines, FPC bonding machines, optical bonding machines, and removing bubble machines etc. We could well-control the quality during the process of manufacturing.

8. Using brand materials to guarantee the quality from the start.

9. Being familiar with every step of making quality touch panels, as 80% of our engineers, production and quality control team leaders are with us from the establishment of our company.

10. Executing 100% inspection to make sure that each piece touch panel manufactured by Cloudtop Electronic Technology could meet clients' requirements.

Some Advantage of Our Projected Capacitive Touch Screen

Not every time, we could find just the right PCAP. Don't worry, definitely, we could be able and pleased to offer custom solution to perfectly meet your parameters.

1. Custom Cover Glass

(1). Design your own logo, button and graphic printing etc.

(2) Customized your own dimension and shape, holes, angels,grooves and etc.

(3) Use acrylic or polycarbonate to instead glass.

(4) Add anti-smudge, anti-fingerprint, anti-glare or anti-reflection coating.

(5) Choose a cover layer thickness up to 9mm.

2. Custom Touch Sensor

We could design the pattern and layout on request and support silk print process and laser technology.

3. Customized Stack-up and Layers for Option: G + G; G + F; G + F + F; P + G.

4. Custom Water-Resistant ProCap Touch Screen.

5. Custom Gloved Hand Activated ProCap Touch Screen.

6. Custom ESD, anti-EMI, RFI Suppression and EMC ProCap Touch Screen.

7. Mainly providing IIC and/or USB interface.

8. Compatible with Windows, Linux and other operating systems.

We are a custom touch screen manufacturer.

Please feel free to discuss with us about any questions related to capacitive and resistive touch screens.
