Specifications
Brand Name :
LIQUISE
Model Number :
XHT102
Certification :
CCC,FCC,CE,ISO9001
Place of Origin :
Guangdong,China
MOQ :
1 Piece
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week
Delivery Time :
5-7 days
Packaging Details :
high quality 3cm thickness honeycomb box(air shipment standard)
System :
Windows/Android
Motherboard :
ZC328/J1800/J1900/I3/I5/I7
Material Quality :
Aluminium Alloy
Installation mode :
Wall hanging/ flushbonading
texture :
aluminium alloy
Description

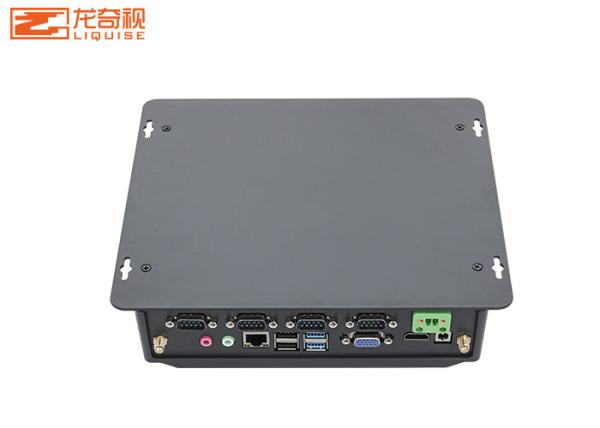

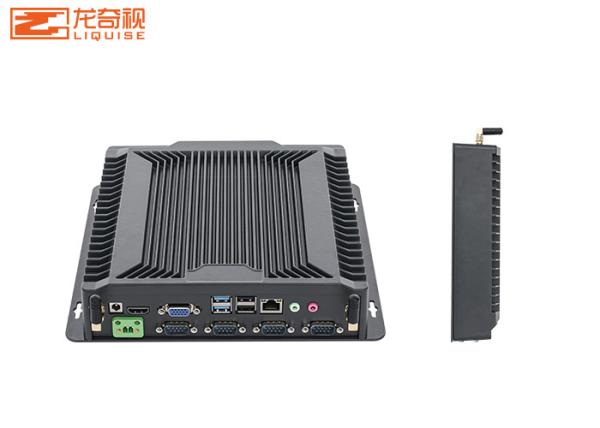

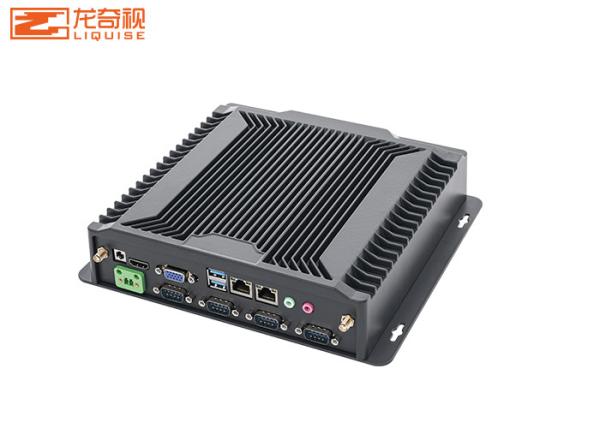

Mini Computer Host Fully Enclosed Silent Fan Free Home Office Microcomputer Industrial Control Host

Industrial computer is a computer specially designed for industrial field, which can ensure long-time stable operation in harsh environment.
It has the features of no fan, silent, industrial grade dustproof, high and low temperature resistance, heat dissipation material, Intel processor, 7 * 24h operation, supporting 1080p, wireless Internet, com, strong compatibility, etc.
1. Small and mini low-power industrial host, bid farewell to the heavy, space occupying and high-power desktop computer.
2. The fuselage is made of aluminum alloy, and the surface of the fuselage is covered with a layer of oxide film, which has corrosion resistance and certain insulation.
3. Support power on, remote wake-up and diskless startup.
4. 15W ultra-low power consumption, energy saving, 7 * 24 hours stable operation.
5. Win7 system is installed by default, which can support win8 / 10, Linux and other systems, so that you can work as you like.
6. The surface adopts grid shape, closed and integrated molding, and the whole machine has no cooling hole design, which can ensure the external air circulation and improve the heat dissipation efficiency.
7. No fan, no noise, quieter use.
8. Intel Celeron j1800 processor, high-performance design experience and processing technology, easy to open tasks.
9. Home office, entertainment video, industry control, web browsing and other multi tasks run at the same time, with strong performance and refuse to be stuck.
10. Through VGA and HDMI interface, it can connect TV, printer, projector and other equipment.
11. HDMI with VGA interface, can realize single screen output, dual screen output, extended display output, while working and entertainment, pleasant experience.

Production specifications
Color silver
SIZE 21cmx 20cm x5 cm(Length, width, height)
Structure all-aluminium Alloy fan-less enclosure for heat dissipation
Material Quality Aluminium Alloy+Galvanized Steel
Memory one DDR3L/1,.35 memory ,up to 8G( Optional)
2.5Hard Disk Capacity 500G(Optional)
CF N/A
SSD N/A
POWER Standard 12V or 5V adapter(optional)
Installation mode Desktop or wall mounted
Operating temperature -10℃-60℃
Storage temperature -20℃-90℃
Relative humidity 5%-95% No condensation
Working Vibration 0.5grms/5-500HZ/random/oper ating
Motherboard type National Solid State Capacitor motherboard
Processor Intel arena j1800/j1900 Core I3/I5/I7
Graphics Cards Collection inter HD key graphics cards
WEB Collection 1x inter WG Gigabit network cards, Support Network wake-up /PXE function
USB 8*USB
Interface 6*RS232 Serial port
Display 1*VGA 1*HDMI
Audio 1*MIC,1*Line-out
Expansion slot 2*MINIPCIE(1*WIFI 1*MSATA)
Indicator Lights Power indicator lights
System control The power switch
wireless 2*WIFI/3G SMA antenna (optional)
