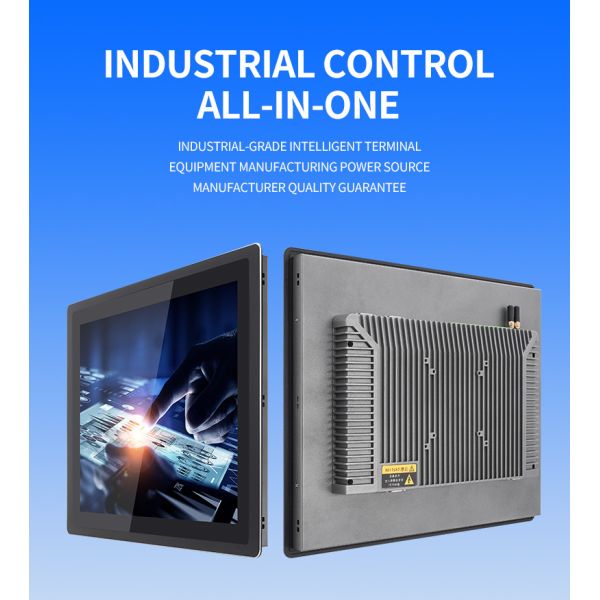

21.5 Inch Capacitor Industrial Integrated Touch Screen Embedded Fully Closed
Industrial control all-in-one machine, including embedded industrial touch all-in-one machine, wall mounted industrial touch integrated machine and other styles. Independent research and development of the whole machine, industrial Android tablet computer, create a new interactive experience.
1. Suitable for high and low temperature, dense dust, high temperature and other harsh environment.
2. Heat dissipation: all aluminum body, back cover thickened fin type heat dissipation design.
3. Protection, the whole machine slightly waterproof splash, efficient dust, not afraid of dust.
4. Anti interference, stable operation: anti electromagnetic interference, suitable for various industrial sites, outdoor signal interference environment.
5. Sensitive touch makes it easier to use: higher sensing accuracy, faster response speed, smooth or foggy surface treatment, support more refined industrial operation, no blind spot in touch.
6. Three dimensional heat dissipation, stable operation: through the aluminum plate and metal back shell heat dissipation, technology breakthrough, low noise, better heat dissipation effect, strong stability, effective protection of the whole machine parts life.
7. All aluminum fuselage is formed as a whole: the frame back shell adopts aluminum alloy customized mold, one-time die casting, with more standard structure and more compact overall.
8. Capacitive touch man-machine integration: fast response, high precision, experience fingertip and screen feel in one.
9. All aluminum fuselage is more resistant to high and low temperature: through controllable high temperature test, the product can adapt to the temperature between - 20 ℃ and 55 ℃, even in harsh environment.
10. All aluminum alloy fuselage, solid as a rock: metal material, strong quality, thin between, create the beauty of both internal and external repair.
Brand:LIQUISE Screen specifications: 15 inches Screen ratio: 4:3 Resolution: 1024x 768 Backlight type: LED Motherboard: J1800/J1900 industrial control motherboard | Memory: 2G/4G/8G (upgradeable) Interface: VGA x 1HDMIx 1USBx4L AN Power connector x 1 Network card: Built-in Gigabit network card Graphics: Integrated HD
|
Common system: win7/win10/Android Normal power: ≤40W Working temperature: -10C~+60C Environmental humidity: 20%~70% Product certification: CE, FCC, CCC Applicable industries: Industry, Commerce
| Touch screen: Resistive/Capacitive Response time: 5ms Display brightness: 350cd/m2 Contrast ratio: 1000:1 Color depth: 16.7M CPU: Celeron dual-core 2.41GHz/quad-core 1.99GHz
|
Power supply: External power supply 12V Special structure: Fanless dustproof structure Aluminum alloy cooling back cover Can be installed and built-in: Wireless wifi, 4G, Bluetooth(optional) Viewable size: 304mm x 228mm Shell size: 378mm x 297mm
| Bracket hole: 75mm x 75mm Appearance material: Metal cold rolled sheet Bracket: Wall Hanger / Die-casting desktop bracket (optional) |
Capacitor size Shell width(mm)
Shell heigh(mm)
Thickness(mm)
Screen width(mm)
Screen heigh(mm)
Screen Resolution (mm) Wall hole position (mm) Screen width:height
| 8.4inches 236
190
51.5
170.4
127.8
800*600
100*100
4:3
| 10.4 inches 283
225.2
56.2
213.1
160.3
1024*768
100*100
4:3
| 12.1 inches 317
258
56.2
246
184.5
1024*768
100*100
4:3
| 15 inches 378
297
56.2
304
228
1024*768
100*100
4:3
| 17 inches 413
342
56.2
338.92
271.34
1280*1024
100*100
4:3
| 19 inches 454
375.5
62.7
377.3
302.1
1280*1024
100*100
4:3
| 22 inches 559
349.3
65.5
477.6
261.1
1920*1080
100*100
16:9
|
