Industrial Integrated Computer 10 "12" 15 "17" 19 "Android Capacitive Touch Screen Display Industrial Computer
Industrial control computer host, widely used in modern industrial equipment, heavy chemical enterprise employees operating electrical equipment, welding process equipment for production line, industrial automation equipment for CNC machine tools, etc.
1. The fully enclosed back cover is integrated into a whole, and the heat dissipation structure design with thickened fins on the back is designed to prevent dust and shock, effectively dissipate heat and operate quietly.
2. Aluminum alloy die casting process, high hardness, excellent texture, adapt to harsh environment.
3. The flat front panel can effectively prevent water splashing or dust from entering the machine.
It has the ability of 24-hour power supply, 24-hour power supply, 24-hour power supply.
5. Fully enclosed heat dissipation effect, suitable for - 10 ℃ low temperature to 60 ℃ high temperature environment, keep the mainboard running for a long time, protect the life and stability of the whole machine.
6. Precise touch, more sensitive response, no dead corner touch, high resolution, no blind spot experience is superior.
7. Touch the industrial level all-in-one machine, mainly in the industrial field, compatible with the configuration software of human-computer interface.
8. It has the ability of 365 days * 24 hours of stable operation, and can operate stably under unstable conditions.
9. It supports dual screen output. By connecting VGA interface and HDMI HD interface, it can realize dual screen output and support synchronous / asynchronous display.
10. Support the setting of power on and power on function. It also supports timing startup and remote network wake-up.
Brand:LIQUISE Screen specifications: 15 inches Screen ratio: 4:3 Resolution: 1024x 768 Backlight type: LED Motherboard: J1800/J1900 industrial control motherboard | Memory: 2G/4G/8G (upgradeable) Interface: VGA x 1HDMIx 1USBx4L AN Power connector x 1 Network card: Built-in Gigabit network card Graphics: Integrated HD
|
Common system: win7/win10/Android Normal power: ≤40W Working temperature: -10C~+60C Environmental humidity: 20%~70% Product certification: CE, FCC, CCC Applicable industries: Industry, Commerce

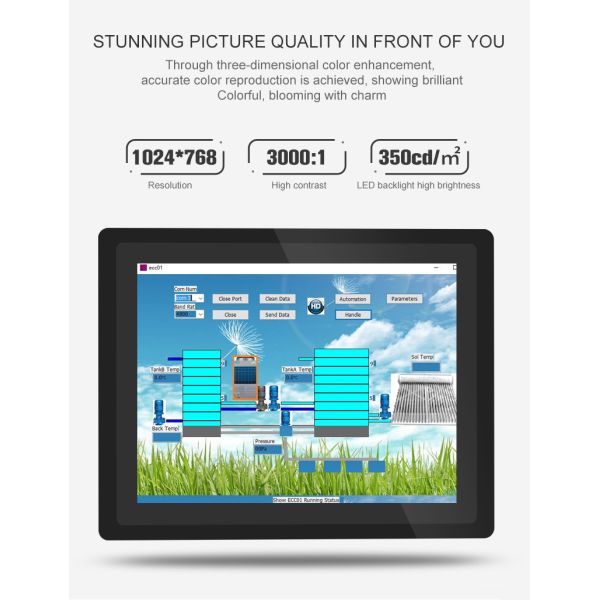

| Touch screen: Resistive/Capacitive Response time: 5ms Display brightness: 350cd/m2 Contrast ratio: 1000:1 Color depth: 16.7M CPU: Celeron dual-core 2.41GHz/quad-core 1.99GHz
|
Power supply: External power supply 12V Special structure: Fanless dustproof structure Aluminum alloy cooling back cover Can be installed and built-in: Wireless wifi, 4G, Bluetooth(optional) Viewable size: 304mm x 228mm Shell size: 378mm x 297mm
| Bracket hole: 75mm x 75mm Appearance material: Metal cold rolled sheet Bracket: Wall Hanger / Die-casting desktop bracket (optional) |
Capacitor size Shell width(mm)
Shell heigh(mm)
Thickness(mm)
Screen width(mm)
Screen heigh(mm)
Screen Resolution (mm) Wall hole position (mm) Screen width:height
| 8.4inches 236
190
51.5
170.4
127.8
800*600
100*100
4:3
| 10.4 inches 283
225.2
56.2
213.1
160.3
1024*768
100*100
4:3
| 12.1 inches 317
258
56.2
246
184.5
1024*768
100*100
4:3
| 15 inches 378
297
56.2
304
228
1024*768
100*100
4:3
| 17 inches 413
342
56.2
338.92
271.34
1280*1024
100*100
4:3
| 19 inches 454
375.5
62.7
377.3
302.1
1280*1024
100*100
4:3
| 22 inches 559
349.3
65.5
477.6
261.1
1920*1080
100*100
16:9
|
