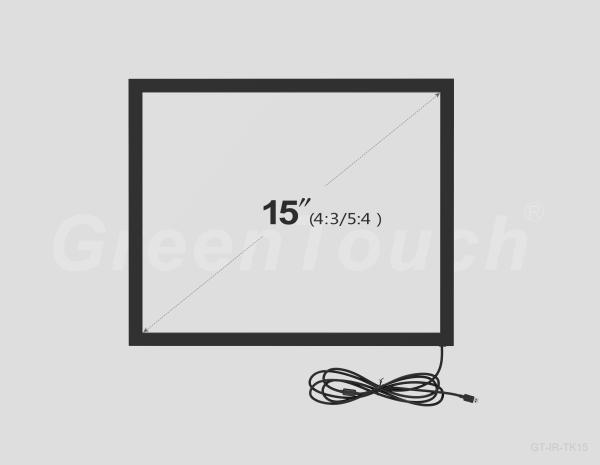

15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass
15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass
15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass
15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass
15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass
15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass
15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass
15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass
15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass
15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass
15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass
15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass
Specifications
Brand Name :
GreenTouch
Model Number :
GT-IR-TK15.0-1
Certification :
CE, FCC, ROHS
Place of Origin :
China
MOQ :
50
Payment Terms :
T/T, MoneyGram
Supply Ability :
10,000pcs per month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
carton
Screen Ratio :
4:3/5:4
Minimum touch object :
5mm
Scan frequency :
200Hz
Exterior color :
black
Interpolation resolution :
4096*4096
Response speed :
≤15ms
Touch accuracy :
More than 90% of the touch area is ±2mm
Input :
Fingers, touch pens, etc.
Description

Standard Black 15 Inch Infrared Touch Frame CE , FCC , ROHS Certification


Description:

  1. 10 multi touch point

  2. 4096x4096 Resolution, USB Interface

  3. Withstands severe environments

  4. Stable, no-drift calibration performance

  5. Material is tempered glass with high light transmittance

  6. Finger, gloved hand and touch pen activation

  7. Operable in various light conditions, indoor and outdoor

  8. Our products have passed CE, FCC, ROHS certification!15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass

Why to choose IR touch screen:
15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass

Technical Principle:

Infrared touch screen is to use a dense matrix of infra-red x, y directions to detect and locate the user's touch. Infrared touch screen installed in front of the monitor box outside a circuit board, circuit board arranged on four sides of the screen infrared led and an infrared receiver and corresponding anyway cross the infrared matrix.
When users touch the screen, fingers will be blocked anyway after the location for both infrared and therefore can judge the position of the touch points on the screen .it can detect essentially any input including a finger, gloved finger, stylus or pen.

15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass

Product Specification:

Frame material Aluminum alloy
Exterior color black
Glass Built-in 3mm tempered glass
Interpolation resolution 4096*4096
Response speed ≤15ms
Touch accuracy More than 90% of the touch area is ±2mm
Input Fingers, touch pens, etc.
Output Type Coordinate / output
Theoretical clicks Unlimited times
Minimum touch object 5mm
Interface Type USB

Electronic characteristics

Scanning frequency 200HZ
USB A-USB
USB-D+USB-D-
Power supply mode USB to take power
Power supply voltage DC+5V±5%
Working current <200mA

Environmental characteristics

Project Specification
Temperature range Operating temperature:-10 °C ~ 50 °C
Storage temperature:-20 °C ~ 60 °C
Relative humidity Operating humidity:10%~85% RH
Operating humidity:10%~90% RH
Light resistance Have certain light resistance

Software features

Project Specification
Touch/type Single touch/2 point touch
Touch supported operating system Windows7//8/10/Windows XP/Vista/Linux/Android

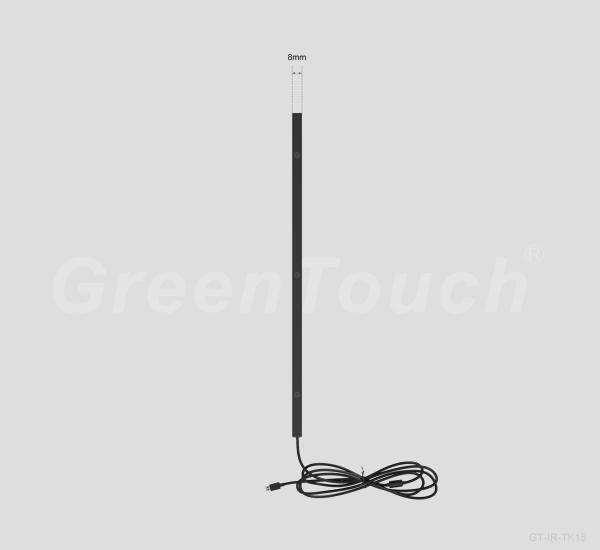

Procudt image:

15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass

Application:

​15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass


Packing & Shipping & Payment:

15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass

About GreenTouch:

Shenzhen GreenTouch Technology Co., Ltd. is a professional manufacturer of product.Our company specializes in R&D, manufacture and marketing of high-grade touch screen and value-added touch machine. Our company has our own brand—GreenTouch and provides customers with touch products including SAW touch screen, IR touch screen, four-wire touch screen, five-wire touch screen,various touch screen monitors and touch all in one PC TV. GreenTouch has automatic production lines and the sealed dust-free workshops and has been certified to ISO9001Quality Management System and ISO14001 Environmental Management System. The products are inspected in strict accordance with the quality management system. Quality management becomes an essential part of operation.Our products have been certified to CE, FCC, ETL, ROHS andUL. The objective of GreenTouch is to become the most reliable supplier oftouch screen, high value-added and special touch products and touch solutions in the world.

15 Inches Infrared Touch Frame TK Series 10 Point Ir Transparent Glass
