1024 X 768 Resolution 15 Inch Open Frame Monitor For CNC Machine With Input VGA / DVI
1024 X 768 Resolution 15 Inch Open Frame Monitor For CNC Machine With Input VGA / DVI
Specifications
Brand Name :
GreenTouch
Certification :
CE, FCC, ROHS
Place of Origin :
China
MOQ :
1
Payment Terms :
MoneyGram, Western Union, T/T, D/P
Supply Ability :
3,000pcs per month
Delivery Time :
10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Model Number :
GT-TM-1505A
Touch Interface :
RS232/USB2.0
Ratio :
4:3
Resolution :
1024 x 768
Color Pixel :
16.7M
Contrast ratio (standard) :
700:1
Video input frequency :
Horizontal:31.5-60.2kHz;Vertical:56.3-75Hz
Video Interface :
VGA,DVI
Description

Open Frame Scan Frequency 15 Inch Touch Screen Monitor Contrast Ratio And Brightness

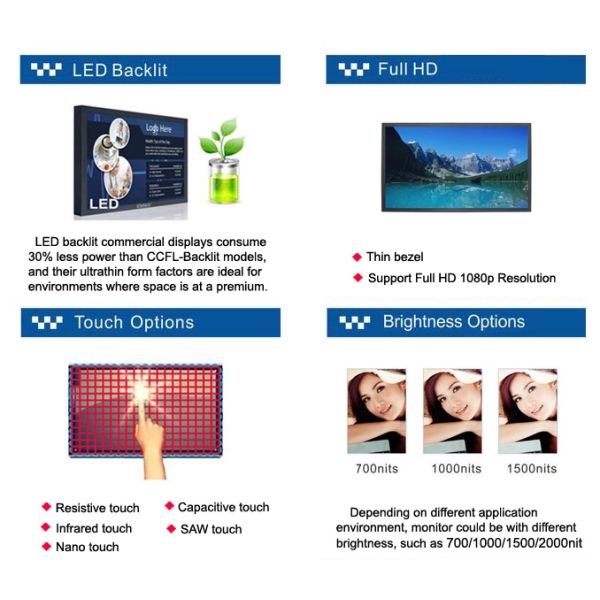

Main features

  • Meet NEMA 3 and IEC IP65 waterproof standard

  • High quality panel with high brightness,high contrast ratio and broad viewing angle

  • Multiple mounting options including VESA mount, horizontal or vertical bracket-mount

  • Superior viewing angles, contrast ratio and brightness

  • Our products have passed CE, FCC, RoHS certification!

​Competitive Advantage:

GreenTouch's Open Frame Monitor is designed for commercial and industrial applications

where the this open frame screen goes into a larger unit that already has a bezel or other

framing.products have passed CE, FCC certification.It can accept a multitude of common

video inputs including multiple VGA and DVI. High Performance and Reliability.
1024 X 768 Resolution 15 Inch Open Frame Monitor For CNC Machine With Input VGA / DVI1024 X 768 Resolution 15 Inch Open Frame Monitor For CNC Machine With Input VGA / DVI

Produt Specification:
Part Number

4 wire resistive:GT-TM-1505A-4R

5 wire resistive:GT-TM-1505A-5R

Projected capacitive:GT-TM-1505A-CT

Infrared:GT-TM-1505A-IR
Touch Interface RS232/USB2.0
Touch Technology&Touch Point

4 wire resistive:single touch

5 wire resistive:single touch

Projected capacitive:10-point touch

Infrared:10 point touch(optional)
Diagonal 15"Diagonal,Ratio4:3,Active matrix TFT LCD, LED backlight
Display screen (OSD)

Visit via turn on/off button in OSD. Control unit:menu,up,down,exit,power OSD:contrast

ratio,brightness,horizontal/vertical,RGB,time,phase,select default value,language

(English,Germany, Spanish, Japanese,French),OSD validate/invalidate,power,OSD men
Screen Ratio 4:3
Acitive Area (mm) 304.1mm x 228.1mm
Resolution 1024 x 768
Other resolutions 1024 x 768 ; 800 x 600; 720 x 400 ;720 x 350; 640 x 480,60 Hz;
Viewing angle

Horizontal (left / right): ± 80 ° or total 160 °

Vertical (up / down): ± 70 ° or a total of 140 °
Color Pixel 16.7M
Brightness(Typ.)

LCD panel:450 nits 4-wire resistive/5-wire resistive:400nits(Typ.)

Projected Capacitive/Infrared360nits(Typ.)
Response time (standard) 16ms
Contrast ratio (standard) 700:1
Video input frequency Horizontal:31.5-60.2kHz;Vertical:56.3-75Hz
Video Interface VGA,DVI
Power Externel DC-Optional adapter
Power Input Interface

INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC)-Type: DC cartridge

receptacle;Cartridge ID:5.5mm(±0.3mm);Needle OD:2.0mm(+0.0-0.1mm);

Cartridge depth:8(±0.3mm).External DC,input voltage DC:12V

Power connector(on power adapter)-Type:DC cartridge Plug:Cartridge

OD:5.5mm(±0.1mm)；Needle Inner Diameter:2.1mm(±0.1mm);

Cartridge Length:9.5mm(±0.5mm)
Input Voltage 12VDC+/-5%
Power Consumption(Typ.)

Monitor+Adapter 2230V/50Hz

Working:15W

Sleep:1.5W

Turn-off:0.5W
Dimensions

4-wire/5-wire resistive touch:329.5mm X256.5mmX48mm

Projected capacitve touch:258mmX282.5mmX48mm

Infrared Touch:342mmX266mmX53mm
Dimensions for Shipping 510mmX435mmX125mm
Net Weight 3.6kg
Gross Weight 5.1kg
Working Temperature 0℃ to 40℃/32°F to 104°F
Storage Temperature -20℃ to 60℃,-4°F to 140°F
Humidity

Working:20% to 80%

Stocking:10% to 95%
Tightness

Touch panel seal to bezel

LCD Touch panel seal to LCD
MTBF 50000 hours
Warranty 1 year
Institute Certificates UL,A1:B30cUL(Recognized),FCC,CE,China RoHS

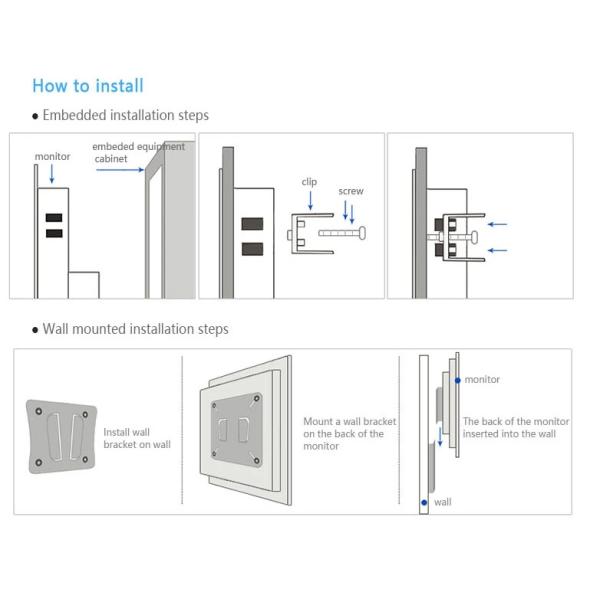

Installation Methods 100mm or 75mm VESA Install:Open frame installation kit
Content in package

Product data sheet With bezel:L-shape install kit and W-shape crews

Quality Cetificates Warranty card
Opeional/External devices

DVI cable

VGA cable

Touch USB cable

North America Power cable

Europe&South Korea Power cable

Britain Power cable

China Power cable

Taiwan Power cable

Japan Power cable

Argentina Power cable
pplications:


Special for desktop public service inquiry system,POS systems, hotel reception, self-service,

ATM,industrial manufacturing, Hospital information center, information systems and other

interactive touch application design .
1024 X 768 Resolution 15 Inch Open Frame Monitor For CNC Machine With Input VGA / DVI

Packing and shipping :

1024 X 768 Resolution 15 Inch Open Frame Monitor For CNC Machine With Input VGA / DVI1024 X 768 Resolution 15 Inch Open Frame Monitor For CNC Machine With Input VGA / DVI

Certificate:

1024 X 768 Resolution 15 Inch Open Frame Monitor For CNC Machine With Input VGA / DVI

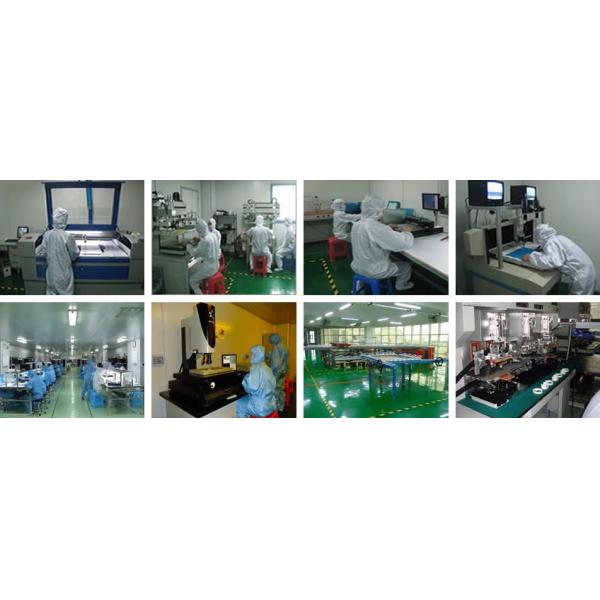

About GreenTouch:

Shenzhen GreenTouch Technology Co., Ltd. is a professional manufacturer of product.Our company

specializes in R&D, manufacture and marketing of high-grade touch screen and value-added touch machine.

Our company has our own brand—GreenTouch and provides customers with touch products including SAW

touch screen, IR touch screen, four-wire touch screen, five-wire touch screen,various touch screen monitors

and touch all in one PC TV. GreenTouch has automatic production lines and the sealed dust-free workshops

and has been certified to ISO9001Quality Management System and ISO14001 Environmental Management

System. The products are inspected in strict accordance with the quality management system. Quality

management becomes an essential part of operation.Our products have been certified to CE, FCC, ETL, ROHS

andUL. The objective of GreenTouch is to become the most reliable supplier oftouch screen, high value-added

and special touch products and touch solutions in the world.

1024 X 768 Resolution 15 Inch Open Frame Monitor For CNC Machine With Input VGA / DVI
