Case/ frame color

Black / Silver color

Display type

Active matrix TFT LCD, LED backlight

The diagonal dimension

17.0 "diagonal

Aspect ratio

5:4

Active Area Dimensions

337.92mm(H) x 270.34mm(V)

The display size

385mm(W) x315mm(H),Thickness: 47 mm)

Resolution(pixel)

1280 x 1024 @ 60Hz

Other supported resolutions(pixel)

1024 x 768 ; 800 x 600; 720 x 400 ;720 x 350; 640 x 480, 60 Hz;65Hz;75Hz

Display Colors

16.7M

Brightness (Standard)

250 cd/m2

Response time (standard)

5 ms

View Angle(from center)

L/R:85/85;U/D:80/80 (Typ.)(CR≥10)

Contrast ratio (standard)

1000: 1(Typ.)

Input video formats

Analog VGA and digital DVI (optional HDM I)

Input Video Signal Connector

Female head DE - 15 connector, female head DVI - D, Dual - Link connector, female head HDMI connector

Sweep frequency

Horizontal: 31.5 - 60.2 kHz; vertical: 56.3 - 75 Hz

Power

External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(± 0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (± 0.3 mm);

Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD: 5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm)

Power consumption (standard)

Display only: 13.5W(Typ.)

Temperature

Operating: 0°C to 40°C; Storage: -20°C to 60°C

Humidity

Operating: 20% to 80% (no condensation); Storage: 10% to 90% (non- condensing)

MTBF

50,000 hours

Weight (approx.)

Net weight: 4 kg(Typ.); Shipping: (5.5 kg (reference)

Warranty

1 year

OSD

Digital OSD

User Controls

OSD Button: Menu, Up, Down, Select, Power; OSD: Contrast, Brightness, Horizontal / Vertical Bits Clock, phase, call default, language (English, German, Spanish, Japanese,French); OSD Fail / Active: Power, OSD menu

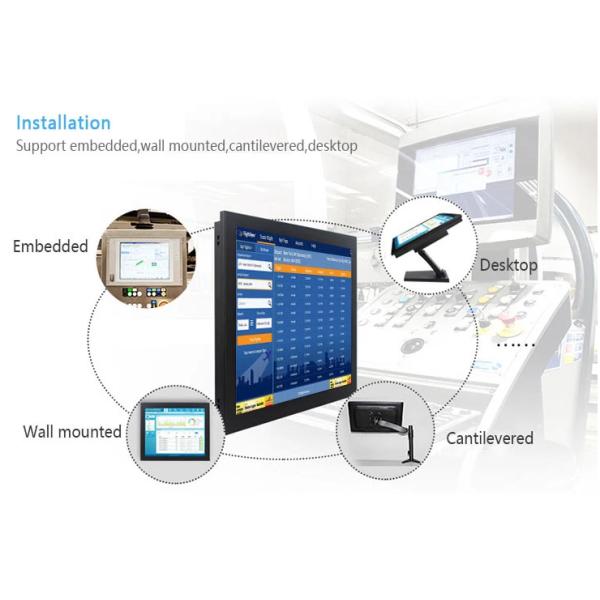

Mounting options

100mm or 75mm VESA mounting,open bracket mounting

Agency Approvals

UL,cUL (Recognized), FCC, CE,CCC, China RoHS CQC
