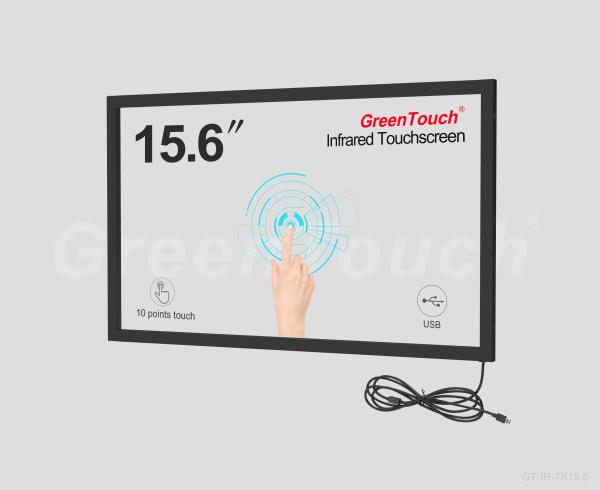

15.6 Inch Infrared Touch Frame TK Series Multi Touch Points USB Connect
15.6 Inch Infrared Touch Frame TK Series Multi Touch Points USB Connect
15.6 Inch Infrared Touch Frame TK Series Multi Touch Points USB Connect
15.6 Inch Infrared Touch Frame TK Series Multi Touch Points USB Connect
Specifications
Brand Name :
GreenTouch
Model Number :
GT-IR-TK15.6-1
Certification :
CE, FCC, ROHS
Place of Origin :
China
MOQ :
50
Payment Terms :
T/T, MoneyGram
Supply Ability :
10,000pcs per month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
carton
Screen Ratio :
16:10
Minimum touch object :
5mm
Scan frequency :
200Hz
Frame material :
Aluminum alloy
Exterior color :
Black
Interpolation resolution :
4096*4096
Response speed :
≤15ms
Description

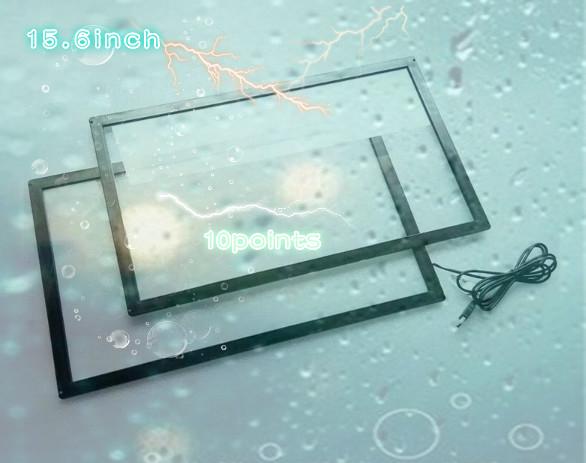

Standard Black 15.6 Inch Infrared Touch Frame CE , FCC , ROHS Certification

Our ir touch frame has advanced design and professional engineering, it is interactive display which covers all over the screen

  •  It's multi touch function can perform up to 10 points.
  • It is water proof and dust proof,so it has strong environmental adaptability.
  • It can be applied to many screen monitor such as tv, pad.
  • It has rohs/ce certification

15.6 Inch Infrared Touch Frame TK Series Multi Touch Points USB Connect
15.6 Inch Infrared Touch Frame TK Series Multi Touch Points USB Connect15.6 Inch Infrared Touch Frame TK Series Multi Touch Points USB Connect15.6 Inch Infrared Touch Frame TK Series Multi Touch Points USB Connect
Product Model number

Model number Ratio Outline(mm) Active Area(mm) Thickness(mm) Touch point
GT-IR-TK15.6-1 16:10 388.5 * 237.5 346.5*195.5 8.0 10/16/20

Product Specification:

Frame material Aluminum alloy
Exterior color black
Glass Built-in 3mm tempered glass
Interpolation resolution 4096*4096
Response speed ≤15ms
Touch accuracy More than 90% of the touch area is ±2mm
Input Fingers, touch pens, etc.
Output Type Coordinate / output
Theoretical clicks Unlimited times
Minimum touch object 5mm
Interface Type USB

Electronic characteristics

Scanning frequency 200HZ
USB A-USB
USB-D+USB-D-
Power supply mode USB to take power
Power supply voltage DC+5V±5%
Working current <200mA

Environmental characteristics

Project Specification
Temperature range Operating temperature:-10 °C ~ 50 °C
Storage temperature:-20 °C ~ 60 °C
Relative humidity Operating humidity:10%~85% RH
Operating humidity:10%~90% RH
Light resistance Have certain light resistance

Software features

Project Specification
Touch/type Single touch/2 point touch
Touch supported operating system Windows7//8/10/Windows XP/Vista/Linux/Android

Application:

15.6 Inch Infrared Touch Frame TK Series Multi Touch Points USB Connect

Technical Principle:

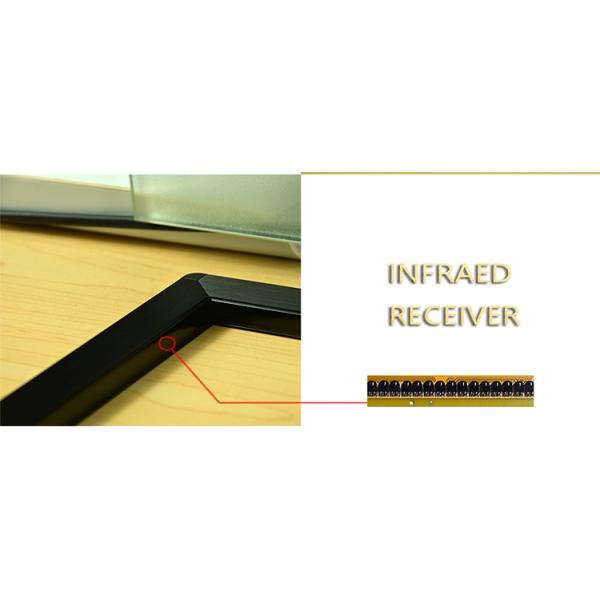

Infrared touch screen is to use a dense matrix of infra-red x, y directions to detect and locate the user's touch. Infrared touch screen installed in front of the monitor box outside a circuit board, circuit board arranged on four sides of the screen infrared led and an infrared receiver and corresponding anyway cross the infrared matrix.
When users touch the screen, fingers will be blocked anyway after the location for both infrared and therefore can judge the position of the touch points on the screen .it can detect essentially any input including a finger, gloved finger, stylus or pen.
