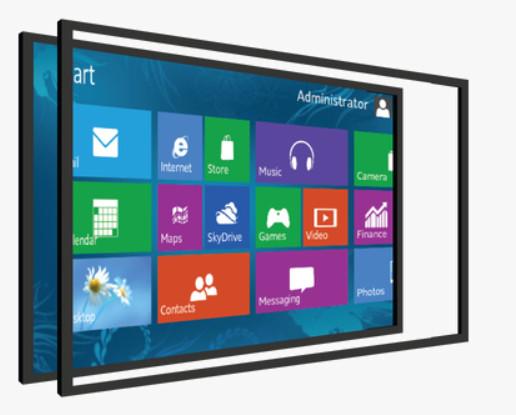

80 Inch Ir Multi Touch Frame For TV / Monitor Screen , Great Performance
80 Inch Ir Multi Touch Frame For TV / Monitor Screen , Great Performance
80 Inch Ir Multi Touch Frame For TV / Monitor Screen , Great Performance
80 Inch Ir Multi Touch Frame For TV / Monitor Screen , Great Performance
Specifications
Brand Name :
GreenTouch
Model Number :
GT-IR-TＢ80.0-1
Certification :
CE, FCC, ROHS
Place of Origin :
China
MOQ :
50
Payment Terms :
T/T, MoneyGram
Supply Ability :
10,000pcs per month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
carton
Screen Ratio :
16:9
Communication :
USB 2.0 Full Speed
Average Current :
≤200mA
Touch Screen Size :
80"
Luminous Transmission :
>92%(100% with no glass)
Touch Refresh Rate :
≥ 110Hz
Working Voltage :
DC 5.0V±5%
Power Cunsumption :
≤ 1.0W
LED Lifetime :
60000hours
Description

Standard Black 80 Inch Infrared Touch Frame CE , FCC , ROHS Certification

Product Model number
Model number Ratio Outline(mm) Active Area(mm) Thickness(mm) Touch point
GT-IR-TB80.0-1 16:9 1814.6*1039.7 1773.2*998.3 16.0 16

Main specification

Touch Screen Size 80"
Touch Activation Force No pressure required
Luminous Transmission >92%(100% with no glass)
Reported Touch Resolution Without Driver: 32768*32768
Touch Response Time(Multi touch) 10-15ms
Touch Response Time(One touch) 7ms
Minimum Recognition Point Size 4mm*4mm
Touch Object Size Recognition Yes
Interface Socket type USB cable 1.5 m, socket type 5P

Electrical Specification

Touch Refresh Rate ≥ 110Hz
Communication USB 2.0 Full Speed
PowerSupply Mode USB*1
Working Voltage DC 5.0V±5%
Average Current ≤200mA
Power Cunsumption ≤ 1.0W
LED Lifetime 60000hours
Fault-tolerant Able to work if less than 10% non-consecutive sensors are damaged

Environmental Specification

Humidity Up to 90% RH from 0°C to +40°C, non-condensing
Temperature Range Working temperature:-10℃～50℃
Storage temperature:-20℃～60℃
ESD EN 6100-4-2 2008:3 level.4KV contact discharge and 8KV air discharge
Anti-light Interference Excellent

Software Specification

Firmware Upgrade USB Upgrade: Windows 8,Windows 7
Support OS(Multi touch) Windows10,Windows8,Windows7,Andriod
Support OS (One touch) WindowsXP,MacOS.Linux

80 Inch Ir Multi Touch Frame For TV / Monitor Screen , Great Performance80 Inch Ir Multi Touch Frame For TV / Monitor Screen , Great Performance80 Inch Ir Multi Touch Frame For TV / Monitor Screen , Great Performance80 Inch Ir Multi Touch Frame For TV / Monitor Screen , Great Performance80 Inch Ir Multi Touch Frame For TV / Monitor Screen , Great Performance80 Inch Ir Multi Touch Frame For TV / Monitor Screen , Great Performance

Application:

  • TV
  • PC
  • Gaming device
  • Exhibition
  • Education training
  • Pubic query machine
  • Self-service machine
  • Map directory
  • Any interactive machine
  • And more

80 Inch Ir Multi Touch Frame For TV / Monitor Screen , Great Performance
80 Inch Ir Multi Touch Frame For TV / Monitor Screen , Great Performance

Packing and shipping:

80 Inch Ir Multi Touch Frame For TV / Monitor Screen , Great Performance80 Inch Ir Multi Touch Frame For TV / Monitor Screen , Great Performance
